Product Description

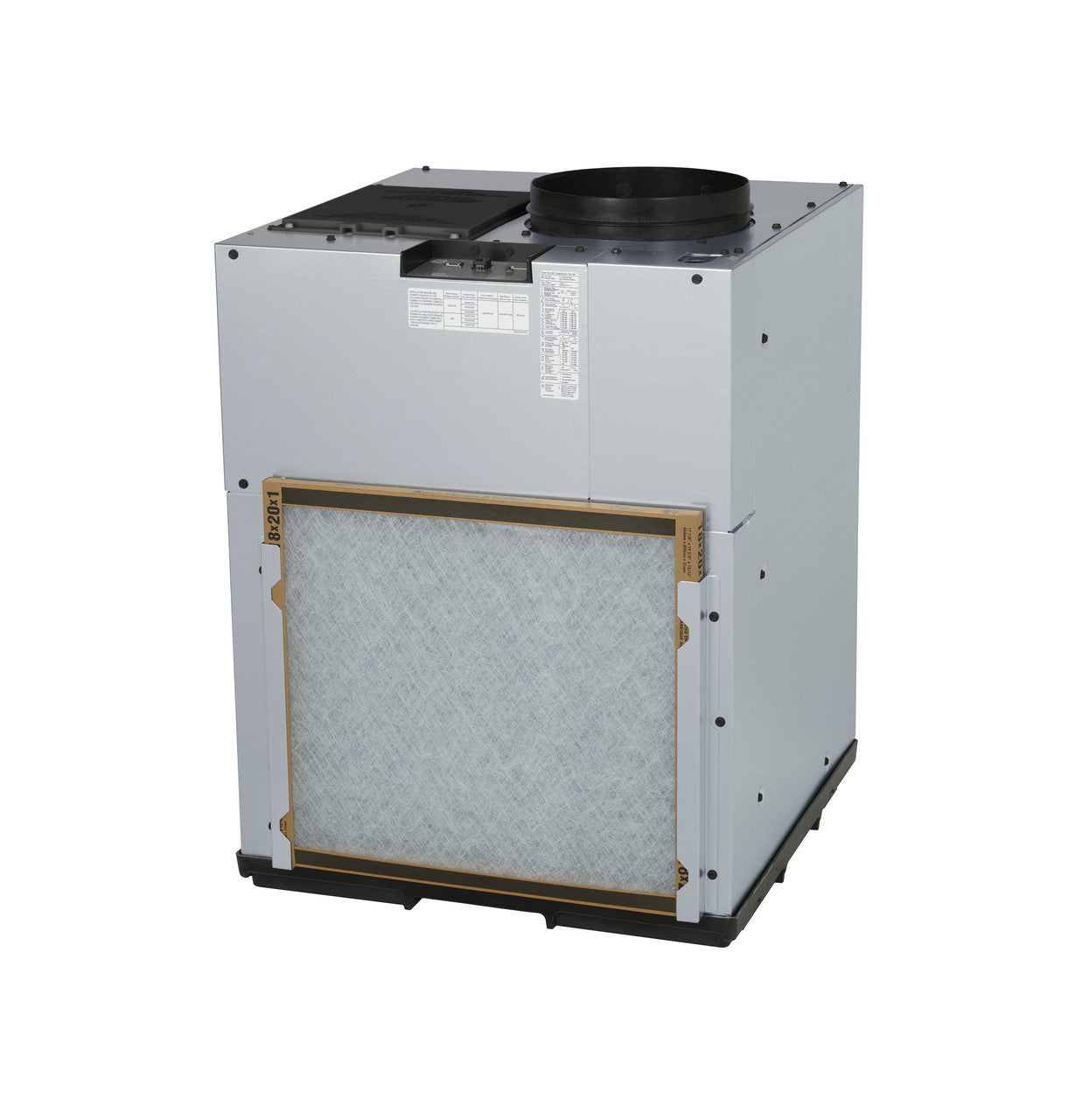

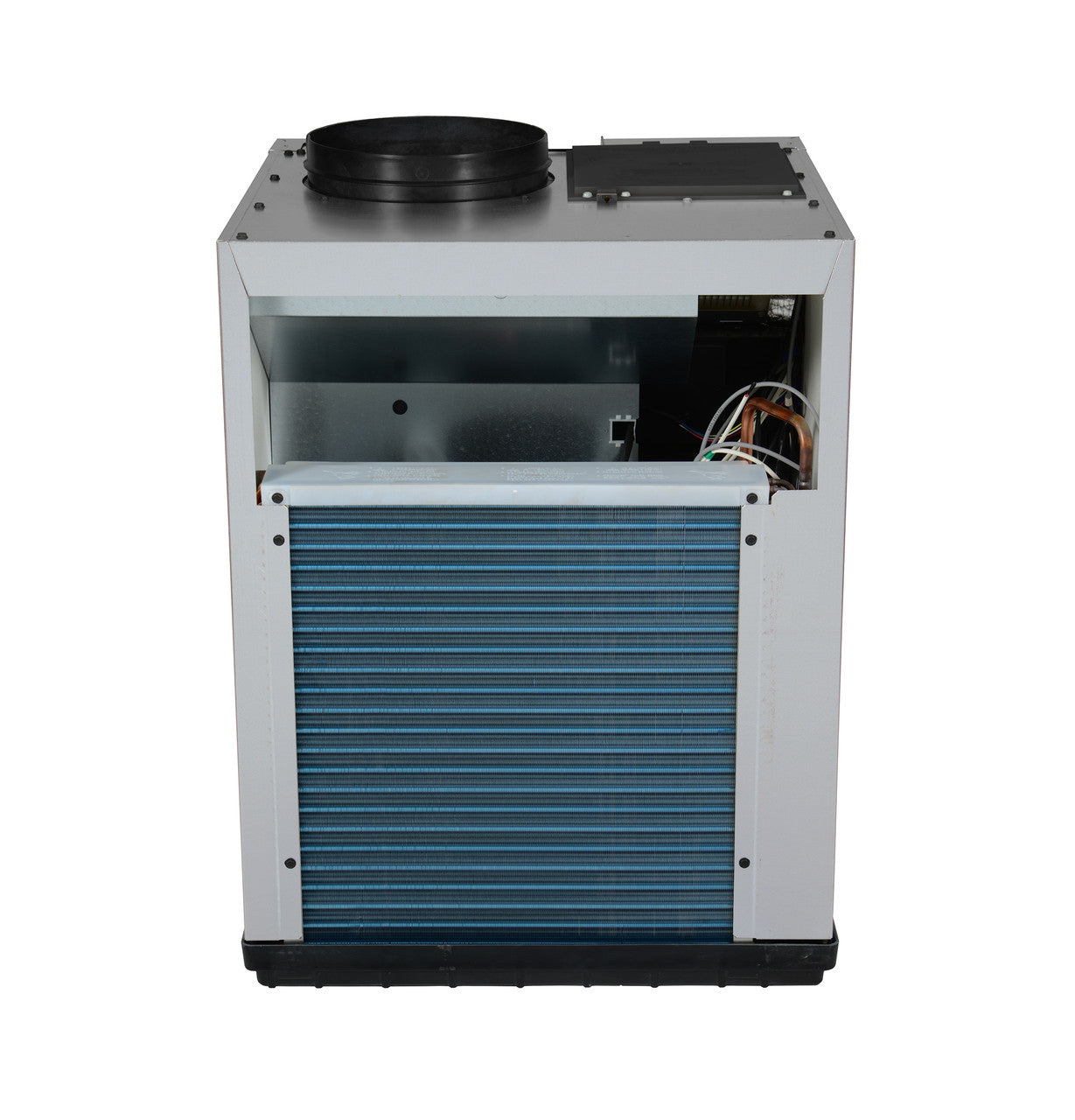

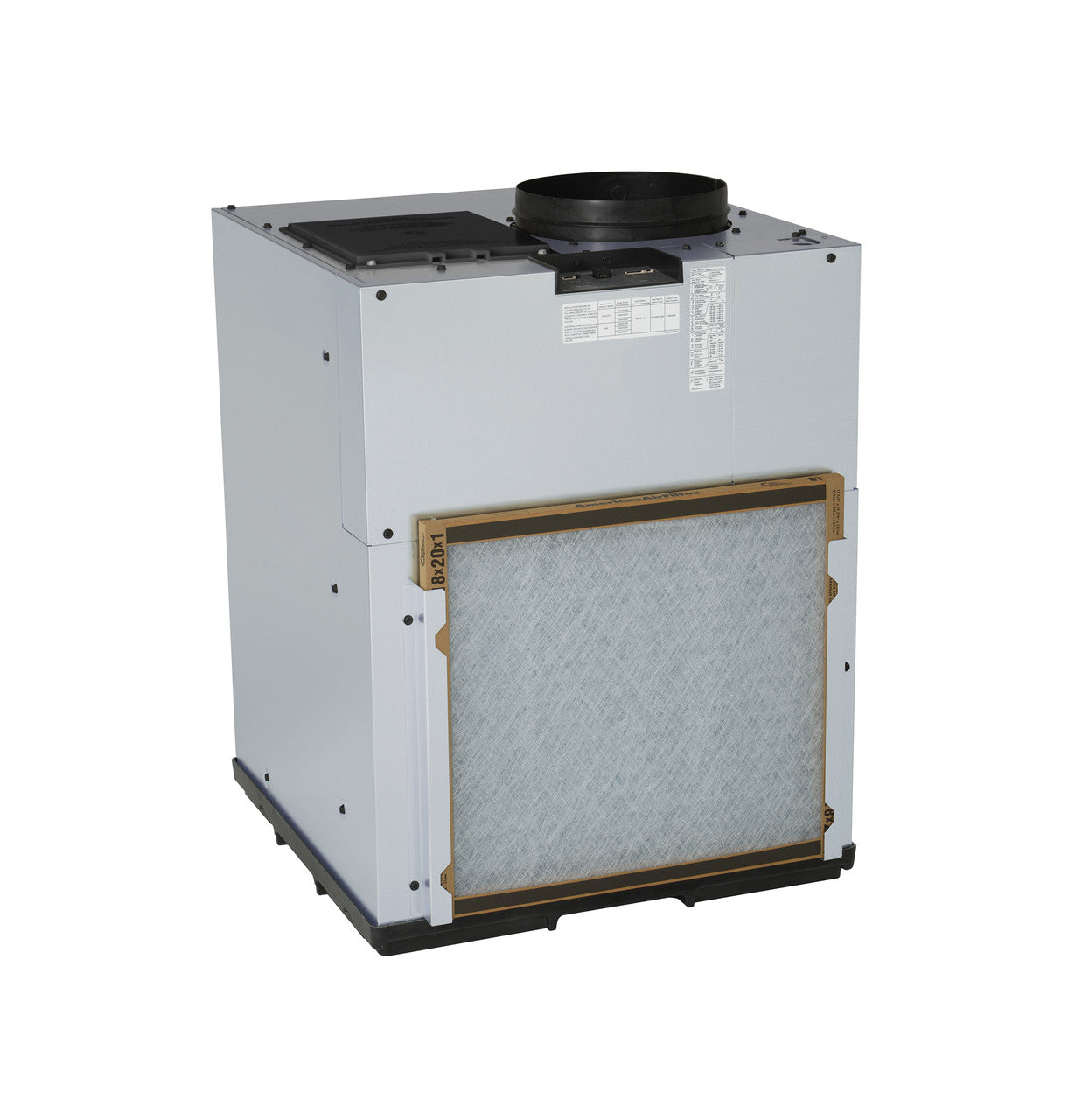

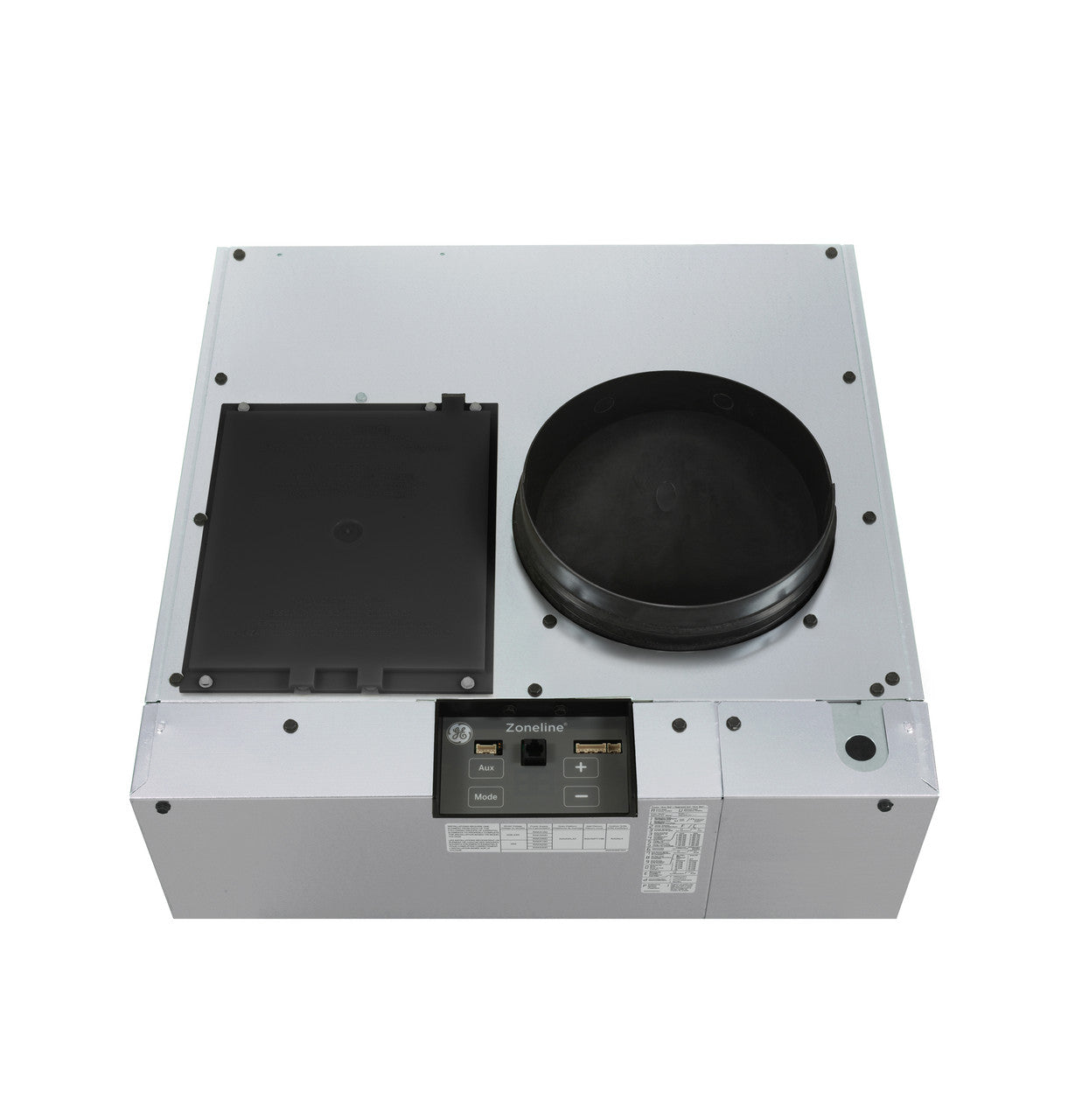

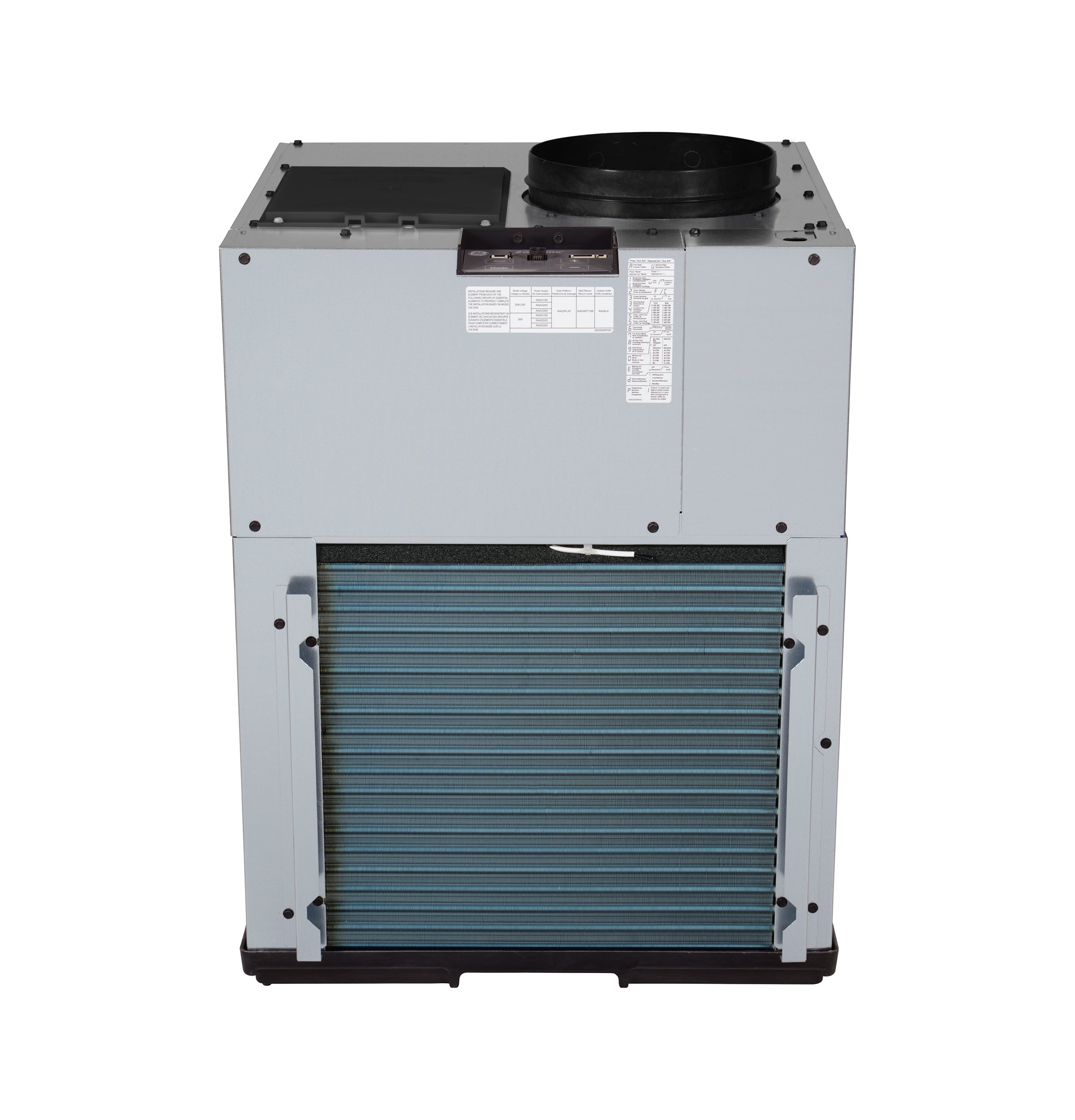

The GENERAL ELECTRIC AZ9VH12DAC is a Zoneline Heat Pump, a single package vertical air conditioner operating at 230-208 Volts. This unit features a heat pump heating system and R410A refrigerant. It offers a cooling capacity of up to 16200 BTUH and a heating capacity of 11500 BTUH, with a SEER2 rating of 15.9 and HSPF2 rating of 7.5. Designed for efficient temperature control, it includes onboard diagnostics and SmartHQ WiFi capability for remote monitoring.
- Insta-Platform™: Eliminates the need for on-site customized platform construction.
- Self-Contained Drainage System: Allows easy installation and simple chassis removal while leaving plumbing intact.
- Onboard Diagnostics: Electronic controls provide clear and fast diagnostics data and fault codes for quick resolution.
Product Highlights
This vertical air conditioner features Insta-Platform for easy installation, a self-contained drainage system, and SmartHQ WiFi capability for remote monitoring, ensuring efficient and quiet operation.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZ9VH12DAC
-
Country of Origin: America
Technical Specifications
-
Accessories: Outdoor Grille: RAVAL3
-
Accessories: Plenum: RAVWPT9 or RAVWPT15
-
Accessories: Other: RAVDPLAT, RAK3XXD Series
-
Color: Gray
-
Indoor Fan CFM (High): 465 CFM
-
Indoor Fan CFM (Low): 380 CFM
-
Cooling Capacity (BTUH Max): 16200 BTUH
-
Cooling Capacity (BTUH Min): 5200 BTUH
-
Cooling EER2: 11.6
-
Dehumidification (pts/hr): 3.16 pts/hr
-
Heating Capacity (Reverse Cycle BTUH): 11500 BTUH
-
Heating COP2: 3.5
-
Central Desk Control Compatibility: Yes
-
Corrosion Treated: Yes
-
Fan Speed Selections: 2 Cooling
-
Freeze Sentinel: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating System: Heat Pump
-
HSPF2 Rating: 7.5
-
Power Connection Kit: RAK3XXD Series
-
Product Type: Vertical Air Conditioners
-
Refrigerant Type: R410A
-
Remote Thermostat: RAK190V
-
Compressor Type: Rotary
-
SEER2 Rating: 15.9
-
Sensible Heat Ratio: 0.75
-
Cooling Amperage: 4.7 A
-
Cooling Wattage: 970 W
-
Heating Amperage (Reverse Cycle): 4.4 A
-
Heating Wattage (Reverse Cycle): 230 W
-
Input Voltage: 208-230 V
-
Net Weight: 125 lb
-
Overall Depth: 24.125 in
-
Overall Height: 31.875 in
-
Overall Width: 23.625 in
-
Installation Type: Vertical
-
Nominal Cooling Capacity (BTU): 11700 BTU
-
Series: Zoneline
-
Plug Type: 6-15P
-
Energy Star Rated: No
-
Control Type: Digital
-
Remote Monitoring: Yes
-
WiFi Capability: Yes
-
Certifications: California Prop 65
-
ADA Compliant: No
-
Self-Aligning Lock-in-Place System: Yes
-
Reverse Cycle Defrost: Yes
-
Quick-Install Plenum: Yes
-
Onboard Diagnostics: Yes
-
Inverter Technology: Yes
-
Insta-Platform: Yes
-
Fast-Connect Plumbing: Yes
-
Corrosion Protection: Yes
-
Self-Contained Drainage System: Yes
-
SmartHQ WiFi Capability: Yes
-
Ultra-Quiet Operation: Yes
-
Application: Multi-Unit & Commercial Zoned Comfort
