Product Description

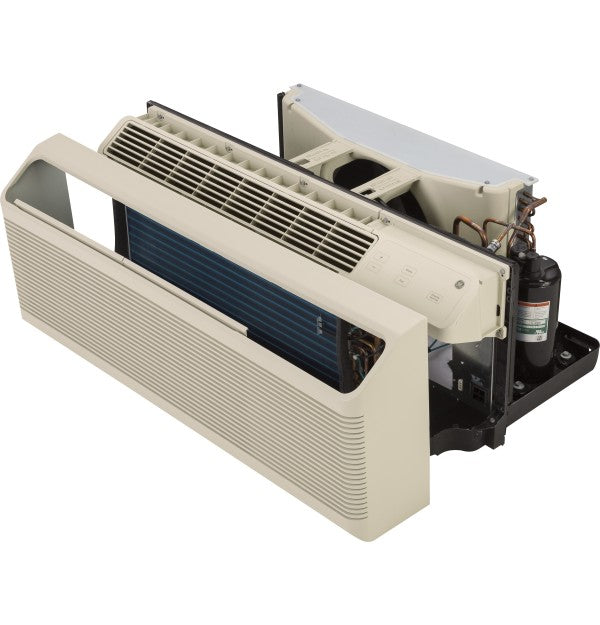

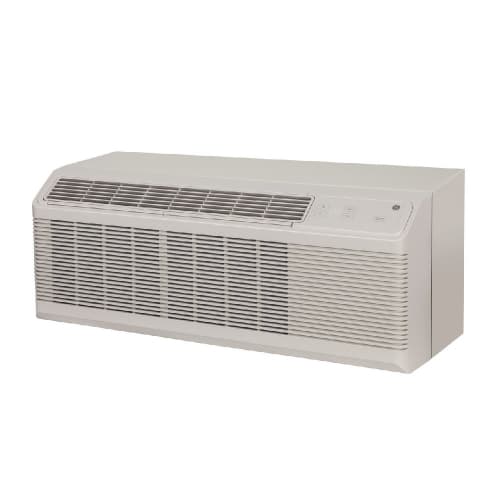

The General Electric AZ45E07DAB Zoneline Cooling and Electric Heat Unit is a 230/208 Volt system designed for efficient climate control. It provides 7,200/7,000 BTU cooling capacity with a 13.4 EER, and 1.7 pints/hour of dehumidification. Featuring electronic touch controls with an LED display, this unit ensures quiet operation through a baked-on mastic sound barrier, cross flow blower, and two DC fan motors. It utilizes R-410A refrigerant for effective cooling and heating.
- Offers both cooling and electric heat functionality for versatile climate control.
- Provides 7,200/7,000 BTU cooling capacity with a 13.4 EER for energy-efficient performance.

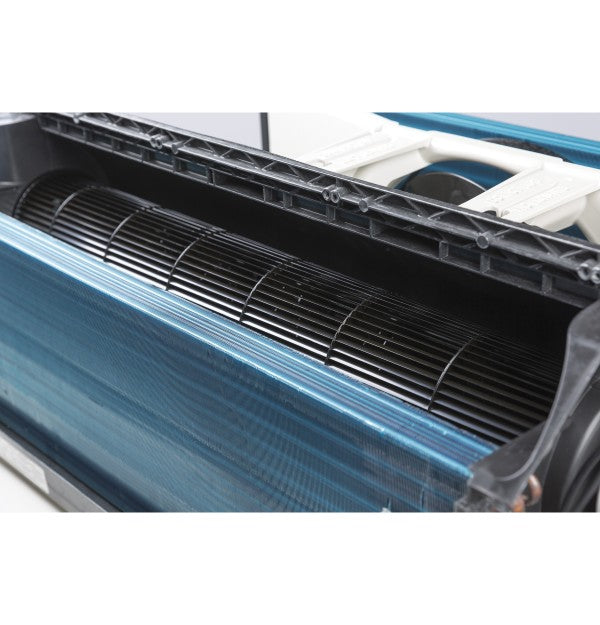

- Ensures quiet operation with a baked-on mastic sound barrier, cross flow blower, and dual DC fan motors.
Product Highlights
Features Heat & Freeze Sentinels, electronic temperature limiting, and built-in Wifi powered by SmartHQ™ for enhanced control and monitoring.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZ45E07DAB
-
Country of Origin: America
Technical Specifications
-
Manufacturer: GE Appliance
-
Model Number: AZ45E07DAB
-
Voltage: 230/208 Volt
-
Color: Gray
-
Indoor Fan CFM High: 348
-
Indoor Fan CFM Low: 233
-
Cooling BTUH Max: 7,200 Btu
-
Cooling BTUH Min: 7,000 Btu
-
Cooling EER: 13.4
-
Dehumidification: 1.7 pints/hour
-
Vent CFM (High Fan): 33
-
Chassis Type: Slide-In
-
Control Type: Coverless Backlit White LED Touch Controls
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor Quantity: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling, Hi/Low Heating, Hi/Low Fan Only
-
Filter Type: Rigid Frame, Slide-Out
-
Heat/Cool Function: Yes
-
Heating System: Electric Resistance
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 96
-
Product Type: Packaged Terminal Air Conditioner (PTAC)
-
Refrigerant Type: R410A
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 70%
-
Temperature Limiting: Electronic 7-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control, Vent Air Filter, Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control, Random Twist/Length Segment Tangential Blower, Weather Protected Electrical Components, "Sleep" Mode, Heat Sentinel, Freeze Sentinel, Automatic Indoor Frost Control, Universal Heaters, Auto Power Recovery, Remote Thermostat Compatibility, Central Desk Control Compatibility, Proportional - Integral ID Airflow
-
Cooling Amperes: 2.5/2.6
-
Cooling Amperes F.L.: 2.5/2.6
-
Cooling Amperes L.R.: 13.5
-
Cooling Watts: 535/520
-
Max Voltage: 230 V
-
Min Voltage: 208 V
-
Wall Sleeve Dimensions A: 21 inches
-
Wall Sleeve Dimensions B: 58 inches
-
Wall Sleeve Dimensions C: 42-1/4 inches
-
Wall Opening Minimum Height: 16-1/4 inches
-
Wall Opening Minimum Width: 42-1/4 inches
