Product Description

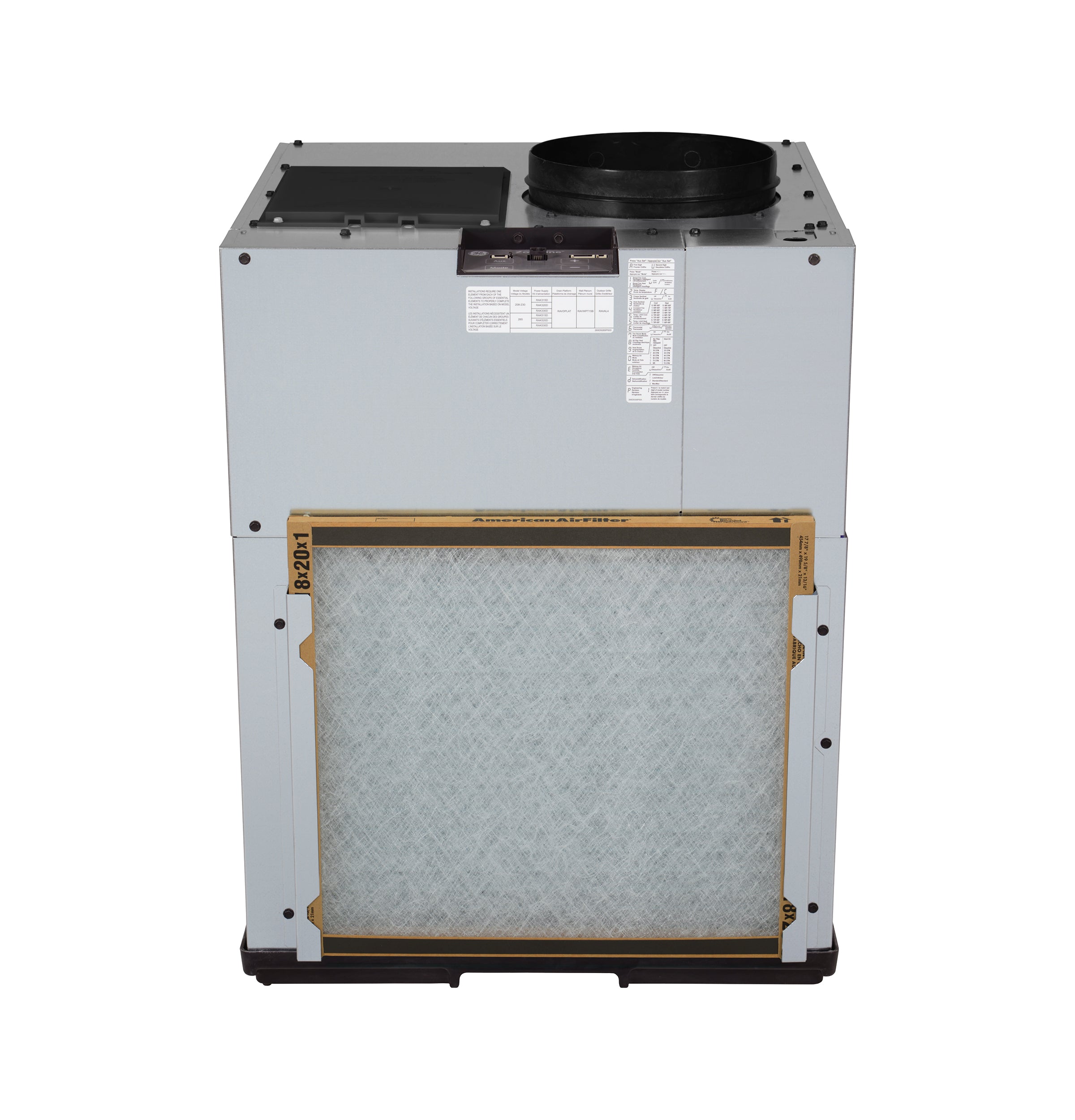

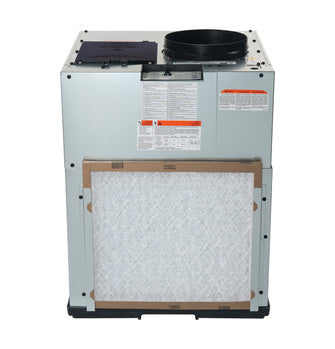

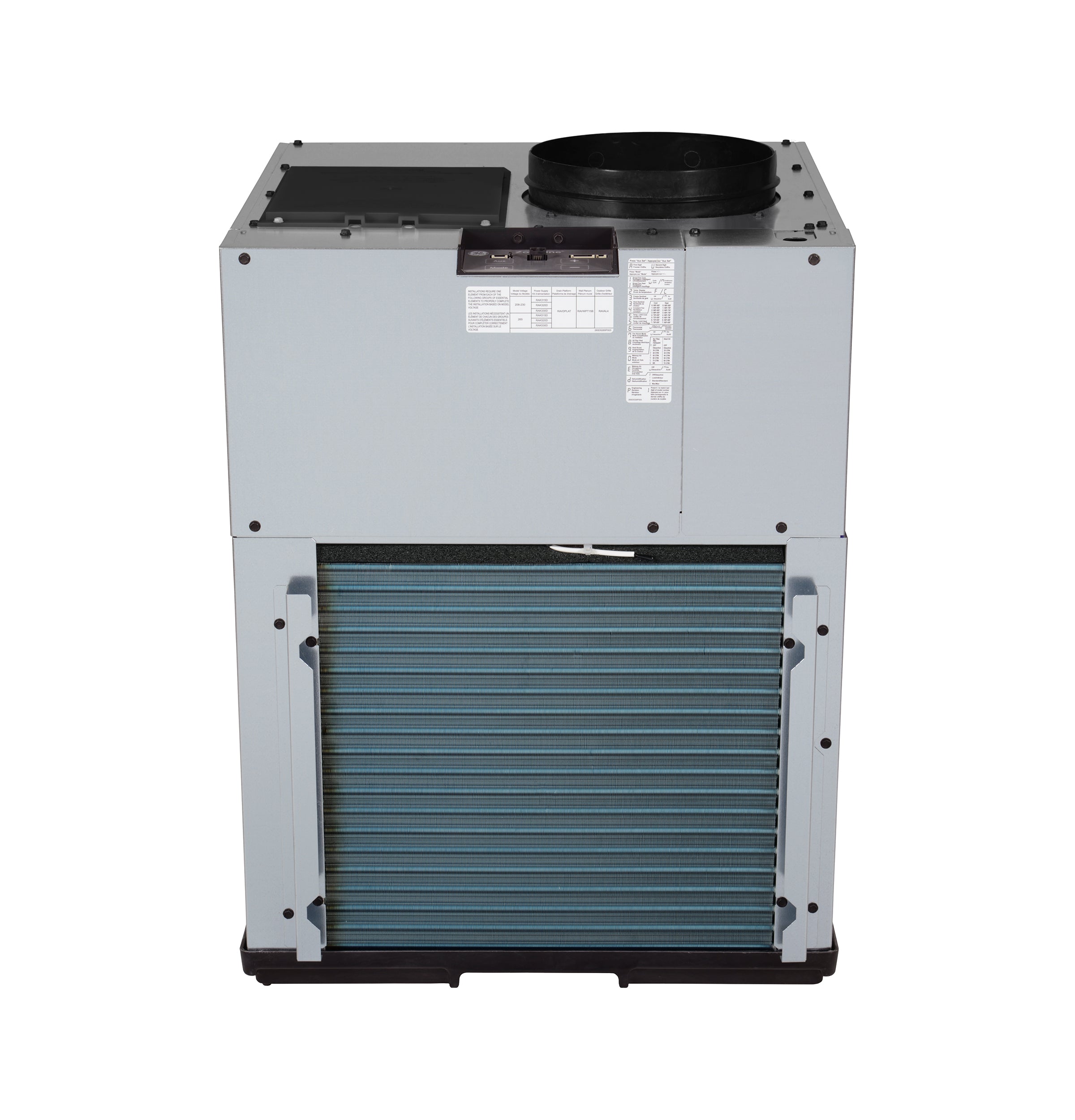

The GENERAL ELECTRIC AVVS12DCXWA Vertical Zoneline V11 Inverter Heat Pump operates on 208/230V. It features inverter technology for variable speed operation, providing shorter recovery time, improved efficiency, sound quality, and dehumidification. The unit is designed and assembled in America and uses R454B refrigerant.
- Designed & Assembled in America
- R454B Refrigerant
- Inverter Technology
Product Highlights
This heat pump offers reverse cycle defrost, quick installation with Insta-Platform, a self-contained drainage system, and SmartHQ WIFI capability.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AVVS12DCXWA
-
Country of Origin: US
Technical Specifications
-
Accessories Required for Installation: Insta-Platform™, Wall Plenum, Power Connection, Access panel / Return Air Grille, Thermostat, Outdoor Grille
-
Dehumidification (pts./hr.): 2.8 Nominal Cooling High Fan
-

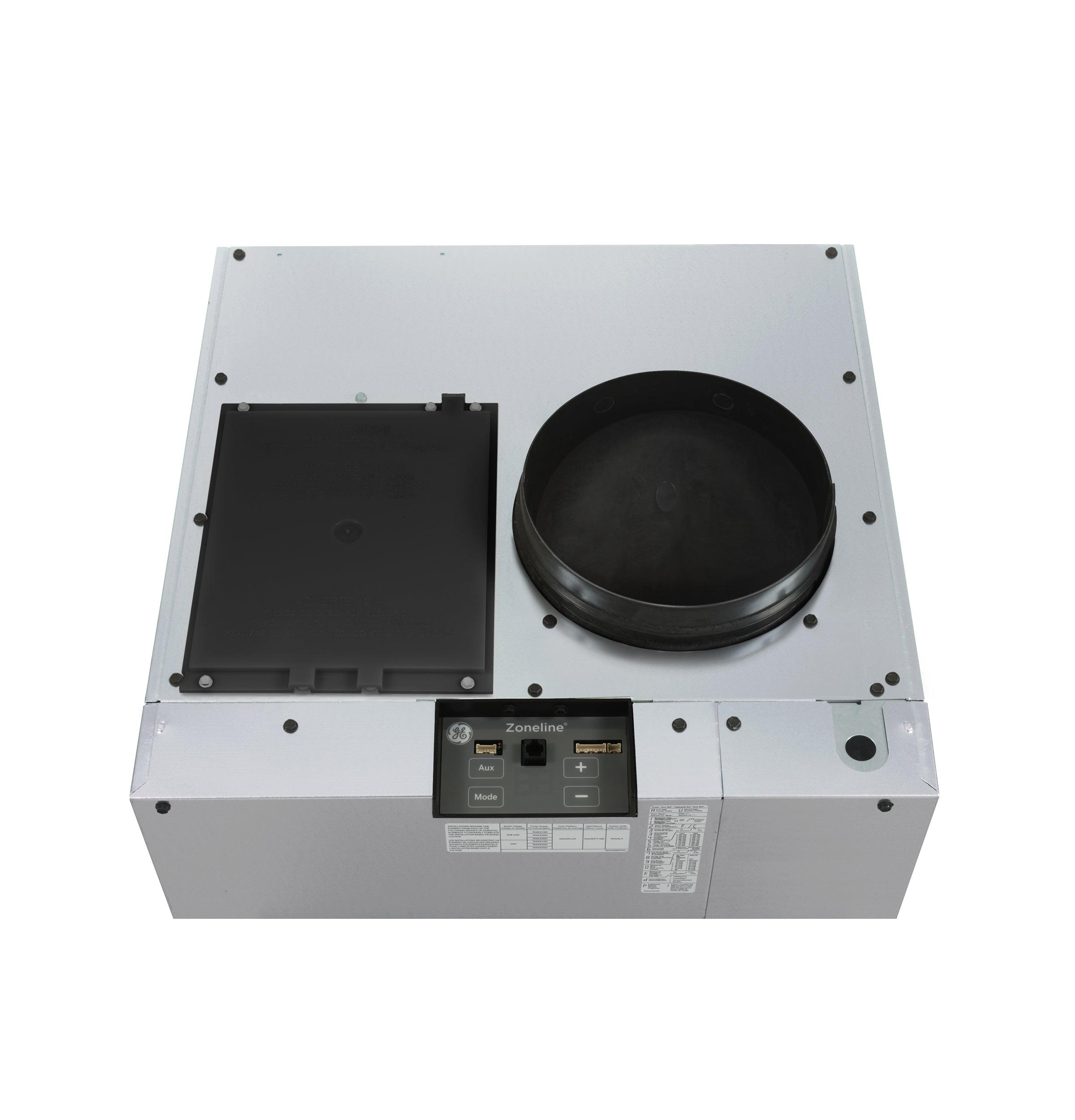

Control Type: Tactile touch pad with LED Display
-
COP2 @ 47F: 3.5
-
COP2 at 17F nominal / max: 2.2
-
Corrosion Treated: Yes
-
EER2 @ 95F (12,000 BTU): 12
-
Heat Pump: Yes
-
Heat Pump with Resistance Heat Backup: Yes
-
Heating BTU at 17F max: 9100
-
Heating BTU at 17F nominal: 6300
-
Heating BTU HP @ 47F: 11200
-
Heating BTU Range @ 47F: 4500 - 13000
-
HSPF2 Rating: 8.1
-
Makeup Air: No
-
Product Type: Vertical Air Conditioners
-
Refrigerant Charge (oz.): 38.5
-
Refrigerant Type: R454B
-
SEER2: 17
-
Sensible Heat Ratio: 76% ( at 95F Nominal Cool High Fan)
-

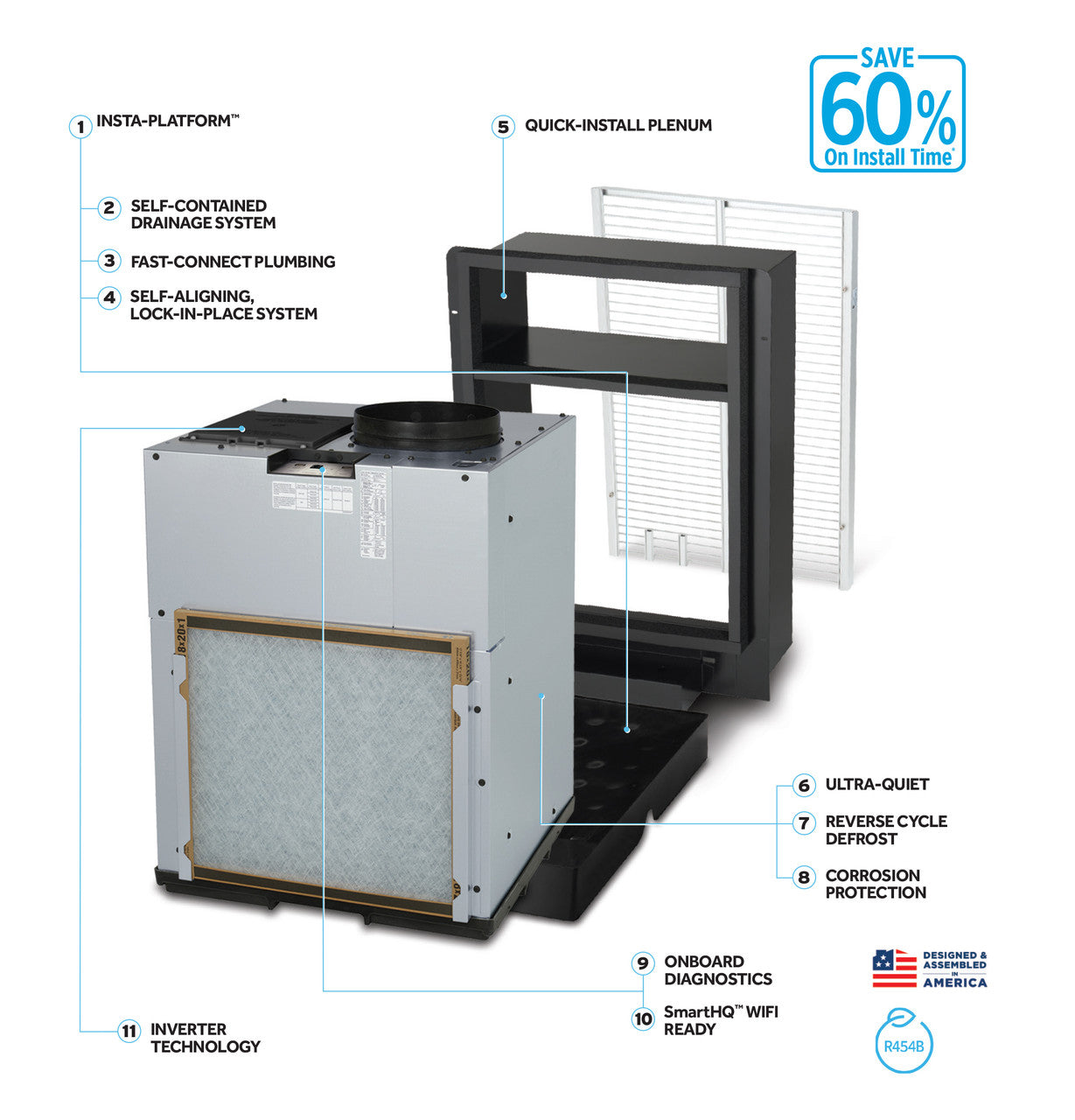

Zoneline Features: Insta - Platform™, Saves 60% on Install Time, Zoneline with Perfect Control Technology, Self-Contained Drainage System, Fast-Connect Plumbing, Quick-Install Plenum, Ultra-Quiet, Reverse Cycle Defrost, Corrosion Protection, Onboard Diagnostics, SmartHQ™ Wifi Ready (Requires Subscription)
-
CFM @ 0.1 ESP Dry: 465 (high fan), 380 (low fan)
-
CFM @ 0.3 (high fan) Nominal Cooling: 420
-
Cooling - Amperes: 4.8
-
Cooling - Watts: 1050
-
Cooling BTUH Range (@95F Outdoor): 5200 - 16,200
-
Cooling BTUH (95F): 12500
-
Cooling BTUH (MAX - 115F): 11200
-
Volts/Amps: 230 / 208V
-
Compressor: Inverter
-
Energy Star: No
-
Dehumidification (pts/hr): 3.1
-
CFMs (@ 0.1 ESP): 380 / 465 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: Power Supply Dependent
-
Cooling BTUs (@230V): 11200
-
EER2 (@230V): 12.0
-
SEER2 (@230V): 17.0
-
Cooling Amps (@230V): 4.9
-
Cooling Watts (@230V): 1050
-
Heat Pump BTUs (@230V): 11200
-
COP (@230V): 3.5
-
HSPF2 (@230V): 8.1
-
Heat Pump Heating Amps (@230V:: NA
-
Heat Pump Heating Watts (@230V): NA
-
Vent Location: Ducted into room
-
Energy Saver Mode: No
-
Fan Speeds: 3
-
Connectivity: Built-In WiFi
-
Fresh Air Intake: No
-
Overall Depth (in.): 24.125
-
Overall Width (in.): 23.625
-
Overall Height (in.): 31.875
-
Voltage: 208-230V
-
Circuit Breaker Size (Amps): Power Supply Dependent (15/20/30)
-
Electric Heat Performance @208V and 230V: See Description (Power Supply Dependent)
-
A2L Compatible: Yes
-
AMP: 4.8
-
Application: Commercial
-
BTU Cooling Rating: 16200 Btu/h
-
CEC Compliant: For Sale in CA
-
Compressor Type: Variable Speed
-
Configuration: Vertical
-
Depth: 24-1/8
-
Factory Std. Refrigerant Charge: 38.5
-
Height: 31-7/8
-
Minimum Circuit Ampacity (MCA): 30
-
Refrigerant: R-454B
-
Type: GAVVS12DCXWA
-
UPC: 084691944133
-
Width: 23-5/8
-
Nominal Cool Capacity: 12,000 BTU
-
Cooling Capacity Range @95F: 5,200 -16,200 BTU
-
Nominal Heating Capacity: 10,900 BTU
-
Heat Pump Capacity Range @47F: 4,500 – 13,000 BTU
-
HSPF2: 7.1
