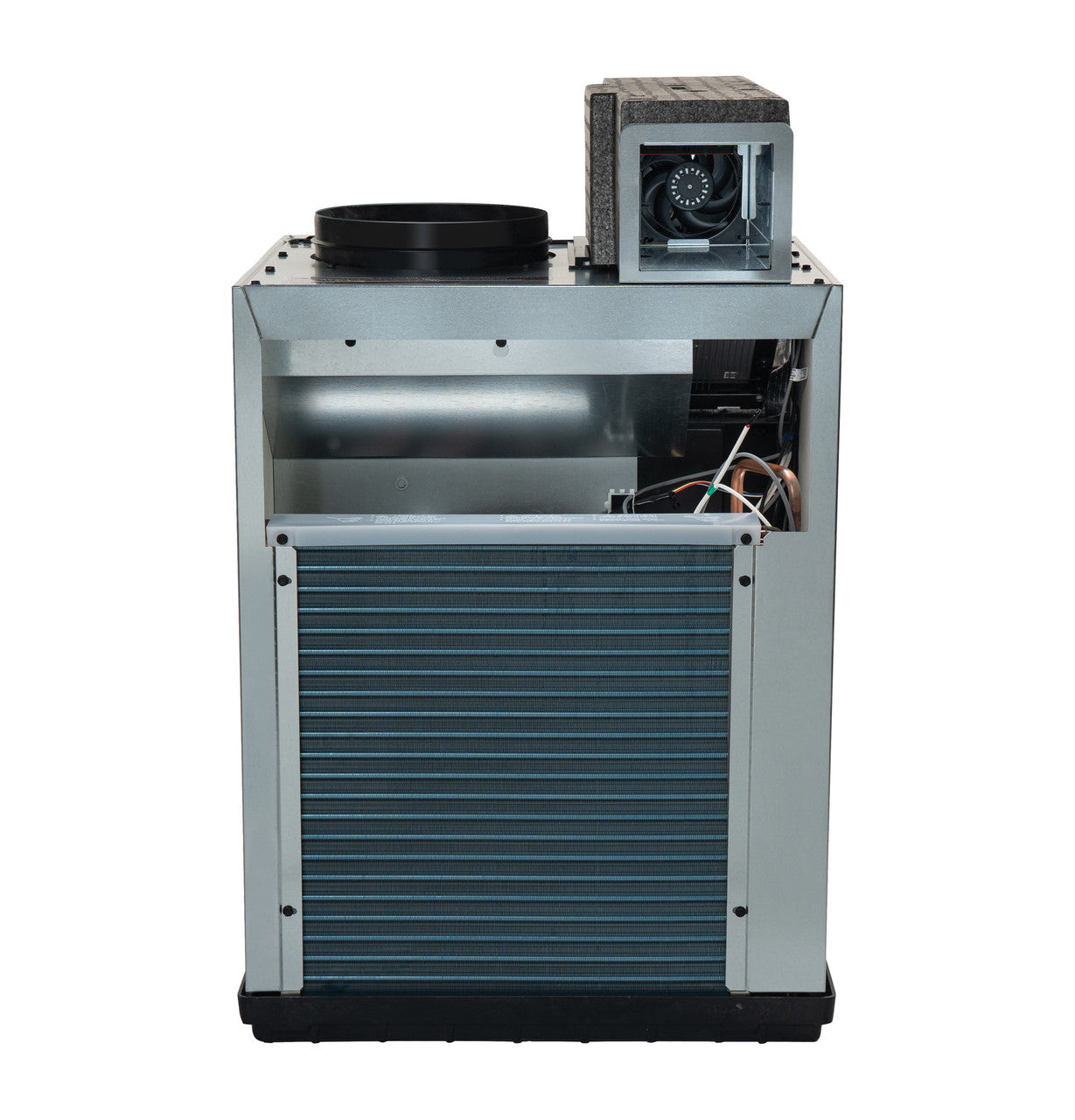

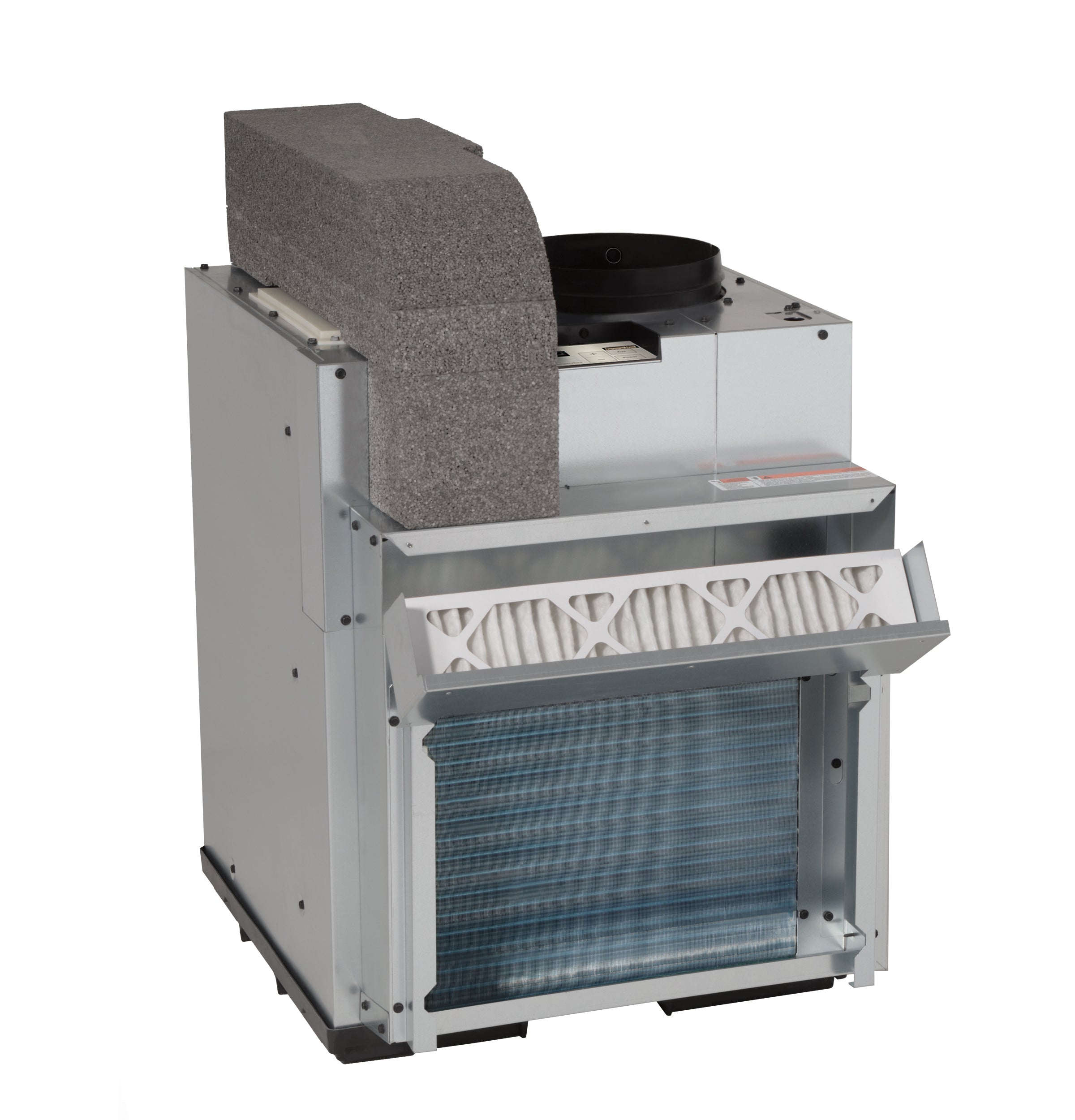

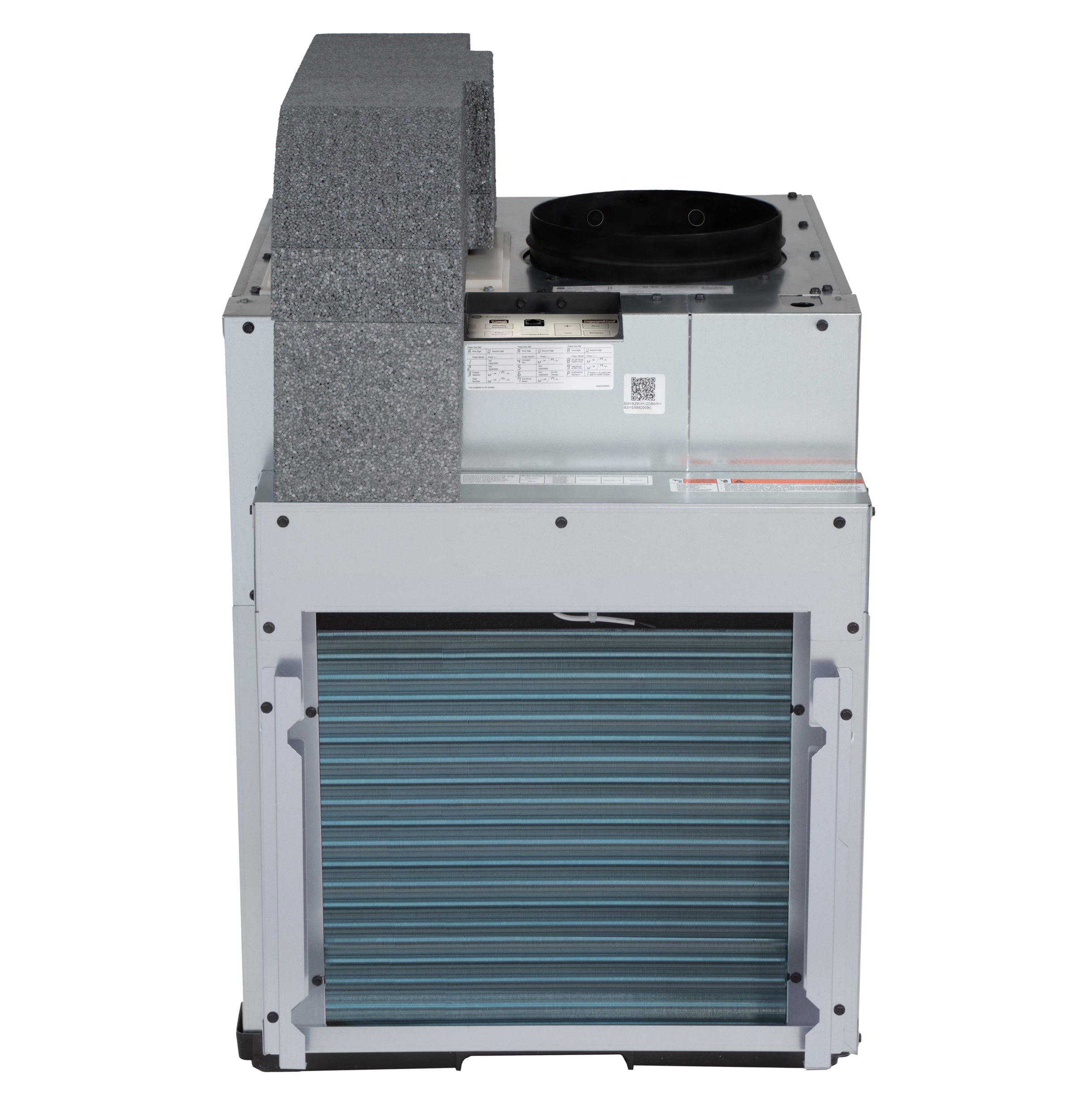

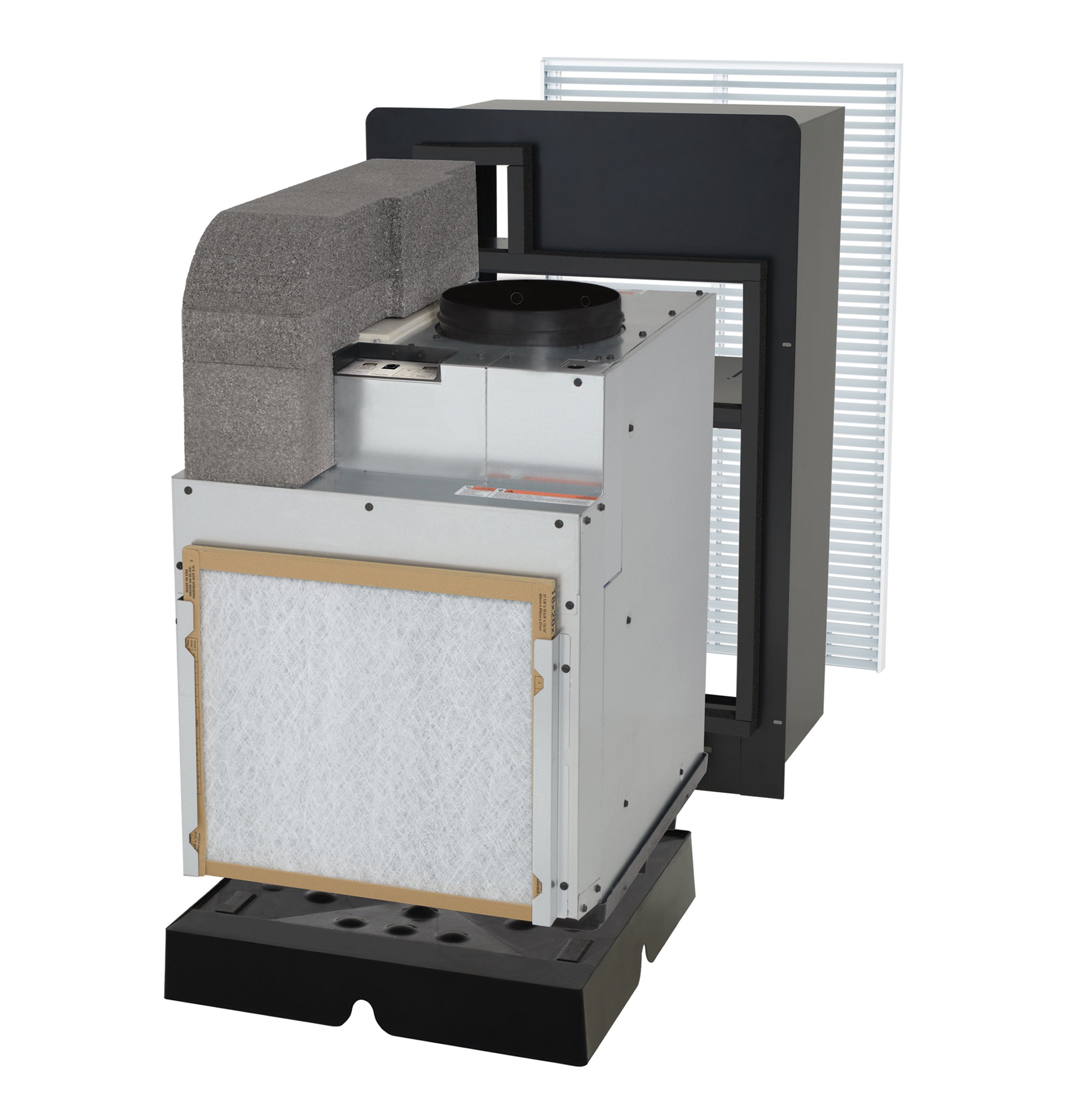

General Electric AVVL24DMXWA Zoneline vtac air conditioner with heat pump

Product Description

The GENERAL ELECTRIC AVVL24DMXWA Zoneline VTAC air conditioner is assembled in the USA and features inverter technology for precise performance. This 2-ton vertical series unit uses R454B refrigerant and offers variable speed operation for efficient cooling. It provides 5,000 to 24,000 BTUs of cooling and meets the latest energy efficiency industry requirements.

• Features Inverter Technology for controlled and precise performance.
• Offers Variable Speed operation for shorter recovery time and improved efficiency.
• Utilizes R454B refrigerant to meet the latest energy efficiency standards.

Product Highlights

This GE Zoneline VTAC air conditioner combines efficient cooling and heating with advanced features for optimal performance.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AVVL24DMXWA
• Country of Origin: America

Technical Specifications

• Brand: GE
• Type: Inverter Cooling With Heat Pump
• Reverse Cycle BTU: 5000-23000
• Voltage: 208/230V
• AMPS: 20A, 30A
• EER: 8.9
• COP: 3.5
• Dehumidification (Pints/Hr): 6.6
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: HEAT/COOL
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Refrigerant: R454B
• Cooling BTU (230 / 208V): 22400
• COP2 @ 47F: 2.8
• Heat Pump COP2@17F (Nominal/Max): 2 (230V Performance Data Listed)
• Heating BTU @17F (Nominal/Max): 17000
• Heating BTU Range @ 47F: 5,000-23,000
• HSPF2 Rating: 7.7
• Makeup Air CFM: 30-70 (no filter) 20-50 (with MERV13 filter kit)
• SEER2: 16
• Sensible Heat Ratio: 0.7
• Zoneline Features: Insta - Platform™
• Cooling - Amperes: 10.9
• Cooling - Watts: 2430
• Cooling BTUH Range (@95F Outdoor): 5000 - 24,000
• Cooling BTUH (MAX - 115F): 20200
• Cooling BTUH (MAX - 75F): 27800
• Heat Pump - Amps: 4.4
• Heat Pump - Watts: 925
• Rated Heat Pump BTU: 21500
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Compressor: Inverter
• Energy Star: No
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Vent Location: Ducted into room
• Make-Up Air: Yes
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Built-In WiFi
• Fresh Air Intake: Yes
• Overall Depth (in.): 28.375
• Overall Width (in.): 23.625
• Overall Height (in.): 36.875
