Product Description

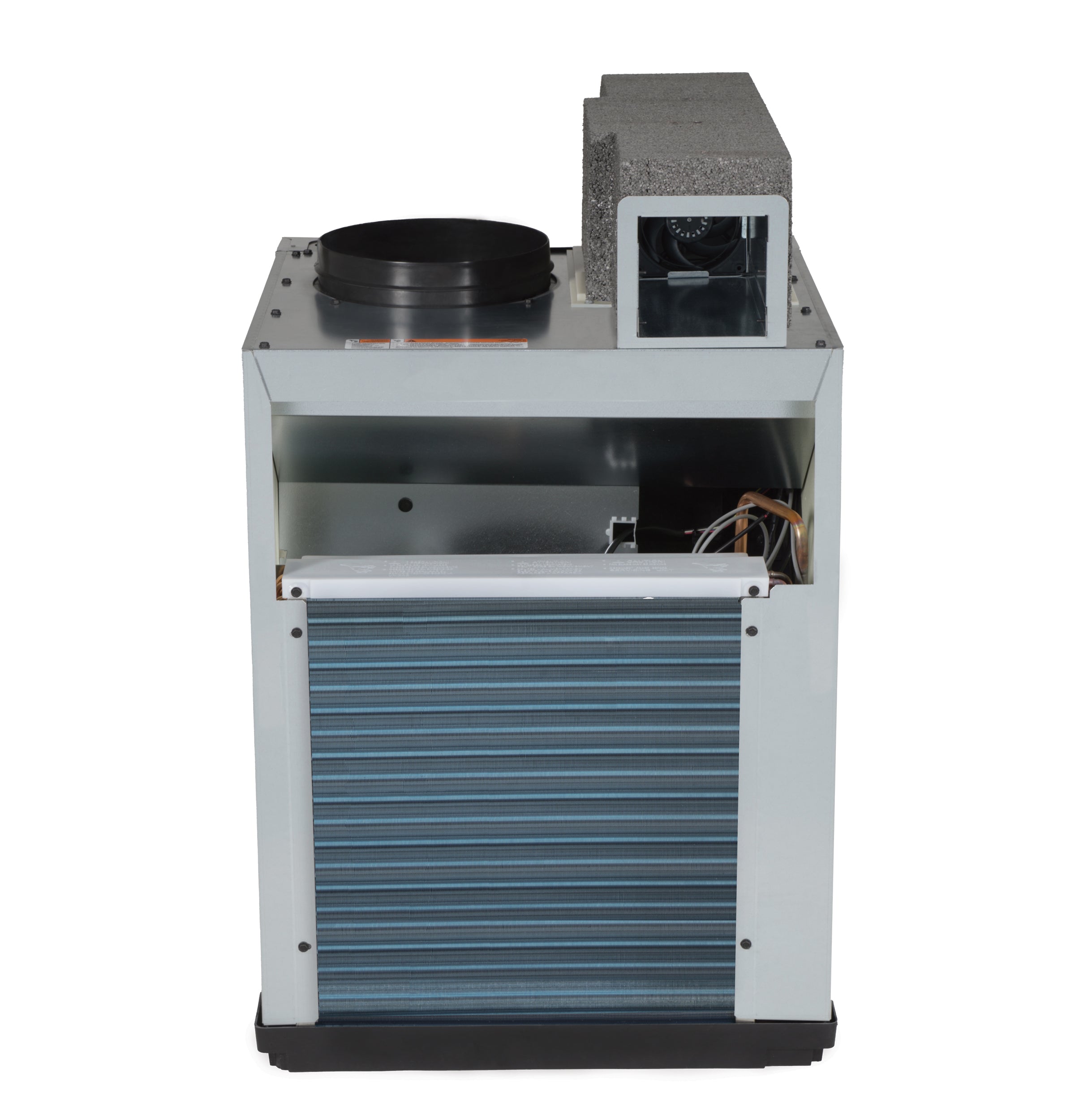

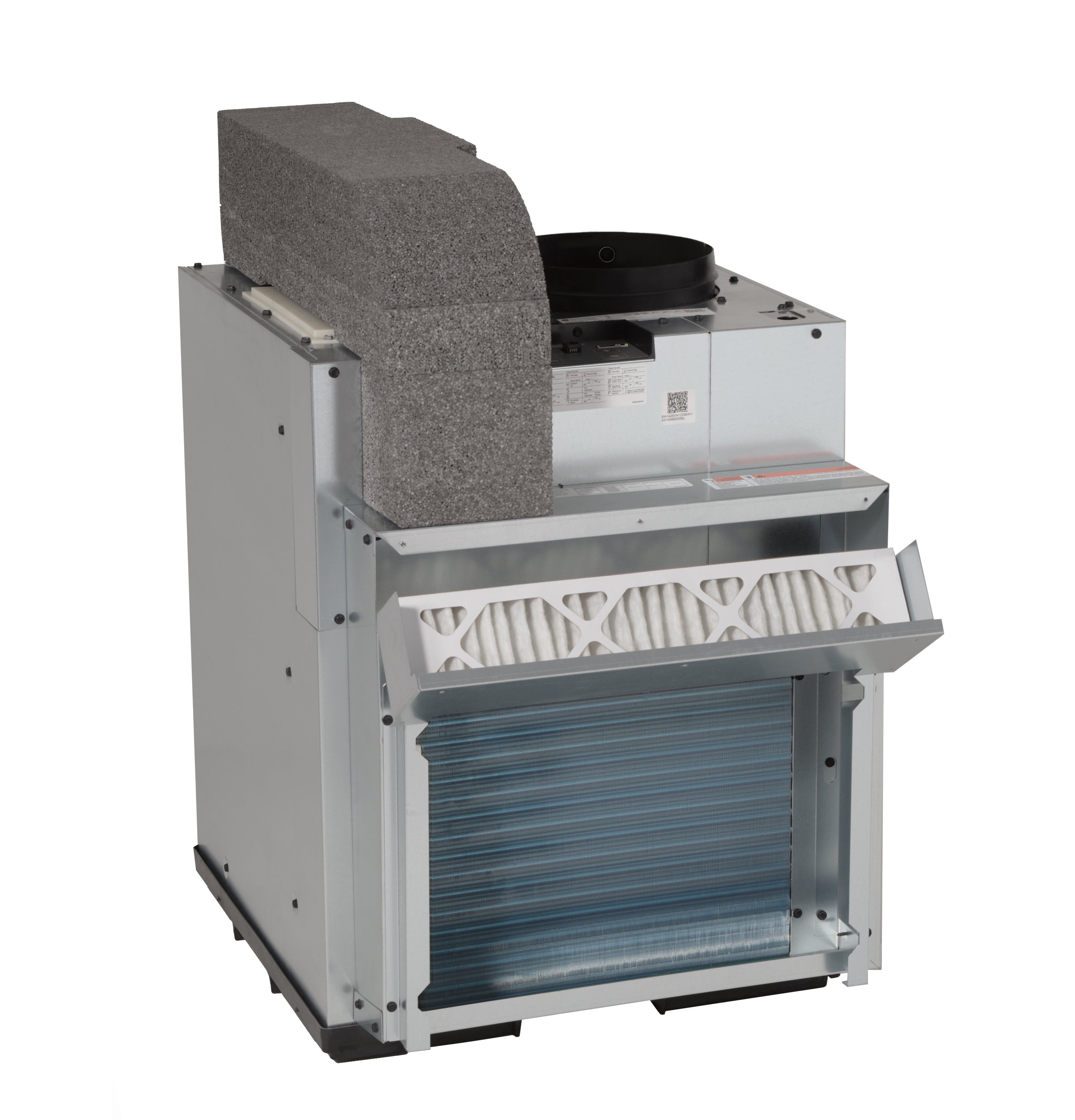

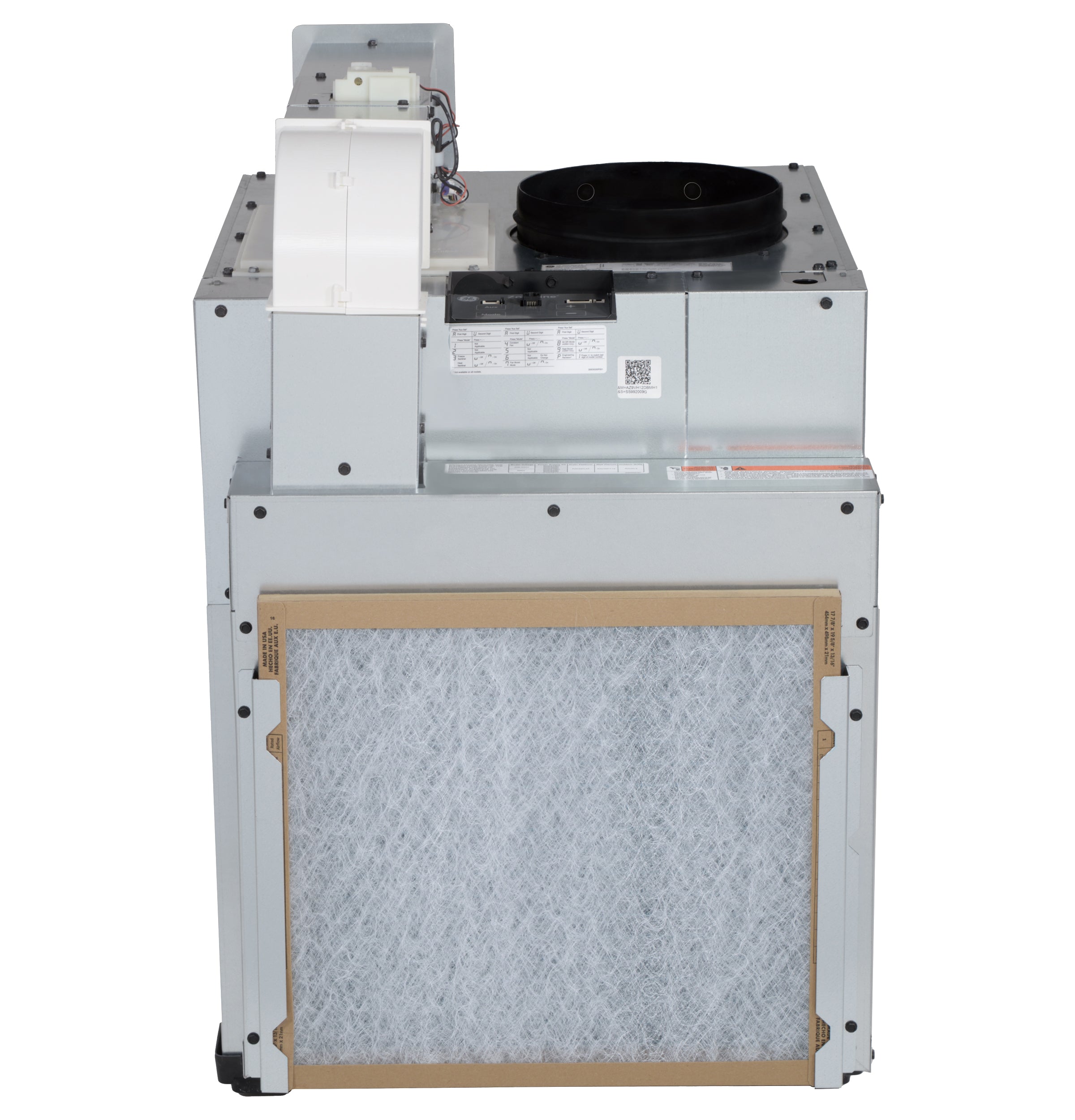

The GENERAL ELECTRIC AVVL12EMXWA Vertical Zoneline V12 Inverter Heat Pump uses R454B refrigerant. Designed and assembled in America, it features inverter technology for variable speed operation, improving efficiency and dehumidification. The reverse cycle defrost allows heat pump operation down to 0°F. Quick installation is supported by the Insta-Platform, eliminating customized platform construction.
- Inverter technology provides shorter recovery time and improved efficiency.
- Reverse cycle defrost extends heat pump operation to 0°F.

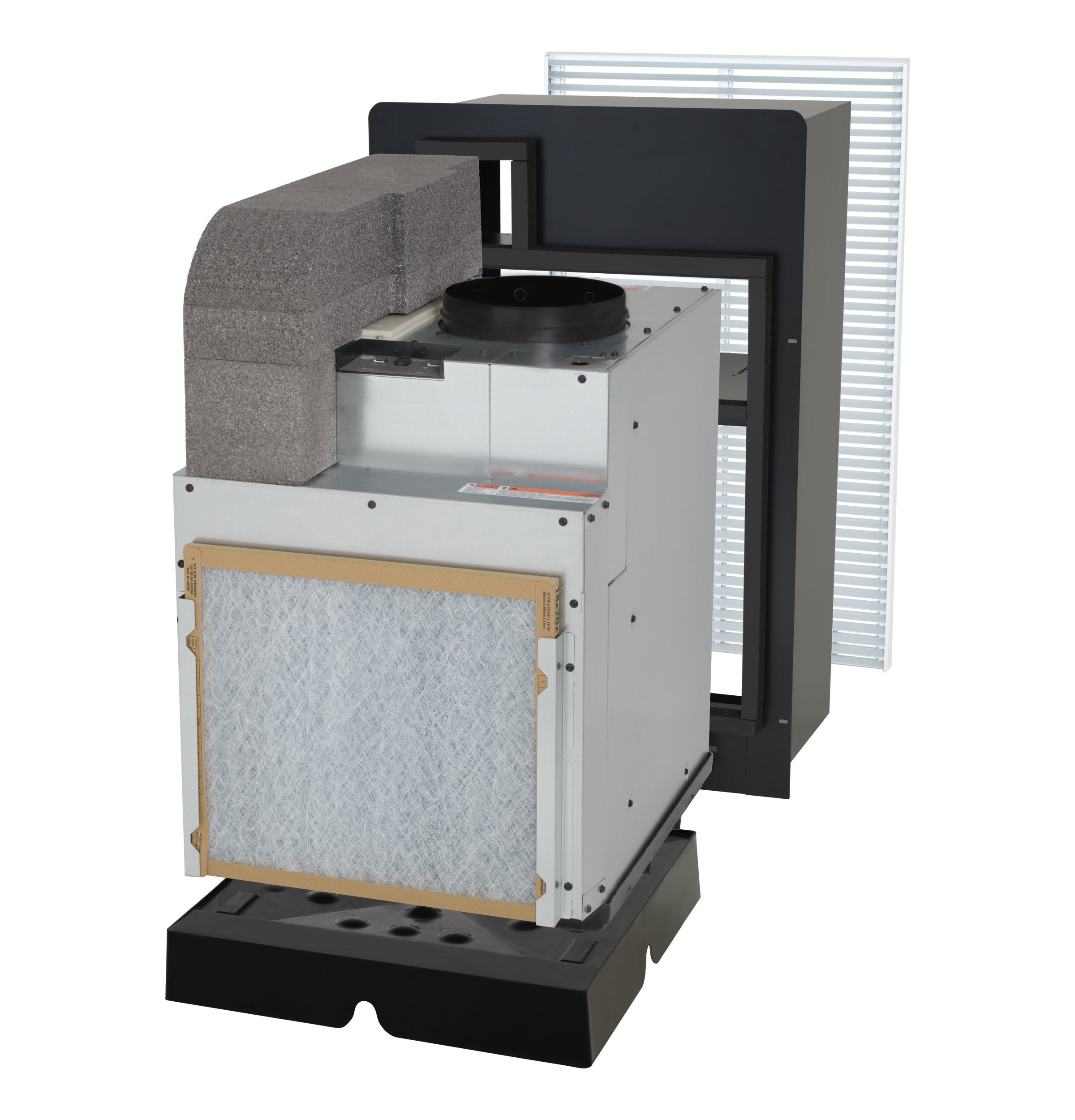

- Insta-Platform eliminates the need for customized platform construction.
Product Highlights
This vertical air conditioner features a self-contained drainage system, self-aligning lock-in-place system, and SmartHQ™ WIFI capability for remote monitoring.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AVVL12EMXWA
-
Country of Origin: America
Technical Specifications
-
ACCESSORIES: Accessories Required for Installation
Insta-Platform™
Wall Plenum
Power Connection
Access panel / Return Air Grille
Thermostat
Outdoor Grille
Optional Accessories
MERV13 Filter for Makeup Air
-
Color Appearance: Gray
-
Dehumidification (pts./hr.): 2.8 Nominal Cooling High Fan
-
Control Type: Tactile touch pad with LED Display
-
COP2 @ 47F: 3.5
-
COP2 at 17F nominal / max: 2.2
-
Corrosion Treated: Yes
-
EER2 @ 95F (12,000 BTU): 12
-
Heat Pump: Yes
-
Heat Pump with Resistance Heat Backup: Yes
-
Heating BTU at 17F max: 9100
-
Heating BTU at 17F nominal: 6300
-
Heating BTU HP @ 47F: 11000
-
Heating BTU Range @ 47F: 4500 - 13000
-
HSPF2 Rating: 8.1
-
Makeup Air: Yes
-
Product Type: Vertical Air Conditioners
-
Refrigerant Charge (oz.): 38.5
-
Refrigerant Type: R454B
-
SEER2: 17
-
Sensible Heat Ratio: 76% ( at 95F Nominal Cool High Fan)
-
Zoneline Features: Insta - Platform™
Saves 60% on Install Time
Zoneline with Perfect Control Technology

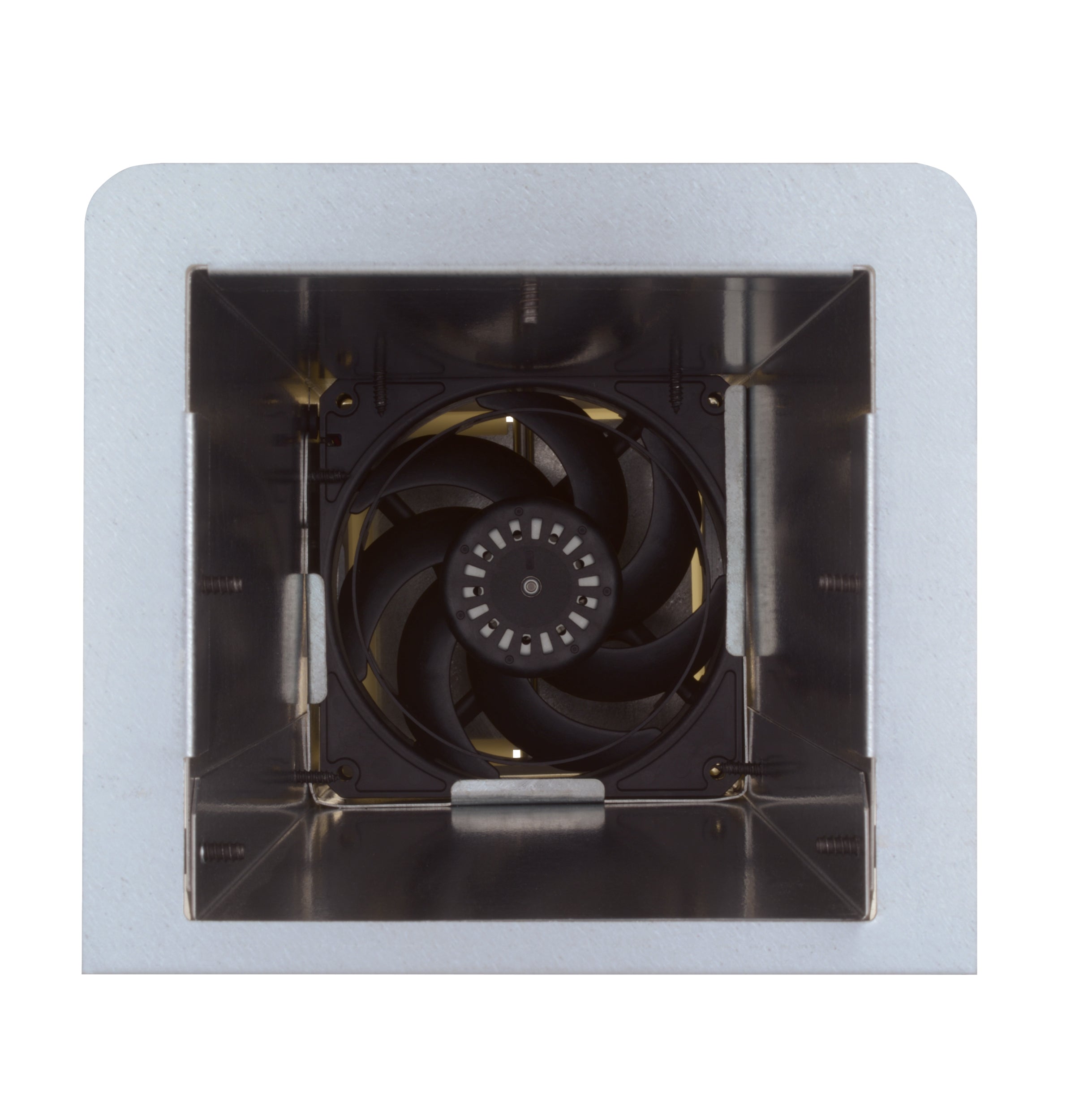

Adjustable Makeup Air
Self-Contained Drainage System
Fast-Connect Plumbing
Quick-Install Plenum
Ultra-Quiet
Reverse Cycle Defrost
Corrosion Protection
Onboard Diagnostics
SmartHQ™ Wifi Ready (Requires Subscription)
-
CFM @ 0.1 ESP Dry: 465 (high fan)
380 (low fan)
-
CFM @ 0.3 (high fan) Nominal Cooling: 420
-
Cooling - Amperes: 4.2
-
Cooling - Watts: 1050
-
Cooling BTUH Range (@95F Outdoor): 5200 - 16,200
-
Cooling BTUH (95F): 12500
-
Cooling BTUH (MAX - 115F): 11200
-
Volts/Amps: 265V
-
Approximate Shipping Weight: 150 lb
-
Net Weight: 137 lb
-
Compressor: Inverter
-
Energy Star: No
-
Dehumidification (pts/hr): 2.8
-
CFMs (@ 0.1 ESP): 380 / 465 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: Power Supply Dependent
-
Cooling BTUs (@265V): 12500
-
EER2 (@265V): 12.0
-
SEER2 (@265V): 17.0
-
Cooling Amps (@265V): 4.7
-
Cooling Watts (@265V): 1050
-
Heat Pump BTUs (@265V): 11200
-
COP (@265V): 3.5
-
Heat Pump Heating Amps (@265V): NA
-
Heat Pump Watts (@265V): NA
-
Vent Location: Ducted into room
-
Make-Up Air: Yes
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Connectivity: Built-In WiFi
-
Fresh Air Intake: Yes
-
Overall Depth (in.): 28.375
-
Overall Width (in.): 23.625
-
Overall Height (in.): 36.875
-
Weight (lbs.): 137
-
Voltage: 265-277V
-
Circuit Breaker Size (Amps): Power Supply Dependent
-
Electric Heat Performance @265V: See Description (Power Supply Dependent)
-
Air Flow (CFM): 500
-
Cooling Capacity: 12000 BTU/H
-
Heating Capacity: 10900 BTU/H
-
Maximum Voltage: 265V
-
Refrigerant: R-454B
