General Electric AVES18DCXXA Vertical Zoneline V10 Electic Heat 18000 BTU Corrosion R454B

Product Description

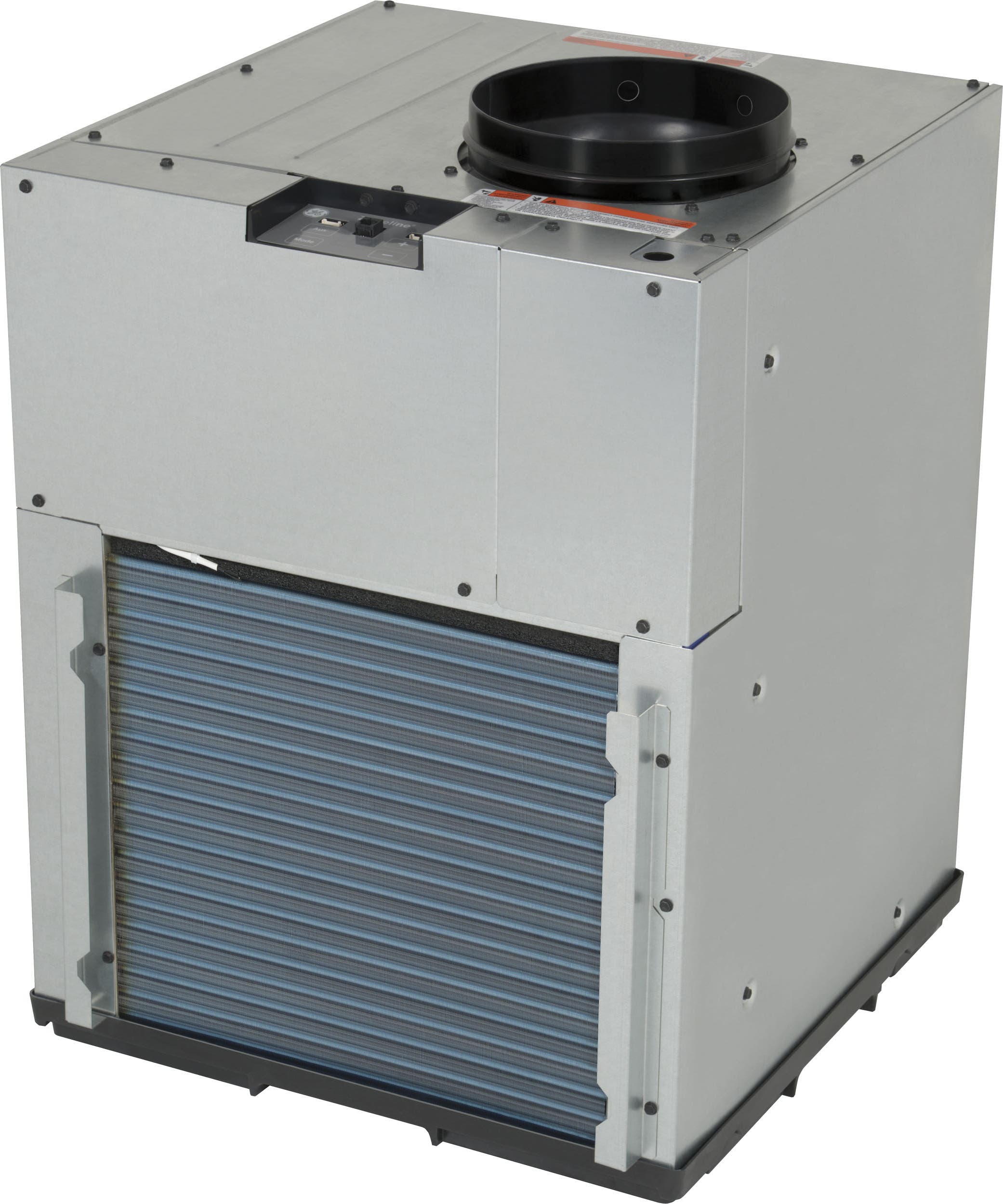

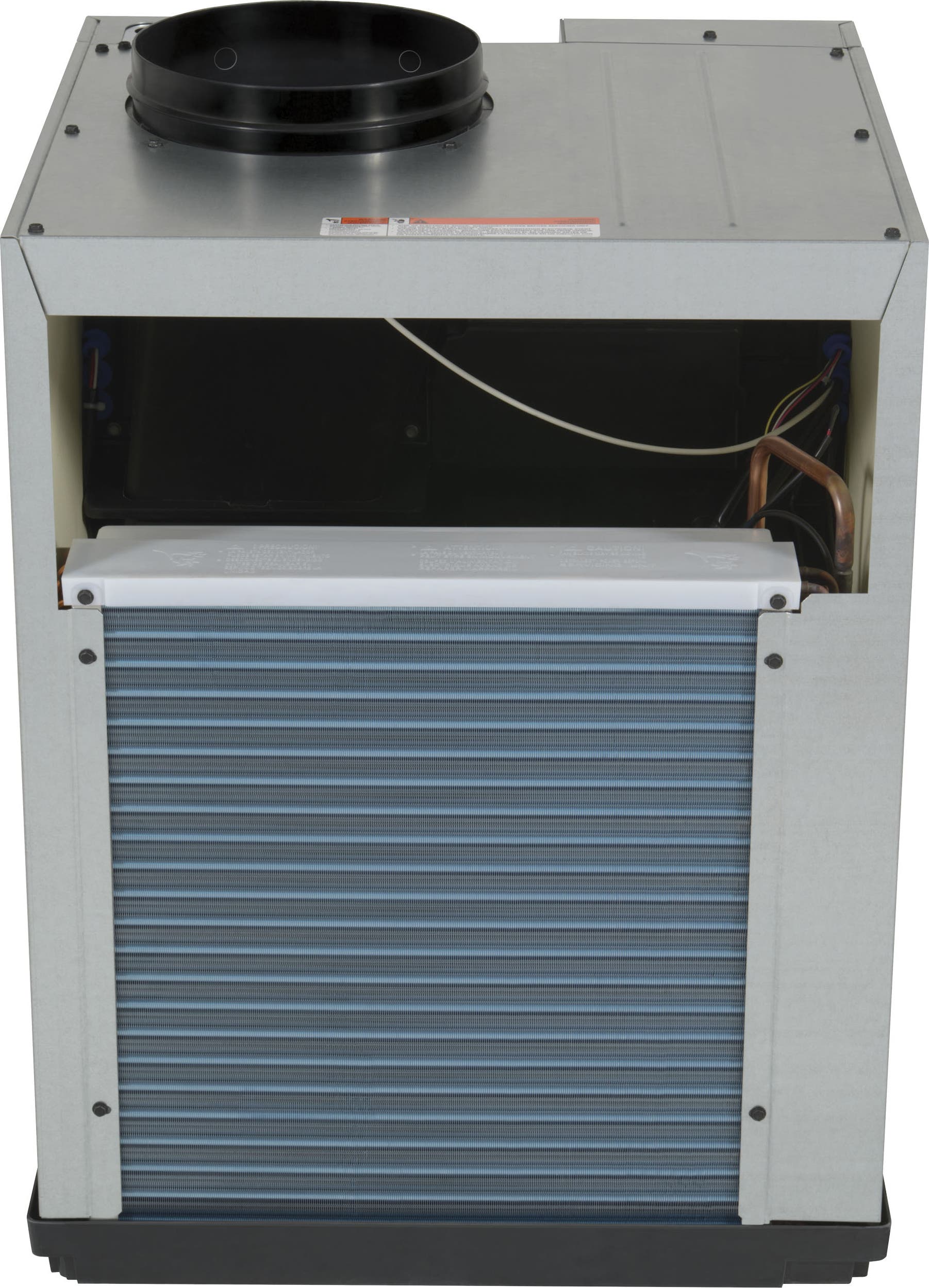

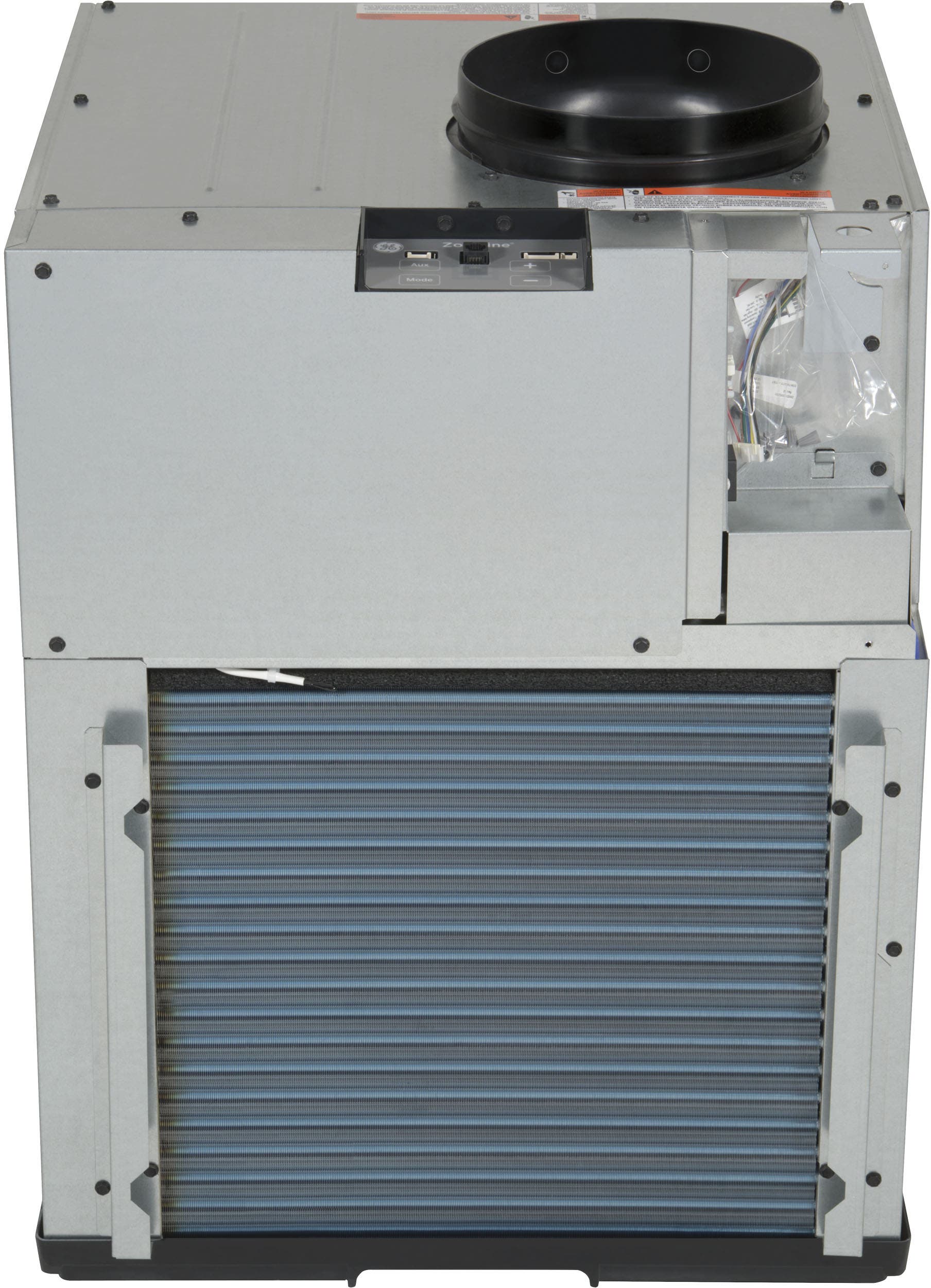

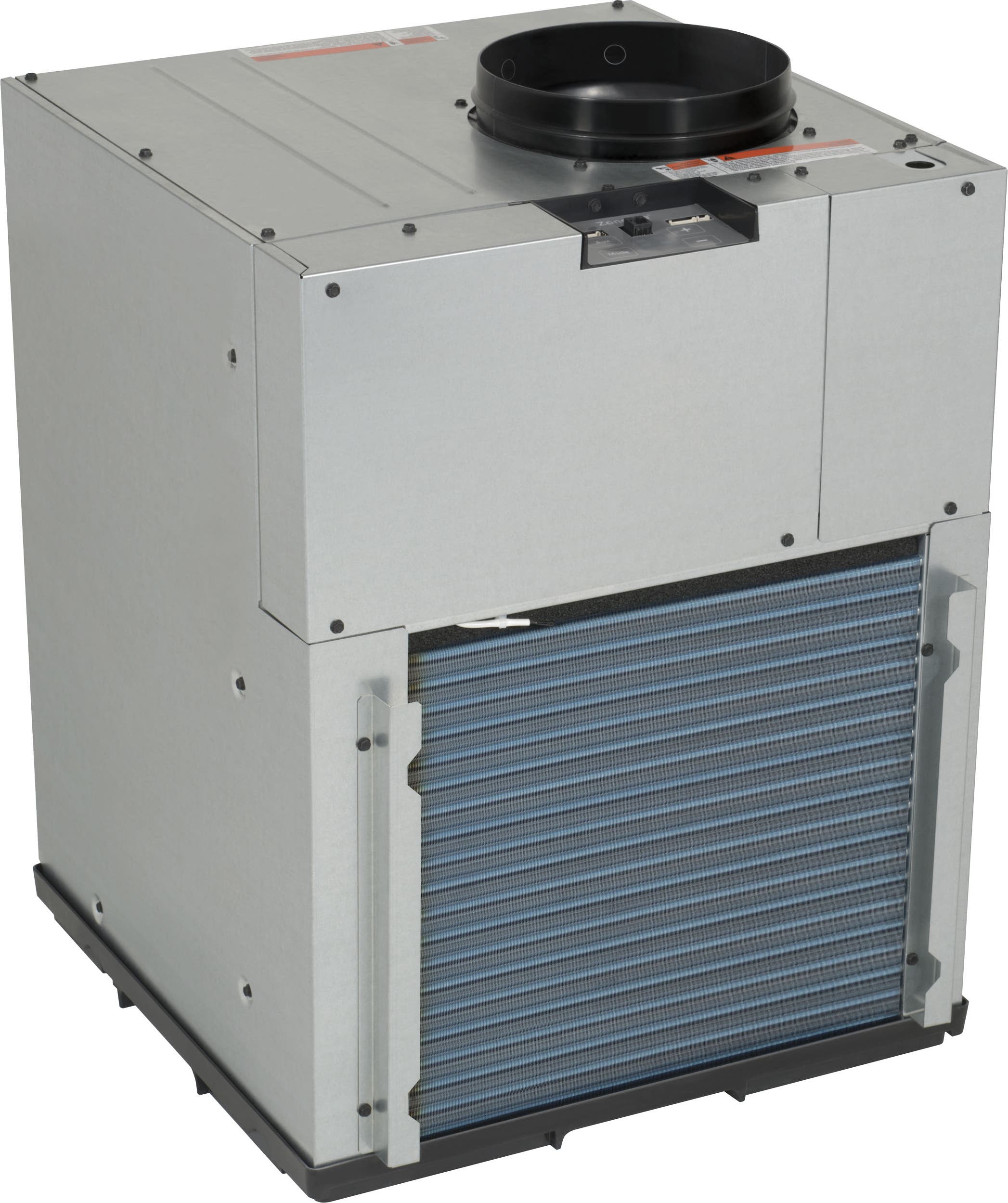

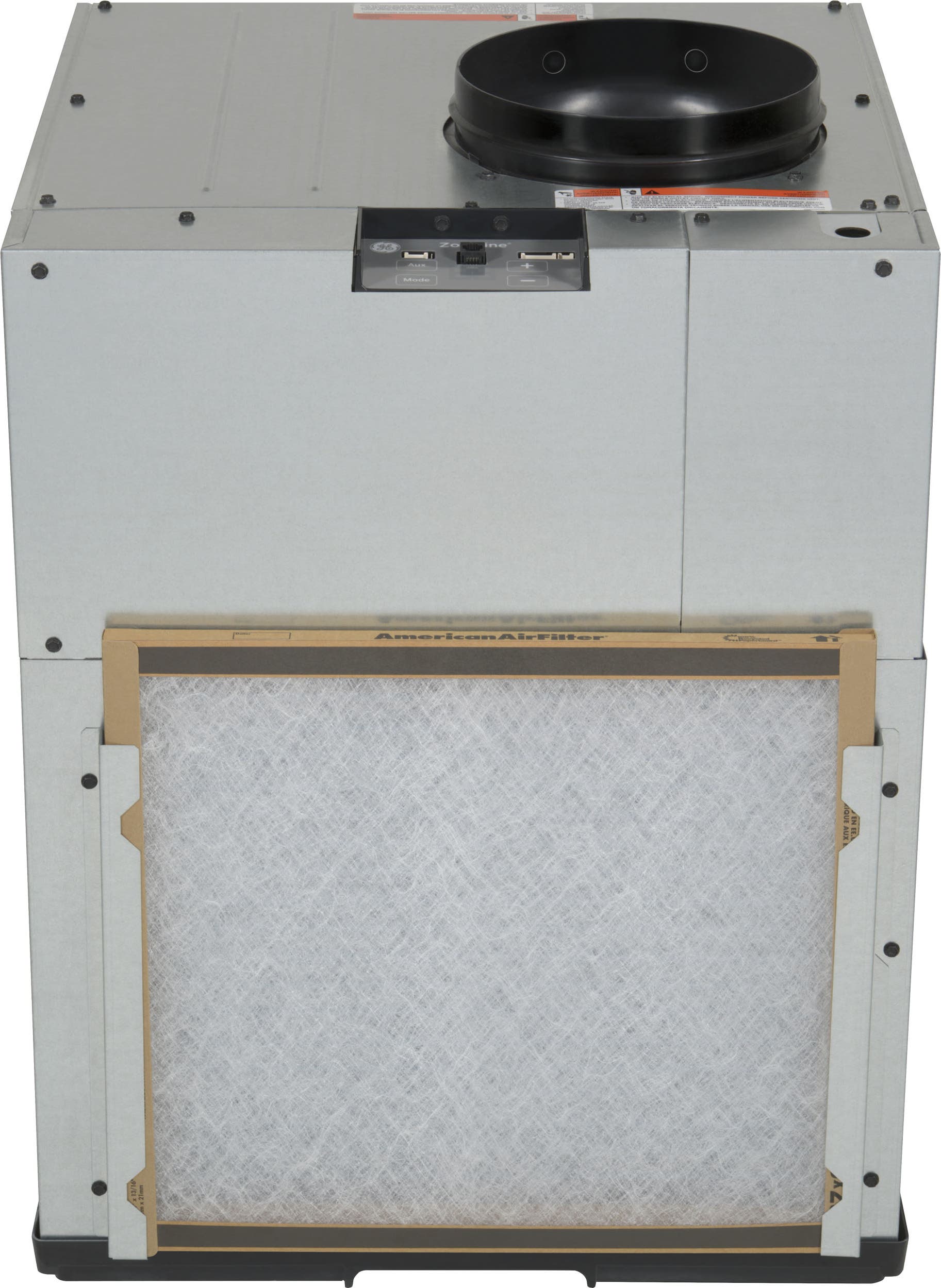

The GENERAL ELECTRIC AVES18DCXXA Vertical Zoneline V10 is a packaged terminal cooling system with electric resistive heat, delivering up to 17300 BTUs for cooling. It features two fan speeds and utilizes R454B refrigerant. This vertical air conditioner optimizes floor space with its concealed closet installation, enhancing room aesthetics and furniture placement. Accessories are required for installation.

• Insta-Platform design integrates with the wall plenum for a tight seal.
• Self-contained drainage system allows for easy installation and chassis removal.
• Anti-corrosion design with rust-proof basepan and bulkhead.

Product Highlights

The GENERAL ELECTRIC AVES18DCXXA offers efficient cooling and heating with a space-saving design and corrosion protection.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AVES18DCXXA
• Country of Origin: US

Technical Specifications

• ACCESSORIES: Accessories Required for Installation Insta-Platform™ Wall Plenum Power Connection Access panel / Return Air Grille Thermostat Outdoor Grille
• Cooling BTU (230 / 208V): 17300 / 17200
• Dehumidification (pts./hr.): 4.2
• Control Type: Tactile touch pad with LED Display
• Cool with Resistance Heat: Yes
• Corrosion Treated: Yes
• EER2 Minimum (230V) OPT for SEER2: 10.9 / 10.9
• Makeup Air: No
• Product Type: Vertical Air Conditioners
• Refrigerant Charge (oz.): 33.3
• Refrigerant Type: R454B
• Sensible Heat Ratio: 0.73
• Cooling - Amperes: 8.1 /7.5
• Cooling - Watts: 1575 / 1580
• Volts/Amps: 230 / 208V
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 545 / 643
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Electric Heat kW: Power Supply Dependent
• EER (@230V): 10.9
• Cooling Amps (@230V): TBD
• Cooling Watts (@230V): TBD
• Vent Location: Ducted into room
• Energy Saver Mode: No
• Fan Speeds: 2
• Connectivity: Optional WiFi Module Available
• Fresh Air Intake: No
• Overall Depth (in.): 24.125
• Overall Width (in.): 23.625
• Overall Height (in.): 31.875
• Voltage: 208-230V
• Circuit Breaker Size (Amps): Power Supply Dependent (20/30)
• Electric Heat Performance: See Description (Power Supply Dependent)
• Power: 18000 BTU/H
• Refrigerant: R-454B
• Vertical Air Conditioner (VTAC): Yes
• Vented: Yes
• Wall Mounted: Yes
• UL Listed: Yes
