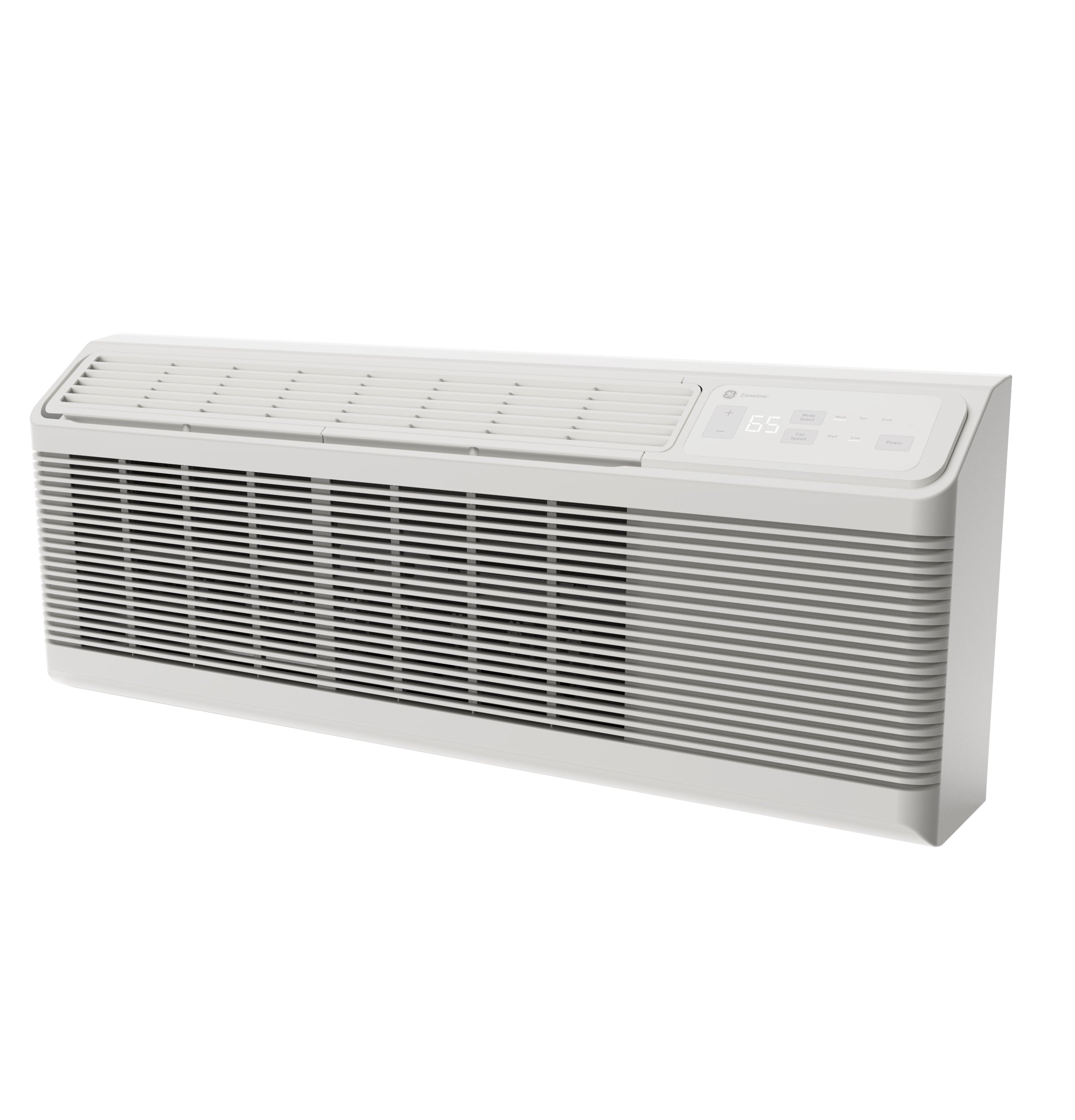

General Electric AVES12DCXXA Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt

Product Description

The GENERAL ELECTRIC AVES12DCXXA Zoneline cooling and electric heat fixed speed unit features corrosion protection and operates at 12,000 BTU with a 230/208 Volt power supply. It is equipped with electronic touch controls and an LED display. The unit includes a corrosion protection package and a fresh air vent.

• Utilizes R454B refrigerant, an environmentally friendly option.
• Features a quiet operation due to a baked-on mastic sound barrier.
• Includes an SMC basepan and bulkhead for enhanced durability.

Product Highlights

This GE Zoneline unit offers efficient cooling and heating with advanced features like electronic temperature limiting and a corrosion protection package.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AVES12DCXXA
• Country of Origin: America

Technical Specifications

• ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• APPEARANCE: Color Appearance Grey White
• CAPACITY: CFM Indoor Fan High 410
• CFM Indoor Fan Low: 275
• Cooling BTUH (MAX): 12100 Btu
• Cooling BTUH (MIN): 12,000 Btu
• Cooling EER (BTUH / Watt): 11.6/11.7
• Dehumidification (pts./hr.): 3.3 (High Speed)
• Vent CFM (high fan at zero ESP): 41.5
• FEATURES: Central Desk Control Compatibility Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer, Tactile touch pad with LED Display
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling, Hi/Low Heating, Hi/Low Fan Only
• Filter Type: Rigid Frame, Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Sentinel: Yes
• Heating System: Resistance only
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 32
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 4.7/5.1
• Cooling - Amperes; F.L. - Cooling: 4.4/4.7
• Cooling - Amperes; L.R.: 29.5
• Cooling - Watts: 1035/1020
• Hertz: 60
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
