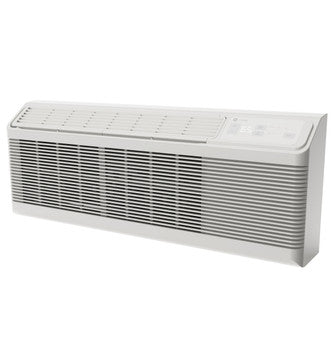

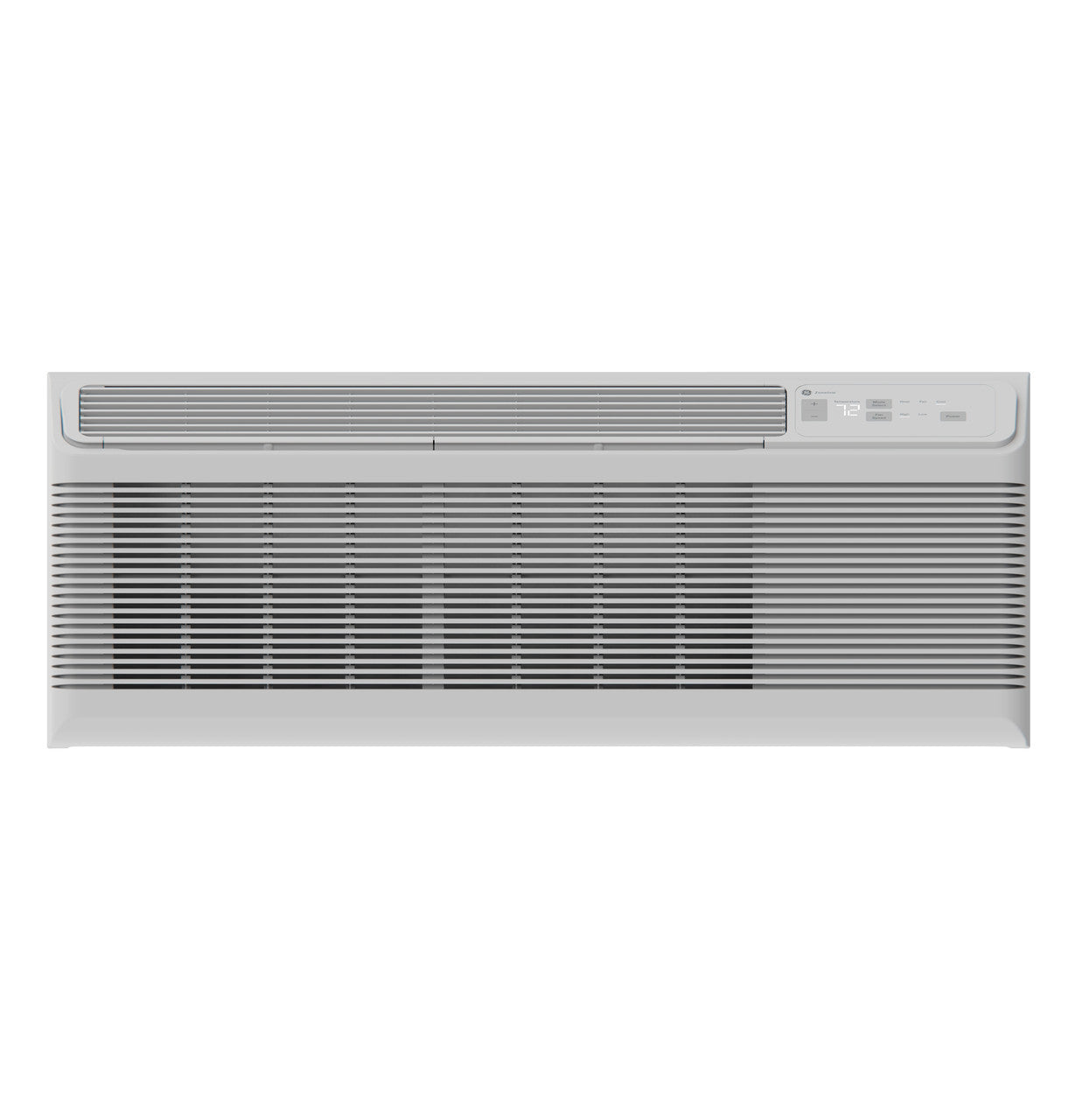

General Electric AVES09DCXXA Zoneline Heat Pump Fixed Speed Unit 9,000 BTU, 230/208 Volt

Product Description

The GENERAL ELECTRIC AVES09DCXXA Zoneline Heat Pump is a fixed speed unit with corrosion protection. This unit features R454B refrigerant, a heat pump operable down to 25°F, and a boost heat option. It also has electronic touch controls with LED display and a quiet operation due to its baked on mastic sound barrier. Designed and assembled in America.

• Features R454B refrigerant
• Heat pump operates down to 25°F

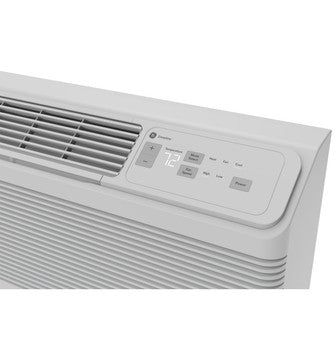

• Electronic touch controls with LED display

Product Highlights

This GE Zoneline heat pump offers efficient heating and cooling with user-friendly electronic controls and a design focused on quiet operation and corrosion protection.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AVES09DCXXA

Technical Specifications

• Accessories: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• CFM Indoor Fan High: 400
• CFM Indoor Fan Low: 290
• Cooling BTUH (MAX): 9700
• Cooling BTUH (MIN): 9,600 Btu
• Cooling EER (BTUH / Watt): 12.4 / 12.4
• Dehumidification: 2.0 (High Speed) pts./hr.
• Vent CFM: 41.3 (high fan at zero ESP)
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer
• Touchpad: Tactile touch pad with LED Display
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.7/3.8
• Heating System: Heat Pump With Backup Resistance Heat
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge: 28 oz.
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 3.6/3.9
• Cooling - Amperes; F.L. - Cooling: 3.6/3.9
• Cooling - Amperes; L.R.: 21.0
• Cooling - Watts: 780/770
• Heating BTUH: 8000 / 7900
• Heating - Electric - Heater Amps: 3.0/3.2
• Heating - Reverse Cycle - Watts: 645/630
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Net Weight: 106 lb
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
