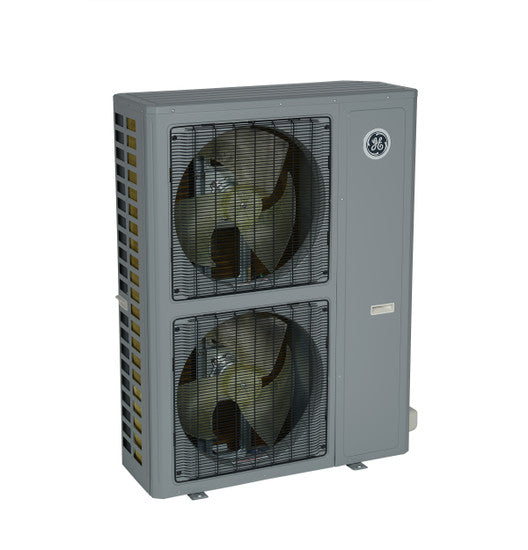

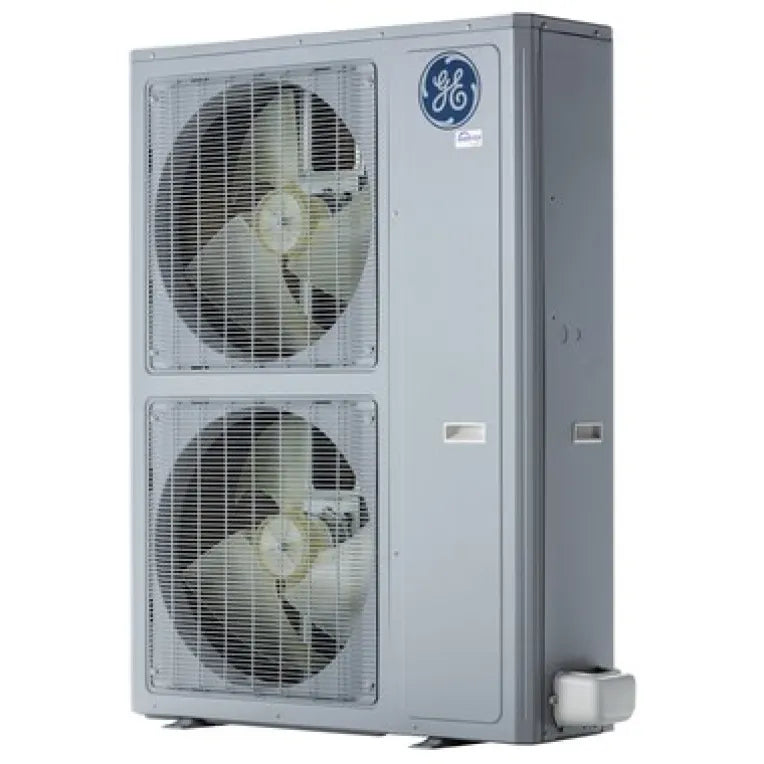

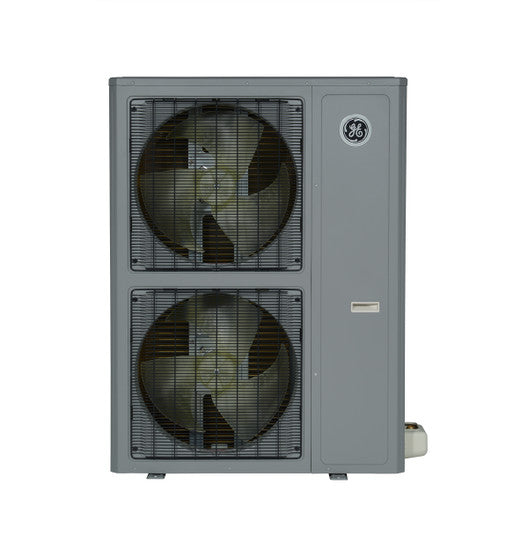

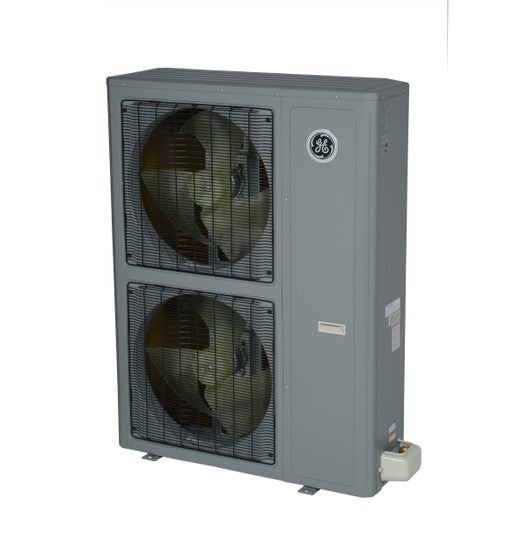

General Electric AUH4860ZGDA Connect Series Heat Pump 48,000/60,000

Product Description

The General Electric AUH4860ZGDA is a Connect Series heat pump that delivers high-efficiency variable speed mini-split performance with inverter technology. Its outdoor unit features a capacity select function, allowing configuration for 48,000 or 60,000 BTU/Hr cooling capacity. The small footprint and mid-vapor compressor technology provide high heat output down to -22F, making it suitable for various climates. It is compatible with UUY48ZGDAB and UUY60ZGDAB indoor units.

• High Efficiency Inverter Compressor
• Capacity Select Function for flexible output
• Small Footprint for versatile installation

Product Highlights

High-efficiency variable speed heat pump with flexible capacity and compact design.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AUH4860ZGDA

Technical Specifications

• Compatible Indoor Models: UUY48ZGDAB, UUY60ZGDAB
• EER: 11.5 (when paired with UUY48ZGDAB), 10.5 (when paired with UUY60ZGDAB)
• HSPF: 10.5 (when paired with UUY48ZGDAB), 10 (when paired with UUY60ZGDAB)
• Product Type: Heat Pump
• SEER: 18 (when paired with UUY48ZGDAB), 17 (when paired with UUY60ZGDAB)
• Series: Connect
• Style: Heat Pump
• Unit Type: Outdoor
• Cooling Capacity: 48,000/60,000 BTU/Hr
• Heating Capacity: 48000-54000 BTU
• Input Voltage: 208/230V
• Frequency: 60 Hz
• Phase: 1
• Refrigerant Type: R-410A
• Sound Level: 50/51 dBA
• Control Voltage: 24VAC
• Compressor Type: DC Inverter Driven Rotary
• MOP: 45
• Liquid Line: 3/8"
• Suction Line: 3/4"
• MCA: 35
• Product Group: Single-split-system Heat Pumps
• Off Mode Power Consumption: 33.0 Watts
• Efficiency Based on System Tested: Blower-Coil
• Model Name (Energy Star): Unix High-efficiency Series
• Product Category (Energy Star): Central Air Conditioners and Air Source Heat Pumps
• AHRI / Verification Reference: AHRI-206853238
• AHRI Classification: CcASHP
• HSPF2 (Region V): 9
• SEER2: 7
• COP at -15C: 1.8
• Capacity Maintenance % (max -15c/5f Rated 8.3c/47f): 85
• Indoor Type/Ducting Configuration: Centrally Ducted System
• Small Duct High Velocity: No
• Cooling Capacity (kW): 14.07
• Heating Capacity (kW): 14.07
• HSPF Region 5: 9.13
• HSPF Region 4: 10.5
