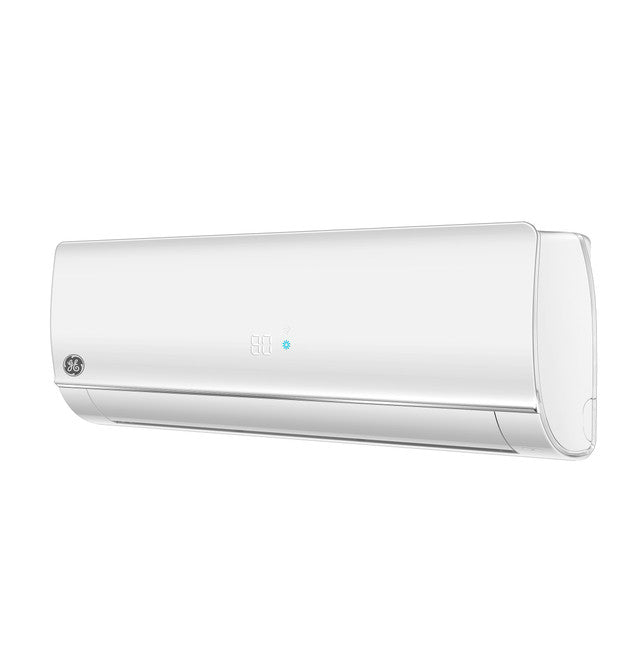

General Electric asyw24crdda Ductless Highwall Indoor Unit

Product Description

The GENERAL ELECTRIC asyw24crdda is a ductless highwall indoor unit rated at 24,000 BTU/h, designed for single-zone and multi-zone mini-split systems operating on 208-230V/60Hz/1-phase power. This unit installs on an interior wall and connects to a compatible outdoor condensing unit to deliver cooling capacity for residential or light commercial spaces. It features built-in Wi-Fi with SmartHQ Home integration and supports Amazon Alexa and Google Home voice control. Licensed HVAC technicians handle installation, refrigerant connection, and system commissioning. The unit ships at approximately 37.48 pounds and has a net weight of 30.9 pounds.

The asyw24crdda is suited for single-zone applications paired with the ASH124CRDDA outdoor unit, or as part of a select multi-zone outdoor unit configuration. It is intended for highwall mounting in residential or light commercial interiors where a concealed-duct system is not practical or desired. The unit provides five fan speed stages plus Auto, with airflow ranging from 482 to 846 CFM, allowing precise comfort control across a range of room sizes and load conditions.

Key Features

• 24,000 BTU/h rated cooling capacity at 208-230V/60Hz/1-phase
• Five fan speed stages plus Auto, spanning 482 to 846 CFM
• Indoor sound levels from 38 dBA at low speed to 54 dBA at high speed
• Built-in Wi-Fi with SmartHQ Home, Amazon Alexa, and Google Home compatibility
• Blue Fin coil protection and Warm Start and Turbo Mode operation
• Compatible with select single-zone and multi-zone outdoor units

Compatibility

Compatible with the ASH124CRDDA outdoor unit for single-zone system completion. Also compatible with select multi-zone outdoor units in the GE Ductless lineup. Refer to the outdoor unit documentation to confirm multi-zone pairing.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Power must be disconnected at the disconnect box before any electrical or refrigerant line work begins. Refrigerant line connections use a 1/4-inch liquid line O.D. and a 1/2-inch suction line O.D.; lines must be properly flared, leak-tested, and evacuated before charging. Follow all local mechanical and electrical codes, including NEC requirements for dedicated branch circuit sizing and disconnect placement.

Technical Specifications

• Cooling Rated Capacity: 24,000 BTU/h
• Voltage/Hertz/Phase: 208-230V / 60 Hz / 1-phase
• Fan Speed Stages: 5 plus Auto
• Fan Speeds (CFM): 846 / 744 / 668 / 592 / 482
• Indoor Sound Level: 38 to 54 dBA (low to high)
• Overall Width: 44 inches
• Overall Height: 13.25 inches
• Overall Depth: 9 inches
• Net Weight: 30.9 pounds
• Approximate Shipping Weight: 37.48 pounds
• Liquid Line O.D.: 1/4 inch
• Suction Line O.D.: 1/2 inch
• Color: White
• Style: Highwall
• Unit Type: Indoor
• Connected Capabilities: SmartHQ Home, Amazon Alexa, Google Home
• Parts Warranty: 5-year limited; 10-year registered limited

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: asyw24crdda
