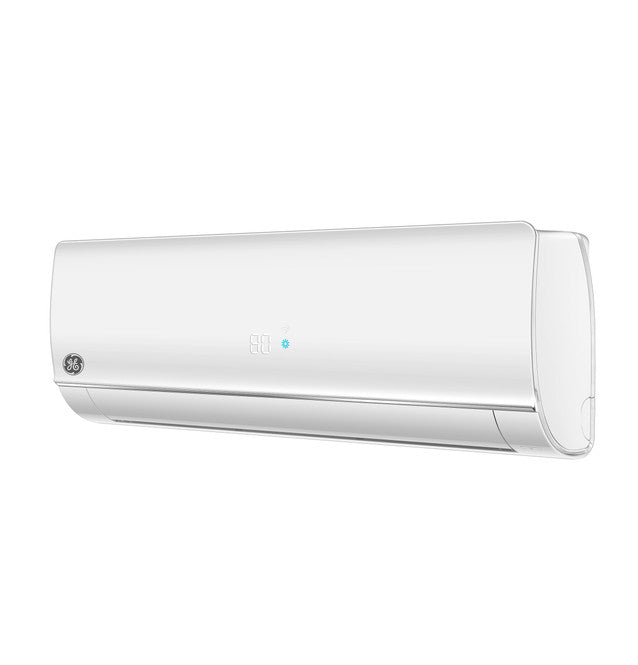

General Electric asyw09crdda Ductless Highwall Indoor Unit

Product Description

The GENERAL ELECTRIC asyw09crdda is a ductless highwall indoor unit designed for split-system mini-split installations. Rated at 9,000 BTU/h and compatible with 208-230 volt electrical service, this unit mounts to an interior wall and serves as the evaporator side of a ductless cooling and heating system. It is sized for individual room or zone applications and is typically installed by licensed HVAC technicians. The unit measures 11.875 inches high by 33.75 inches wide by 7.75 inches deep, making it a compact option for residential and light-commercial single-zone setups.

This indoor unit is intended for ductless mini-split systems where zoned climate control is required without existing ductwork. It is suited for residential bedrooms, living spaces, offices, or additions where running new duct is impractical. The unit pairs with a compatible outdoor condensing unit to form a complete ductless system. Installation is wall-mounted at high position to allow proper airflow distribution across the conditioned space.

Key Features

• 9,000 BTU/h capacity for single-zone cooling and heating applications
• 208-230 volt operation compatible with standard residential and light-commercial electrical service
• Compact highwall form factor at 11.875 inches H x 33.75 inches W x 7.75 inches D
• Ductless design eliminates the need for existing ductwork infrastructure
• Indoor evaporator unit designed to pair with a matching outdoor condensing unit

Compatibility

Designed as an OEM-style ductless highwall indoor evaporator unit for use in single-zone mini-split systems requiring 208-230 volt service at 9,000 BTU/h capacity.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Before any service or wiring work, disconnect power at the breaker and verify the circuit is de-energized. The refrigerant line set connection and system evacuation must be completed by an EPA Section 608 certified technician. Ensure the wall mounting bracket is secured to structural framing capable of supporting the unit weight and vibration loads.

Technical Specifications

• Capacity: 9,000 BTU/h
• Voltage: 208-230 volts
• Height: 11.875 inches
• Width: 33.75 inches
• Depth: 7.75 inches

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: asyw09crdda
