General Electric ash542jcdda Mini-split Heat Pump 42000 Btu

Product Description

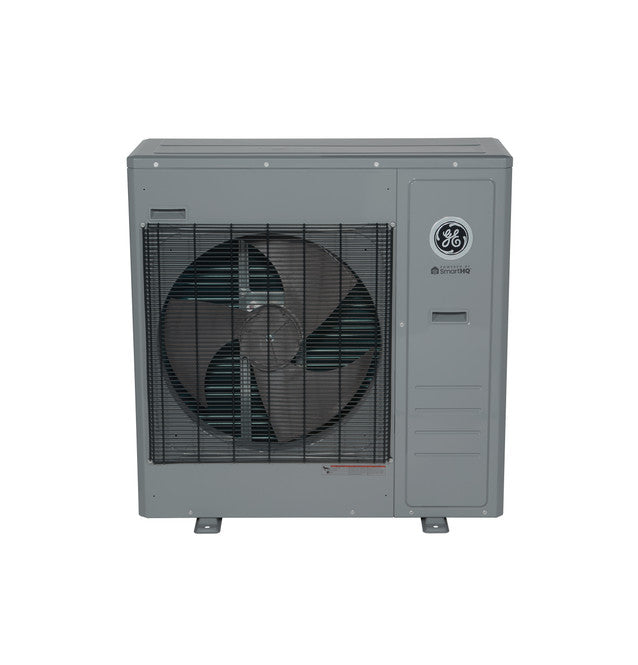

The GENERAL ELECTRIC ash542jcdda is a multi-zone ductless mini-split outdoor heat pump unit rated at 42,000 BTU/h. Designed for the Multilink Series platform, this outdoor condensing unit operates on 208-230 volts and supports up to five indoor air handler zones from a single outdoor cabinet. It provides both heating and cooling capability, making it suitable for year-round climate control in residential and light commercial applications. Licensed HVAC technicians handle the refrigerant line connections, electrical tie-in, and zone commissioning for this type of system.

The ash542jcdda is intended for multi-zone ductless installations where a single outdoor unit serves multiple interior spaces. Typical applications include residential additions, multi-room retrofits, and light commercial spaces where running ductwork is impractical. The unit supports five independently controlled zones, allowing individual room temperature management through matched indoor air handlers. This outdoor heat pump cabinet is designed for exterior installation and must be paired with compatible Multilink Series indoor units to form a complete system.

Key Features

• 42,000 BTU/h capacity supports whole-home or multi-room comfort from one outdoor unit
• Supports up to 5 independent zones with individually controlled indoor air handlers
• 208-230 volt operation compatible with standard single-phase residential and light commercial electrical service
• Heat pump operation provides both heating and cooling from a single system
• Ductless design eliminates the need for supply and return duct infrastructure
• Compact cabinet footprint at 37.5 inches tall, 38 inches wide, and 14.625 inches deep

Compatibility

Designed for use within the GENERAL ELECTRIC Multilink Series ductless mini-split platform. This outdoor unit must be paired with compatible Multilink Series indoor air handlers. No additional specific model compatibility data was provided in the product input.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Before beginning work, de-energize the outdoor disconnect and verify zero voltage at the unit terminals. The outdoor cabinet requires a level, structurally sound mounting surface with adequate clearance on all sides per the manufacturer instructions and local mechanical codes. Do not braze refrigerant lines or perform electrical connections until the unit is fully positioned and secured.

Technical Specifications

• Capacity: 42,000 BTU/h
• Voltage: 208-230 volts
• Number of Zones: 5
• System Type: Ductless Mini-Split Heat Pump
• Height: 37.5 inches
• Width: 38 inches
• Depth: 14.625 inches

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ash542jcdda
