General Electric ash324ncdda Heat Pump 24000 Btu 3 Zone

Product Description

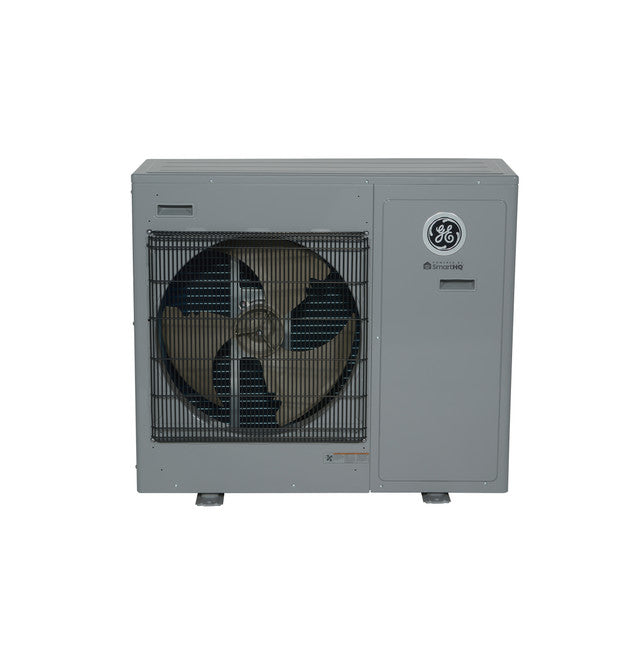

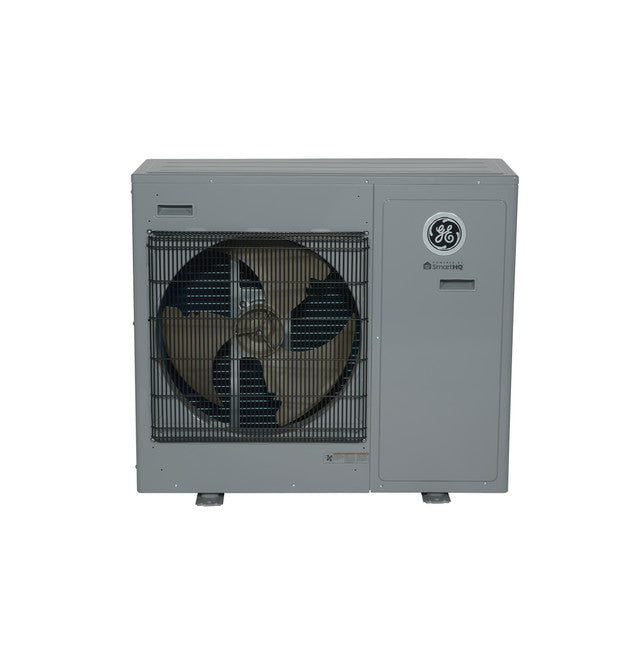

The General Electric ash324ncdda is a multi-zone ductless mini-split outdoor heat pump unit from the Endure Series, designed to condition up to three independent zones from a single outdoor condensing unit. Rated at 24,000 BTU/h and compatible with 208-230 volt single-phase power, this outdoor unit pairs with up to three indoor air handlers to deliver both heating and cooling across separate spaces without ductwork. Installation is performed by licensed HVAC technicians and is suited to residential and light commercial applications where zoned climate control is required.

This unit is designed for multi-zone ductless mini-split system installations where independent temperature control across three separate rooms or areas is needed. Operating on 208-230V power, the ash324ncdda outdoor heat pump serves as the central condensing component of a complete Endure Series multi-zone system. Typical applications include residential homes, condominiums, additions, and commercial spaces where running ductwork is impractical or cost-prohibitive.

Key Features

• 24,000 BTU/h capacity supports up to three simultaneous indoor zones
• Operates on 208-230V single-phase power supply
• Ductless design eliminates the need for forced-air duct infrastructure
• Heat pump operation provides both heating and cooling from one outdoor unit
• Endure Series platform engineered for multi-zone residential and light commercial use

Compatibility

Designed as an OEM-style outdoor condensing unit for use within General Electric Endure Series multi-zone ductless mini-split systems requiring a 3-zone, 24,000 BTU/h outdoor heat pump. Confirm indoor air handler compatibility and combined capacity ratings with the manufacturer before pairing units.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation manual. Disconnect and lock out all electrical power to the system before making any electrical or refrigerant connections. The outdoor unit must be mounted on a level, structurally sound pad or bracket and positioned to maintain the manufacturer-specified clearances for airflow and service access. Refrigerant line set connections require an EPA Section 608-certified technician for proper handling and system charging.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 208-230V
• Number of Zones: 3
• System Type: Ductless Mini-Split Heat Pump
• Configuration: Outdoor Unit
• Series: Endure Series

Standard Information

• Brand: General Electric
• Manufacturer Part Number: ash324ncdda
