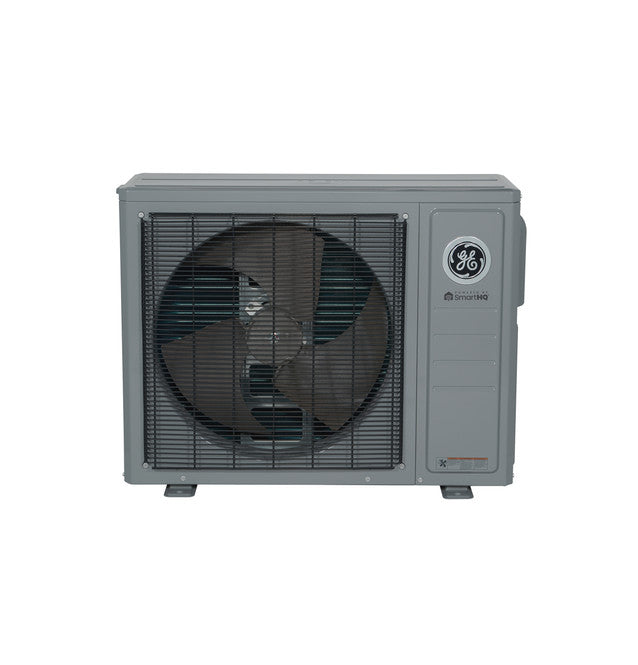

General Electric ash324jcdda Heat Pump 24000 Btu 3 Zone

Product Description

The GENERAL ELECTRIC ash324jcdda is an outdoor condensing unit for a multi-zone ductless mini-split heat pump system, rated at 24,000 BTU/h across three zones. Operating on 208-230 volt single-phase power, it is part of the Multilink Series and delivers both heating and cooling to up to three independently controlled indoor zones. This unit is designed for installation by licensed HVAC technicians in residential and light commercial applications where a central ducted system is not practical or desired.

This outdoor heat pump unit pairs with up to three compatible indoor air handlers, allowing independent temperature control in separate rooms or zones. At 24,000 BTU/h total system capacity, it is suited for multi-room residential installations, small offices, or additions where running ductwork is not feasible. The Multilink Series designation indicates it is engineered for multi-zone configurations rather than single-zone systems.

Key Features

• 24,000 BTU/h total system capacity across three zones
• Operates on 208-230 volt single-phase power supply
• Multi-zone design supports up to three indoor air handlers
• Heat pump operation provides both heating and cooling from a single outdoor unit
• Ductless configuration eliminates the need for supply and return duct infrastructure

Compatibility

Designed as an OEM-style outdoor condensing unit for use with compatible Multilink Series multi-zone ductless mini-split indoor air handlers. Specific indoor unit compatibility should be verified against GENERAL ELECTRIC Multilink Series engineering documentation before purchase.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before servicing the unit or making line set connections. The outdoor unit requires a dedicated electrical circuit sized per NEC requirements for the nameplate ampacity. Confirm local permit and inspection requirements before beginning installation, as multi-zone mini-split systems typically require a mechanical permit.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 208-230 volts
• Number of Zones: 3
• System Type: Ductless Mini-Split Heat Pump
• Unit Configuration: Outdoor Condensing Unit
• Series: Multilink

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ash324jcdda
