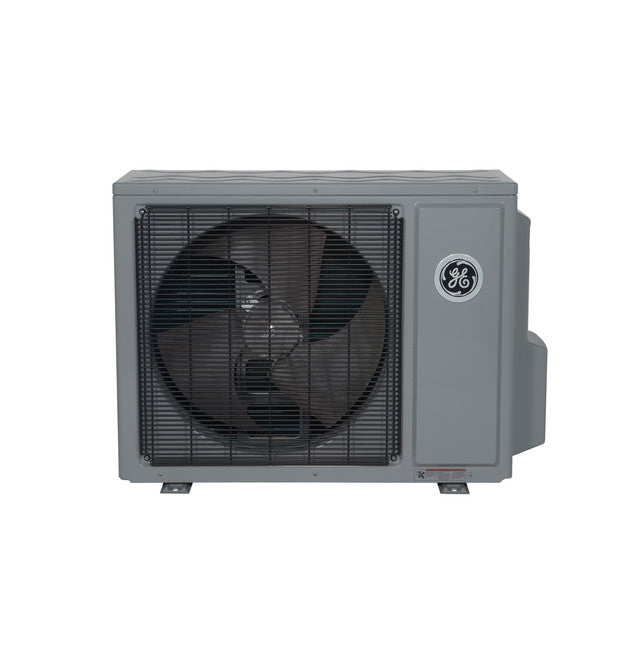

General Electric ash118prdbb Outdoor Heat Pump 18000 Btu/h

Product Description

The GENERAL ELECTRIC ash118prdbb is a single-zone ductless mini-split outdoor heat pump unit from the Altitude Series, designed for residential and light-commercial applications requiring reliable heating and cooling without ductwork. It operates on 208-230 volts, 60 Hz, single phase, and delivers a cooling rated capacity of 17,000 BTU/h. The DC inverter-driven rotary compressor allows variable-speed operation, reducing energy consumption compared to fixed-speed compressors. A blue fin coil coating and base pan heater are included as standard equipment, supporting low-ambient heating operation down to -15 degrees F. Licensed HVAC technicians install and commission this unit as part of a matched split system.

This outdoor unit is intended for single-zone ductless mini-split installations in residential settings where conditioned space cannot be served by a ducted system. It is compatible with the ASYW18PRDBB indoor unit. Maximum line length between the indoor and outdoor sections is 83 feet, and maximum height differential is 50 feet, giving installers flexibility on longer line set runs. The cooling operating temperature range is 14 to 115 degrees F, and the heating operating temperature range extends from -15 to 75 degrees F, making the system suitable for cold-climate installations.

Key Features

• DC inverter-driven rotary compressor for variable-capacity operation and reduced cycling losses
• Low-ambient heating capability down to -15 degrees F for cold-climate use
• Blue fin coil coating for corrosion resistance in coastal or humid environments
• Standard base pan heater prevents ice buildup during low-temperature heating operation
• Flare refrigerant connections on 1/4-inch liquid line and 1/2-inch suction line
• Factory refrigerant charge of 52.2 ounces included

Compatibility

Designed for use with the ASYW18PRDBB indoor unit as part of the 18K Altitude Series single-zone matched system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Shut off and lock out all electrical power to the system before making any electrical or refrigerant connections. Refrigerant line sets use flare fittings; follow the manufacturer's line set length and height differential limits to ensure proper system operation. Local mechanical and electrical codes, including NEC requirements for minimum circuit ampacity and maximum fuse sizing, apply to this installation.

Technical Specifications

• Cooling Rated Capacity: 17,000 BTU/h
• Voltage / Hertz / Phase: 208-230V / 60 Hz / 1-phase
• Minimum Circuit Ampacity: 14 amps
• Maximum Fuse Size: 20 amps
• Compressor Type: DC Inverter Driven Rotary
• Cooling Temperature Range: 14 to 115 degrees F
• Heating Temperature Range: -15 to 75 degrees F
• Outdoor Noise Level: 55 dBA
• Factory Refrigerant Charge: 52.2 ounces
• Liquid Line O.D.: 0.25 inches (flare)
• Suction Line O.D.: 0.5 inches (flare)
• Maximum Line Length: 83 feet
• Maximum Height Differential: 50 feet
• Overall Width: 35 inches
• Overall Height: 27.4375 inches
• Overall Depth: 13.875 inches
• Net Weight: 97.7 pounds
• Approximate Shipping Weight: 117.5 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; 7-year compressor; 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ash118prdbb
