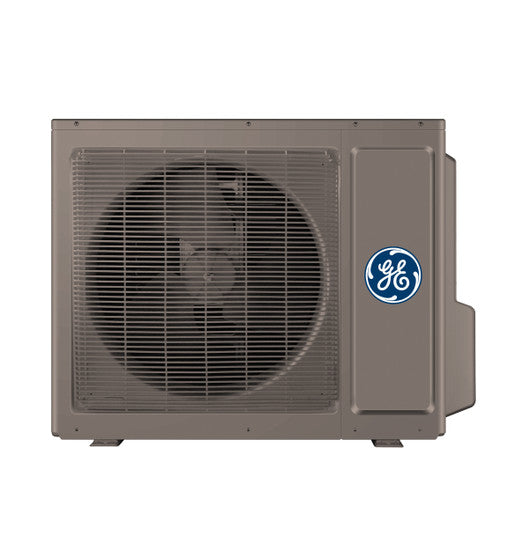

General Electric ASH112URDSE Endure Series Ductless Mini-Split Outdoor Heat Pump System 208-230V 12,000 BTU

Product Description

The GENERAL ELECTRIC ASH112URDSE is an Endure Series 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System. This single-zone outdoor unit features A-PAM DC Inverter compressor technology for high efficiency, achieving SEER2 up to 27 and HSPF2 up to 13. It offers year-round comfort with low ambient heating down to -31F and 100% rated heating capacity at 5 degrees F. A base pan heater prevents freezing, ensuring reliable operation. The unit operates quietly at 54 dBA and includes a Blue Fin hydrophilic aluminum fin.

• High Efficiency Ductless Heat Pump
• A-PAM DC Inverter
• Low Ambient Heating down to -31F

Product Highlights

Quiet operation with Blue Fin technology and base pan heater for enhanced performance.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ASH112URDSE

Technical Specifications

• Color Appearance: Gray
• Compatible Indoor Models: ASYW12URDWD
• Connections: Flare
• Factory Charge (ounces): 62.1
• Maximum Fuse Size A: 20
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 33/10
• Outdoor Noise Level: 54 dBA
• Product Type: Single Zone
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Endure
• Style: Outdoor
• System: 12K Endure
• Temperature Range - Cooling Mode: 14-115 F (-10-46 C)
• Temperature Range - Heating Mode: -31-75 F (-35-24 C)
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 12,000
• Minimum Circuit Amp: 14
• Voltage/Hertz/Phase: 208-230/60/1
