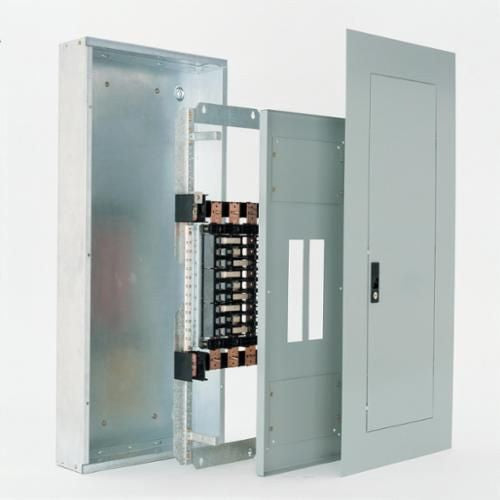

General Electric AQU1302RCXAXT1B4 Lighting Panelboard Interior 240 VAC 100 to 225 Ampere 30 Circuits 20 Inch W x 5.81 Inch D x 43.5 Inch H

Product Description

The GENERAL ELECTRIC AQU1302RCXAXT1B4 is a main breaker type lighting panelboard interior designed for 1-phase 3-wire circuit configurations. It operates at 240 VAC with a current rating of 100 to 225 Ampere and features a 65 Kiloampere interrupting rating. This panelboard supports up to 30 circuits with bolt-on branch breaker mounting and copper bus material, suitable for lighting and distribution applications. Its dimensions are 20 Inch W x 5.81 Inch D x 43.5 Inch H.

• Main breaker type lighting panelboard interior with 240 VAC voltage and 100 to 225 Ampere current rating.
• Supports up to 30 circuits with bolt-on branch breaker mounting and copper bus material.
• Features a 65 Kiloampere interrupting rating and UL approval for lighting and distribution applications.

Product Highlights

Main breaker lighting panelboard interior with 30 circuits, 240 VAC, and 65 kA interrupting rating for electrical distribution.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AQU1302RCXAXT1B4

Technical Specifications

• Type: Main Breaker
• Voltage Rating: 240 VAC
• Current Rating: 100 to 225 Ampere
• Circuit Configuration: 1-Phase 3-Wire
• Main Breaker Type: THQB/THHQB/THQD/TEY/TQD/SE/SF/FE
• Interrupting Rating: 65 Kiloampere
• Branch Breaker Type: THQB/THHQB/TXQB
• Branch Breaker Mounting: Bolt-On
• Maximum Number of Circuits: 30
• Bus Material: Copper
• Enclosure/Trim Size: 20 Inch W x 5.81 Inch D x 43.5 Inch H
• Application: Lighting/Distribution
• Approval: UL, UL 67, cUL Listed
• Buy Line: GED
• Frequency Rating: 50/60 Hz
• Series: A-Series II Pro Stock
• Short Circuit Rating: 100000 RMS Symmetrical
• Enclosure Type: NEMA 1/3R/12
