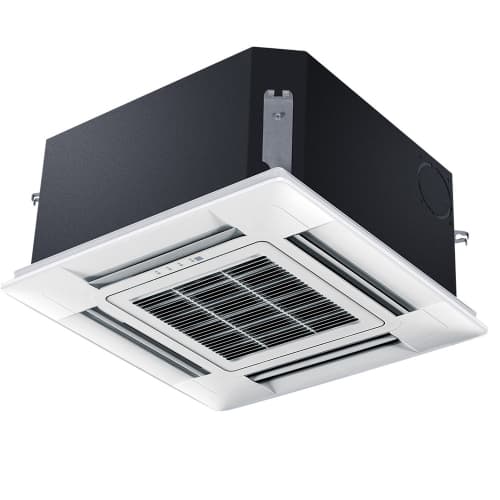

General Electric AB12SC2VHA Arctic Series Compact Cassette Air Handler 12K BTU 208V-230V

Product Description

The GENERAL ELECTRIC AB12SC2VHA Arctic Series Compact Cassette Air Handler is a 12,000 BTU/H unit designed for 208V-230V electrical systems. This compact air handler utilizes R-410A refrigerant and features a built-in condensate pump for efficient water removal. It is suitable for HVAC cooling applications, fitting into 2x2 drop ceilings and offering a 5-speed fan.

• 12,000 BTU/H cooling capacity; operates on 208V-230V power.
• Compact design fits 2x2 drop ceilings with easy access PCB and quick mounting template.
• Built-in condensate pump automatically removes condensate water from the unit efficiently.

Product Highlights

Compact 12,000 BTU/H air handler with R-410A refrigerant and integrated condensate pump.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AB12SC2VHA

Technical Specifications

• Part Number: AB12SC2VHA
• Certifications: cETLus Listed, AHRI Certified, Energy Star
• Cooling Capacity: 12000 BTU/H
• Phase: 1 Ph
• Fan Speeds: 5-Speed
• Max Noise Level: 42 dB-A
• Voltage: 208V-230V
• Refrigerant: R-410A
• Suction Line Size: 3/8
