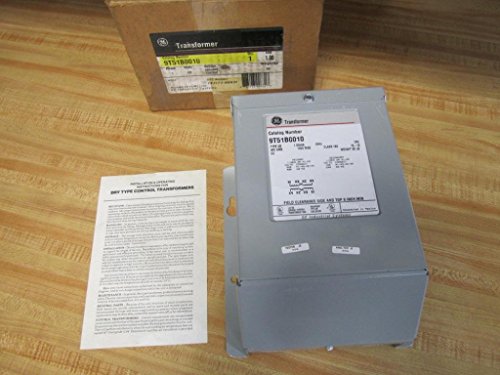

GENERAL ELECTRIC 9T51B0010 Type QB Dry Type Encapsulated General Purpose Transformer 1 kVA

Product Description

The GE Type QB Dry Type Encapsulated General Purpose Transformer is designed to meet a diverse range of application needs, ensuring reliable performance under industrial conditions. Manufactured by General Electric with the MPN 9T51B0010, this transformer is UL and cUL listed, complying with NEMA ST-20 and standards 506 and 1561, ensuring the highest level of reliability and safety.

• Efficient operation with primary voltage of 240/480 VAC and secondary voltage of 120/240 VAC.
• Designed for indoor and outdoor use with NEMA 3R rated enclosure for environmental protection.
• Utilizes a high-grade silicon steel core for optimal performance.

Product Highlights

This General Electric transformer is an encapsulated dry type, ideal for reducing electrical noise and enhancing operational safety. Its design supports various industrial applications without requiring a vault for installation, allowing it to be located near load points for improved voltage accuracy and reduced transmission losses.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• MPN: 9T51B0010

Technical Specifications

• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 1 kVA
• Enclosure Type: NEMA 3R
• Phase: Single
• Temperature Rating: 40 degrees Celsius
• Mounting Type: Wall-mounted
