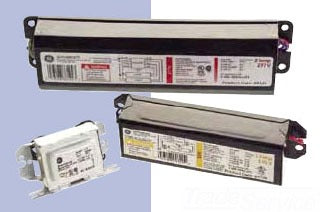

General Electric 74472 GE240PS-MV-N Fluorescent Electronic Ballast 120 to 277 V (1 or 2 Lamps)

Product Description

The General Electric 74472 GE240PS-MV-N is a fluorescent electronic ballast designed for one or two F34T12 lamps. It operates effectively across multiple voltages ranging from one hundred twenty to two hundred seventy-seven volts.

• Multi-voltage technology.
• High-performance for general fluorescent applications.
• Lightweight and compact design.

Product Highlights

This ballast supports parallel lamp operation for simplified maintenance and is ideal for a wide range of lighting tasks.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 043168744720

Technical Specifications

• Approval: UL, CUL, FCC
• Ballast Factor: 0.89
• Circuit Type: Normal Output
• Frequency Rating: 60 Hz
• Input Current: 0.41/0.19/0.67/0.3 Ampere
• Input Power: 48/74/73 W
• Input Voltage: 120 to 277 V
• Lamp Style: Linear
• Lamp Type: F20T12, F30T12, F30T12/WM, F34T12, F40T10, F40T12
• Lamp Wattage: 20/30/34/40 W
• Maximum THD: 27 Percent
• Minimum Starting Temperature: 50 Deg F
• Number Of Lamps: 1 or 2
• Power Factor: 0.99/0.95/0.97
• Size: 9.5 inches x 1.3 inches x 1.18 inches
• Starting Type: Rapid
• Wiring: Parallel
