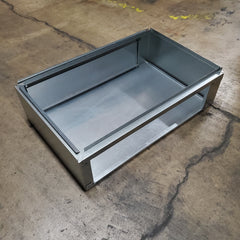

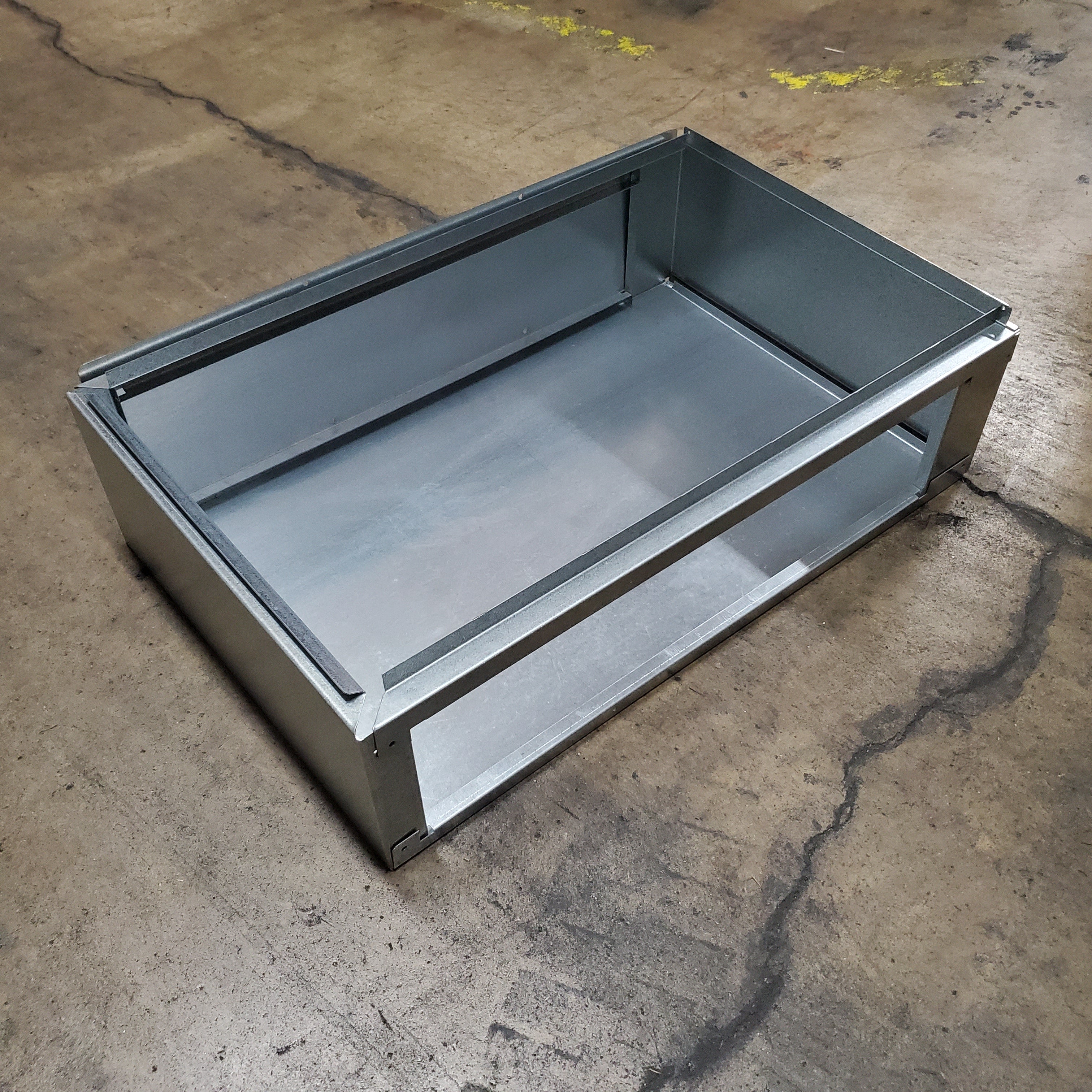

General Electric 68W63 Return Air Base Cabinet C Series

Product Description

The GENERAL ELECTRIC 68W63 is a return air base designed for C-cabinet HVAC installations. The return air base forms the foundation of a vertical air handler or furnace cabinet, creating the intake plenum that draws conditioned space air back into the system for reconditioning. It is a structural and airflow component installed at the base of the cabinet, ensuring proper return air routing and system integrity. Licensed HVAC technicians typically handle installation as part of a new equipment setup or cabinet replacement.

This return air base is suited for residential and light commercial HVAC applications using C-cabinet configuration equipment. It is used in vertical system installations where the return air enters from below the unit. Correct cabinet sizing and base compatibility are critical to maintaining proper static pressure and airflow balance throughout the system.

Key Features

• Designed specifically for C-cabinet vertical HVAC configurations
• Provides dedicated return air intake pathway at the base of the cabinet
• Supports structural mounting of the air handler or furnace cabinet
• OEM-style replacement or new-installation component

Compatibility

Designed as an OEM-style return air base for C-cabinet configuration HVAC systems. Consult equipment documentation to confirm cabinet size and base fitment before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the system before beginning any cabinet or base work. Verify that the base dimensions align with the existing ductwork rough-in before securing the cabinet. Follow local mechanical codes and manufacturer guidelines for sealing and securing the return air plenum to prevent air leakage.

Technical Specifications

• Product Type: Return Air Base
• Cabinet Size: C Cabinet
• Category: HVAC

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 68W63
