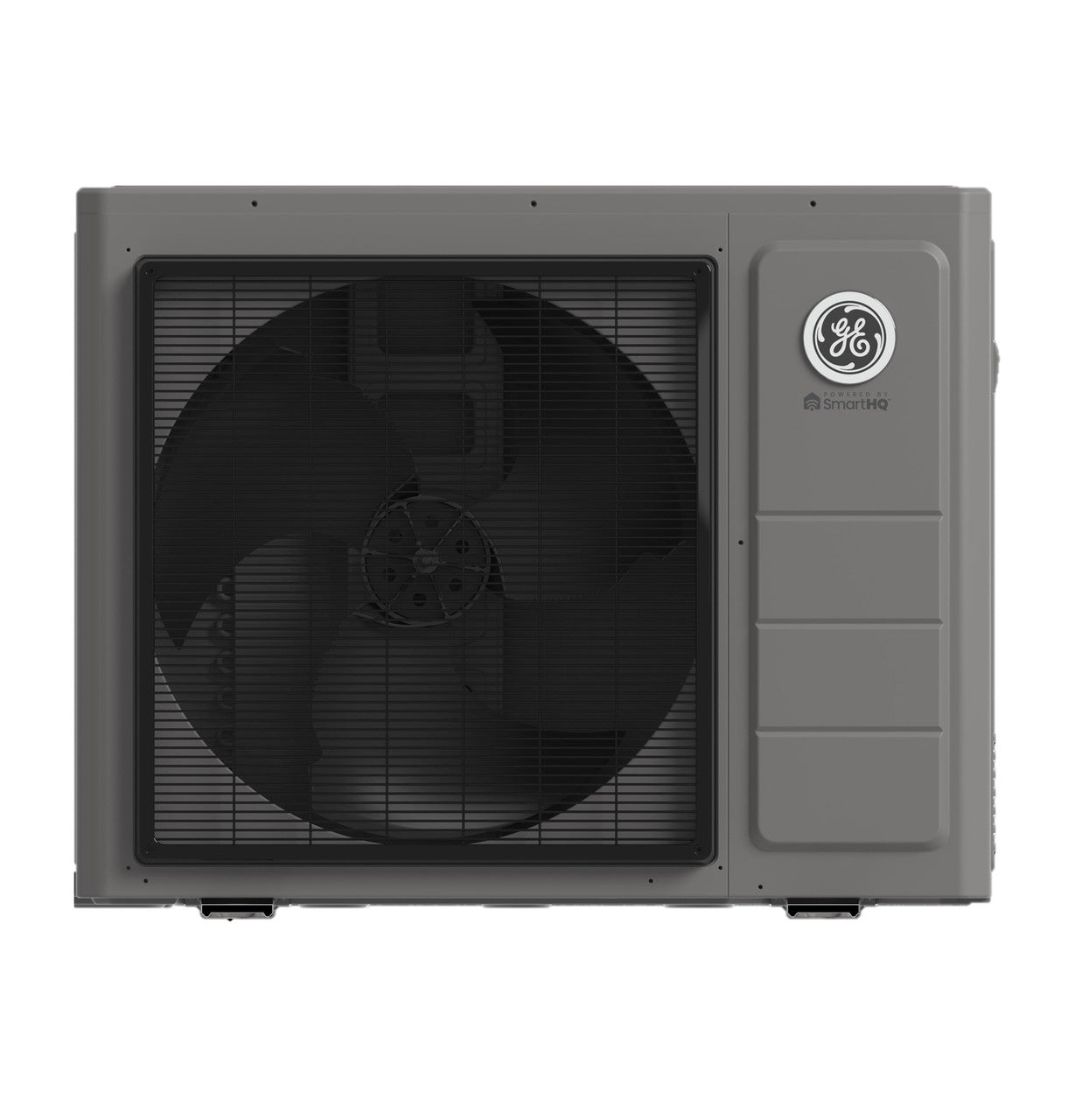

General Electric 4G36ED2BEA Endure Series 4-Zone 36,000 BTU 208-230V Ductless Mini-Split Outdoor Heat Pump

Product Description

The GENERAL ELECTRIC 4G36ED2BEA is an ADA compliant outdoor unit from the Endure Series, designed for multi-zone ductless mini-split systems. This heat pump features a DC Inverter Driven Rotary compressor and uses R454B refrigerant. It supports up to 4 indoor models with a maximum line length of 230 feet and a maximum height of 50 feet. Operating in cooling mode from -14°F to 115°F and heating mode from -22°F to 75°F, it provides 36,000 BTU/Hr cooling capacity and includes a base pan heater.

• ADA Compliant design for accessibility.
• Built-in WiFi, powered by SmartHQ™, for real-time feedback and optimized performance.
• DC Inverter Driven Rotary compressor and R454B refrigerant for efficient operation.

Product Highlights

This 4-zone outdoor heat pump offers 36,000 BTU/Hr cooling, a base pan heater, and SmartHQ™ WiFi connectivity for enhanced control.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 4G36ED2BEA

Technical Specifications

• Color: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: Select Indoor Units
• Connections: Flare
• Factory Refrigerant Charge: 113 ounces
• Maximum Fuse Size: 40 A
• Maximum Height: 50 ft (15 m)
• Maximum Line Length: 230 ft (70 m)
• Number of Indoor Units Supported: 4
• Outdoor Noise Level: 60 dB
• Product Type: Multi Zone
• Refrigerant Type: R454B
• Compressor Type: DC Inverter Driven Rotary
• Series: Endure Multi
• Installation Style: Outdoor
• System Configuration: 4-Zone Endure Multi
• Cooling Temperature Range: -14°F to 115°F (-10°C to 46°C)
• Heating Temperature Range: -22°F to 75°F (-30°C to 24°C)
• Unit Type: Outdoor
• Cooling Capacity: 36,000 BTU/Hr
• Minimum Circuit Amperage: 35 A
• Input Voltage: 208-230V AC
• Frequency: 60 Hz
• Phase: Single-Phase
• Liquid Refrigerant Line O.D.: 1/4 inch (x4)
• Suction Refrigerant Line O.D.: 3/8 inch (x3), 1/2 inch (x1)
• Part Number: 4G36ED2BEA
• Certifications: cETLus Listed
