General Electric 4g36ad2bea Heat Pump 36000 Btu 4 Zone

Product Description

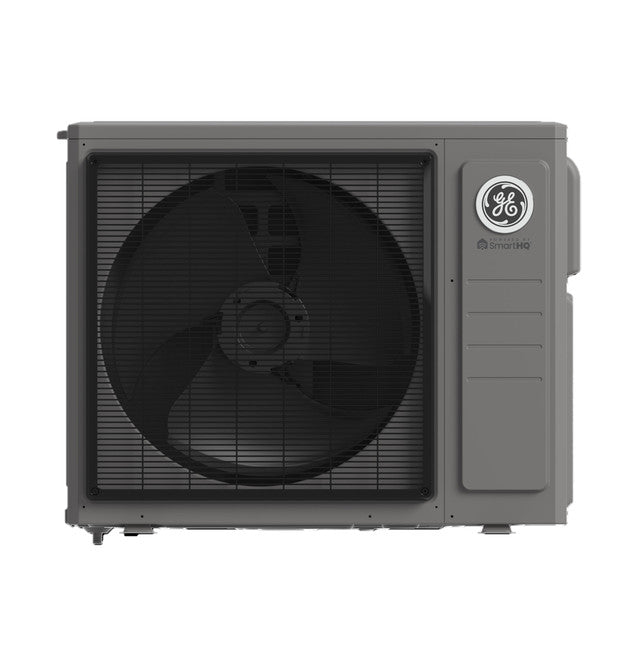

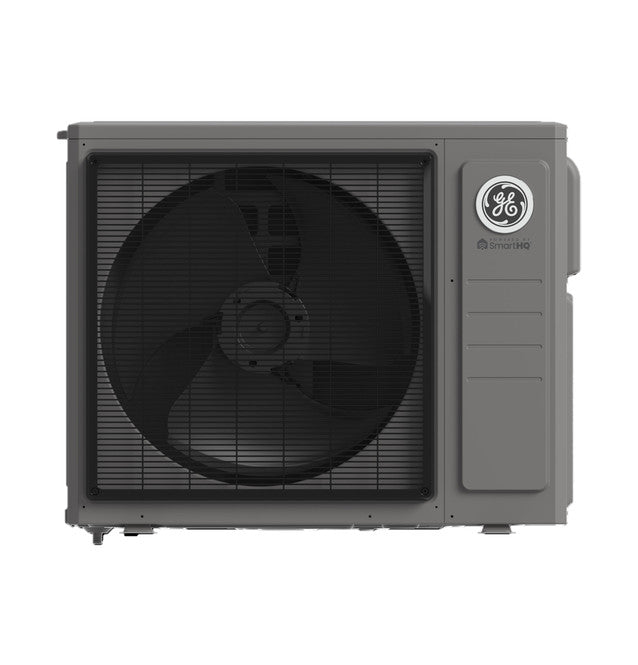

The General Electric 4g36ad2bea is a ductless mini-split outdoor heat pump unit from the Altitude Series, rated at 36,000 BTU/h and designed for 4-zone operation on a 208-230 volt electrical supply. It serves as the outdoor condensing unit in a multi-zone ductless system, providing both heating and cooling capacity across up to four independently controlled indoor air handlers. HVAC technicians install this unit as part of a complete mini-split system where ducted distribution is not practical or desired. The 36,000 BTU/h capacity class is common in mid-size residential and light commercial applications.

This outdoor unit is suited for multi-zone ductless installations in residential and light commercial settings. It is paired with compatible Altitude Series indoor air handler units to deliver zoned comfort control. The 4-zone configuration allows each connected indoor unit to operate independently, making it appropriate for buildings where individual room or area temperature control is a priority. Installations typically occur in new construction and retrofit projects where duct installation is not feasible.

Key Features

• 36,000 BTU/h capacity supports up to four independent zones
• Operates on 208-230 volt single-phase power supply
• Ductless design eliminates the need for forced-air duct distribution
• Outdoor condensing unit provides both heating and cooling in a single system
• Part of the Altitude Series ductless mini-split product line

Compatibility

Designed for use with Altitude Series 4-zone ductless mini-split indoor air handler units as part of a complete multi-zone system.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Shut off and lock out all electrical power to the circuit before making any electrical connections. The outdoor unit requires a dedicated circuit sized to the unit nameplate amperage per NEC requirements, and the installation must comply with all applicable local mechanical and electrical codes. Refer to the manufacturer installation manual for refrigerant line sizing, line set length limits, and mounting clearance requirements before beginning work.

Technical Specifications

• Capacity: 36,000 BTU/h
• Voltage: 208-230 volts
• Zones: 4
• System Type: Ductless Mini-Split Outdoor Heat Pump
• Series: Altitude

Standard Information

• Brand: General Electric
• Manufacturer Part Number: 4g36ad2bea
