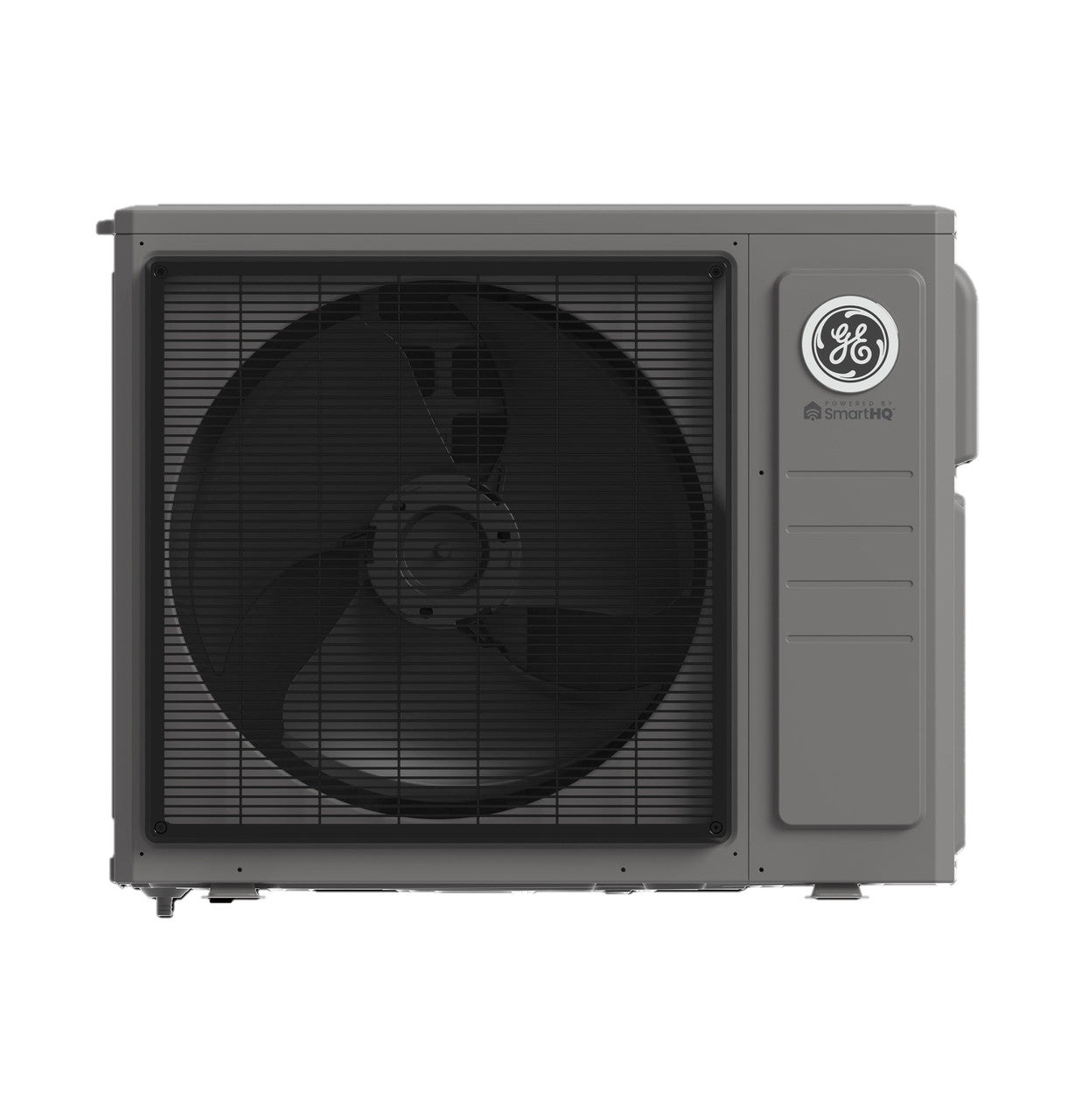

General Electric 3G24ED2BEA Endure Series 3-Zone Ductless Mini-Split Outdoor Heat Pump 208-230V 24,000 BTU

Product Description

The General Electric 3G24ED2BEA is an Endure Series 3-Zone 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump. This multi-zone outdoor unit features a DC Inverter Driven Rotary compressor and a base pan heater to prevent ice buildup. It operates with R454B refrigerant and supports up to three indoor models, providing efficient cooling and heating for various applications. The system has a cooling rated capacity of 24,000 BTU/Hr.

• Built-in Wifi, Powered by SmartHQ™ for real-time feedback and optimized performance.
• Base Pan Heater prevents ice build-up and ensures consistent operation.
• DC Inverter Driven Rotary Compressor for efficient and reliable performance.

Product Highlights

Multi-zone outdoor heat pump with SmartHQ™ WiFi, base pan heater, and DC inverter technology.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 3G24ED2BEA

Technical Specifications

• Color: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: Select Indoor Units
• Connections: Flare
• Refrigerant Factory Charge: 71 ounces
• Maximum Fuse Size: 30 A
• Maximum Height: 50 ft (15 m)
• Maximum Line Length: 197 ft (60 m)
• Number of Indoor Models: 3
• Outdoor Noise Level: 57 dB
• Product Type: Multi Zone
• Refrigerant Type: R454B
• Compressor Type: DC Inverter Driven Rotary
• Series: Endure Multi
• Style: Outdoor
• System Type: 3-Zone Endure Multi
• Cooling Temperature Range: -14-115°F (-10-46°C)
• Heating Temperature Range: -22-75°F (-30-24°C)
• Unit Type: Outdoor
• Cooling Rated Capacity: 24,000 BTU/Hr
• Minimum Circuit Amperage: 21 Amp
• Voltage/Hertz/Phase: 208-230V/60Hz/1 Phase
• Liquid Refrigerant Line O.D.: 1/4", 1/4", 1/4"
• Suction Refrigerant Line O.D.: 3/8", 3/8", 3/8"
• Certifications: cETLus Listed
