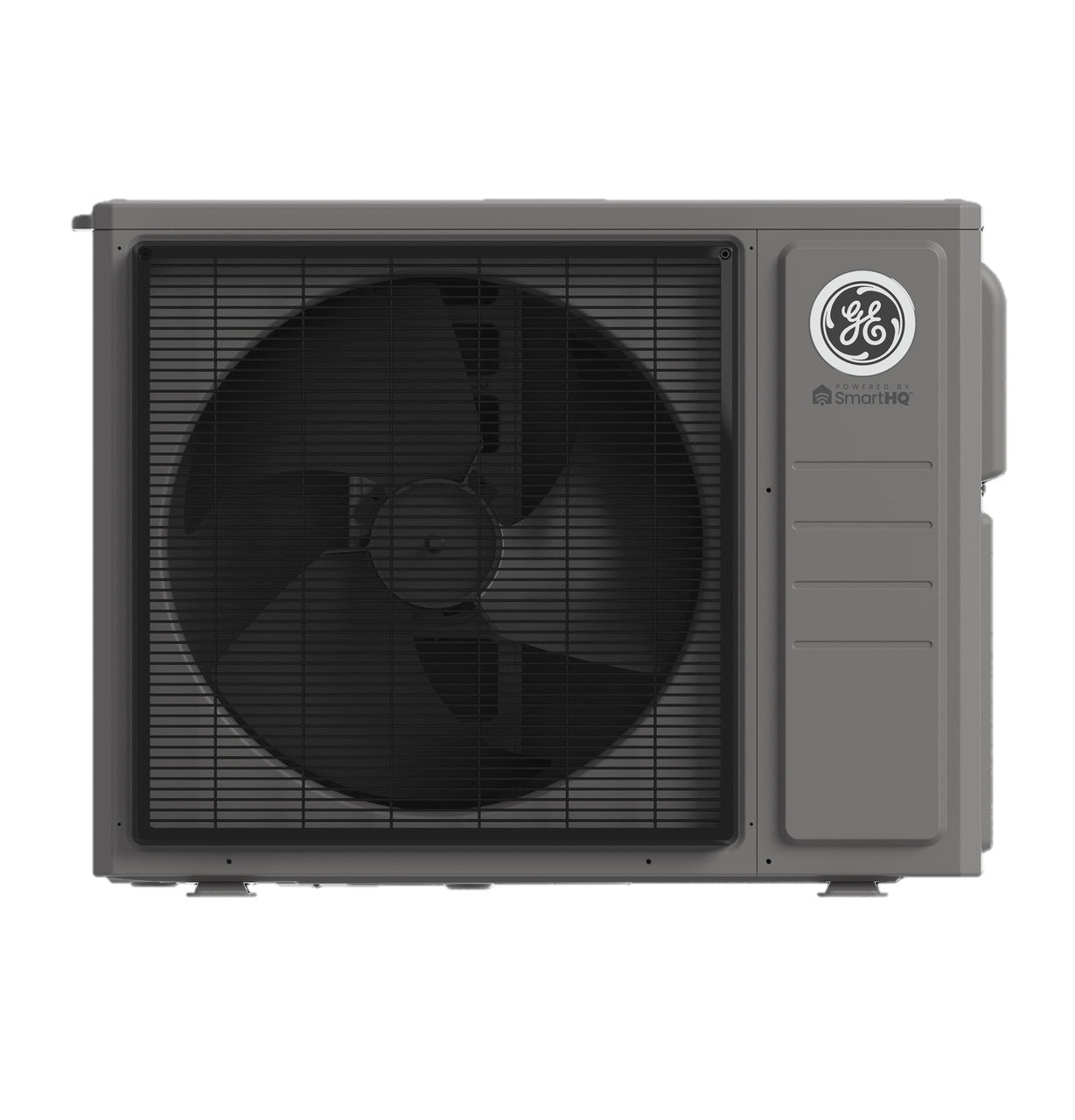

General Electric 3G24AD2BEA Altitude Series 208-230V 3-Zone 24,000 BTU Ductless Mini-Split Outdoor Heat Pump

Product Description

The GENERAL ELECTRIC 3G24AD2BEA Altitude Series is a 208-230V 3-Zone 24,000 BTU ductless mini-split outdoor heat pump. It features a DC inverter driven rotary compressor and flare connections. This multi-zone system supports up to three indoor models and uses R454B refrigerant. The unit operates in cooling mode from 14-115°F and in heating mode from -4-75°F.

• Compatible with select indoor units
• Maximum line length of 197 feet
• Equipped with a DC Inverter Driven Rotary compressor

Product Highlights

This outdoor unit is designed for multi-zone applications, providing efficient heating and cooling with a wide temperature range.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 3G24AD2BEA

Technical Specifications

• Color Appearance: Gray
• Base Pan Heater: No
• Compatible Indoor Models: Select Indoor Units
• Connections: Flare
• Factory Charge (ounces): 60
• Maximum Fuse Size A: 25
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 197/60
• Number of Indoor Models: 3
• Outdoor Noise Level: 53
• Product Type: Multi Zone
• Refrigerant Type: R454B
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Altitude Multi
• Style: Outdoor
• System: 3-Zone Altitude Multi
• Temperature Range - Cooling Mode: 14-115°F (-10-46°C)
• Temperature Range - Heating Mode: -4-75°F (-20-24°C)
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 24,000
• Minimum Circuit Amp: 18
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4", 1/4", 1/4"
• Overall Depth: 14.5 in
• Overall Height: 27.5625 in
• Overall Width: 36 in
• Suction O.D. Refrigerant Line: 3/8", 3/8", 3/8"
• Heating Capacity: 27000 BTU/H
• Maximum Amperage: 25 Amp
• Maximum Voltage: 208V-230V
• Refrigerant: R-454B
• Suction Line: 3/8
• Certificate: cETLus Listed, AHRI Certified
