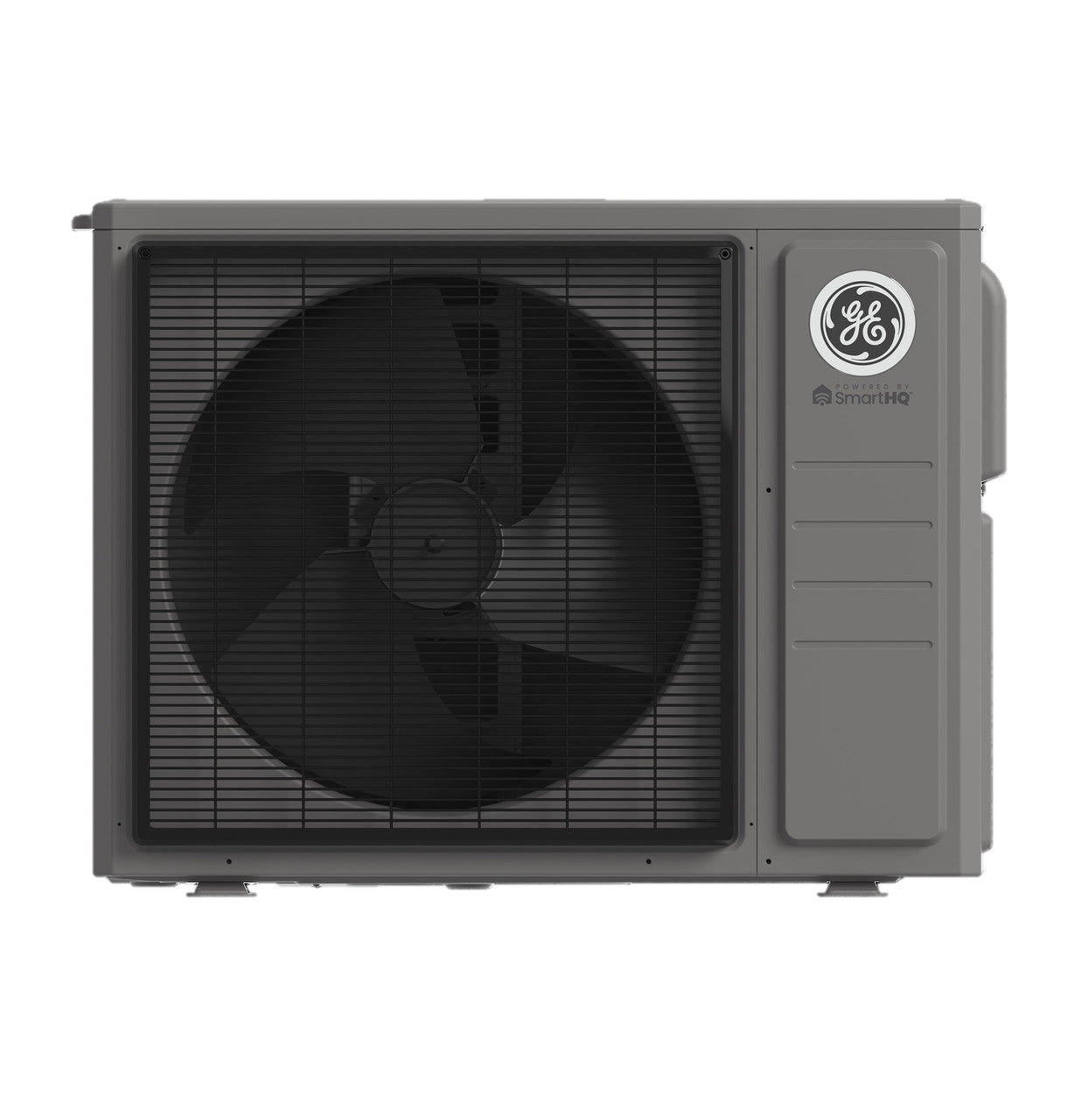

General Electric 2G18AD2BEA Altitude Series 18,000 BTU Ductless Mini-Split Outdoor Heat Pump

Product Description

The GENERAL ELECTRIC 2G18AD2BEA Altitude Series 208-230V 2-Zone 18,000 BTU Ductless Mini-Split Outdoor Heat Pump features a DC inverter driven rotary compressor and flare connections. It is designed for multi-zone systems, supporting up to two indoor models with R454B refrigerant. The condenser operates efficiently in both cooling and heating modes.

• Compatible with select indoor units
• Temperature range in cooling mode: 14-115°F (-10-46°C)
• Temperature range in heating mode: -4-75°F (-20-24°C)

Product Highlights

This outdoor heat pump provides efficient cooling and heating for multi-zone applications, utilizing a DC inverter rotary compressor and R454B refrigerant.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 2G18AD2BEA

Technical Specifications

• Color Appearance: Gray
• Base Pan Heater: No
• Compatible Indoor Models: Select Indoor Units
• Connections: Flare
• Factory Charge (ounces): 53
• Maximum Fuse Size A: 25
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 98/30
• Number of Indoor Models: 2
• Outdoor Noise Level: 52
• Product Type: Multi Zone
• Refrigerant Type: R454B
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Altitude Multi
• Style: Outdoor
• System: 2-Zone Altitude Multi
• Temperature Range - Cooling Mode: 14-115°F (-10-46°C)
• Temperature Range - Heating Mode: -4-75°F (-20-24°C)
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 18,000
• Minimum Circuit Amp: 16
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4", 1/4"
• Overall Depth: 14.5 in
• Overall Height: 27.5625 in
• Overall Width: 36 in
• Suction O.D. Refrigerant Line: 3/8", 3/8"
• Maximum Amperage: 25 Amp
• Maximum Voltage: 208V-230V
• Refrigerant: R-454B
• Suction Line: 3/8
• Certificate: cETLus Listed, AHRI Certified
• Cooling Capacity: 18000 BTU/H
