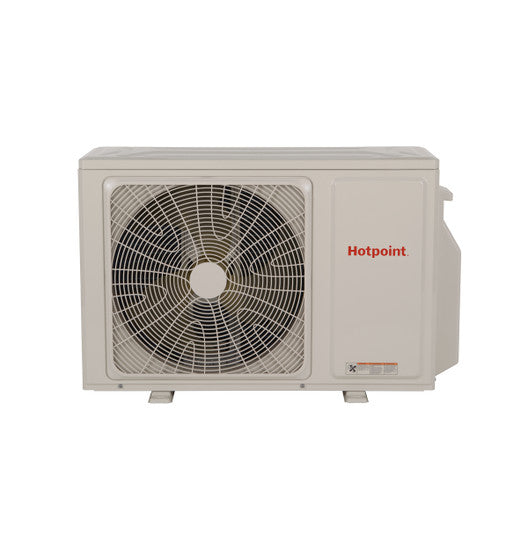

General Electric 1H12HN2DAA Hotpoint Ductless Mini-Split Outdoor Heat Pump System 12,000 BTU

Product Description

The General Electric 1H12HN2DAA is a Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System designed for single-zone applications. This outdoor unit utilizes R32 refrigerant and features a DC Inverter Driven Rotary compressor, providing efficient cooling and heating. It operates on 208-230V/60/1 power, with a cooling rated capacity of 12,000 BTU/Hr. The system supports a wide temperature range for both cooling and heating modes, making it suitable for various climates.

• Features a DC Inverter Driven Rotary compressor for energy-efficient operation.
• Compatible with HW12HN2DAA indoor models, using flare connections for refrigerant lines.
• Offers a cooling temperature range of 14-115 F (-10-46 C) and heating range of -15-75 F (-26-24 C).

Product Highlights

Single zone outdoor heat pump system with 12,000 BTU cooling capacity and R32 refrigerant.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1H12HN2DAA

Technical Specifications

• Compatible Indoor Models: HW12HN2DAA
• Connections: Flare
• Refrigerant Factory Charge: 25.8 ounces
• Maximum Fuse Size: 15 A
• Maximum Height: 33 ft (10 m)
• Maximum Line Length: 66 ft (20 m)
• Outdoor Noise Level: 55 dBA
• Product Type: Single Zone
• Refrigerant Type: R32
• Compressor Type: DC Inverter Driven Rotary
• Series: Hotpoint
• System: 12K Hotpoint
• Cooling Temperature Range: 14-115 F (-10-46 C)
• Heating Temperature Range: -15-75 F (-26-24 C)
• Unit Type: Outdoor
• Cooling Capacity: 12,000 BTU/Hr
• Minimum Circuit Amperage: 12 A
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid Refrigerant Line O.D.: 1/4 inch
• Net Weight: 67.9 lb
• Overall Depth: 11 in
• Overall Height: 21.75 in
• Overall Width: 31.5 in
• Suction Refrigerant Line O.D.: 3/8 inch
