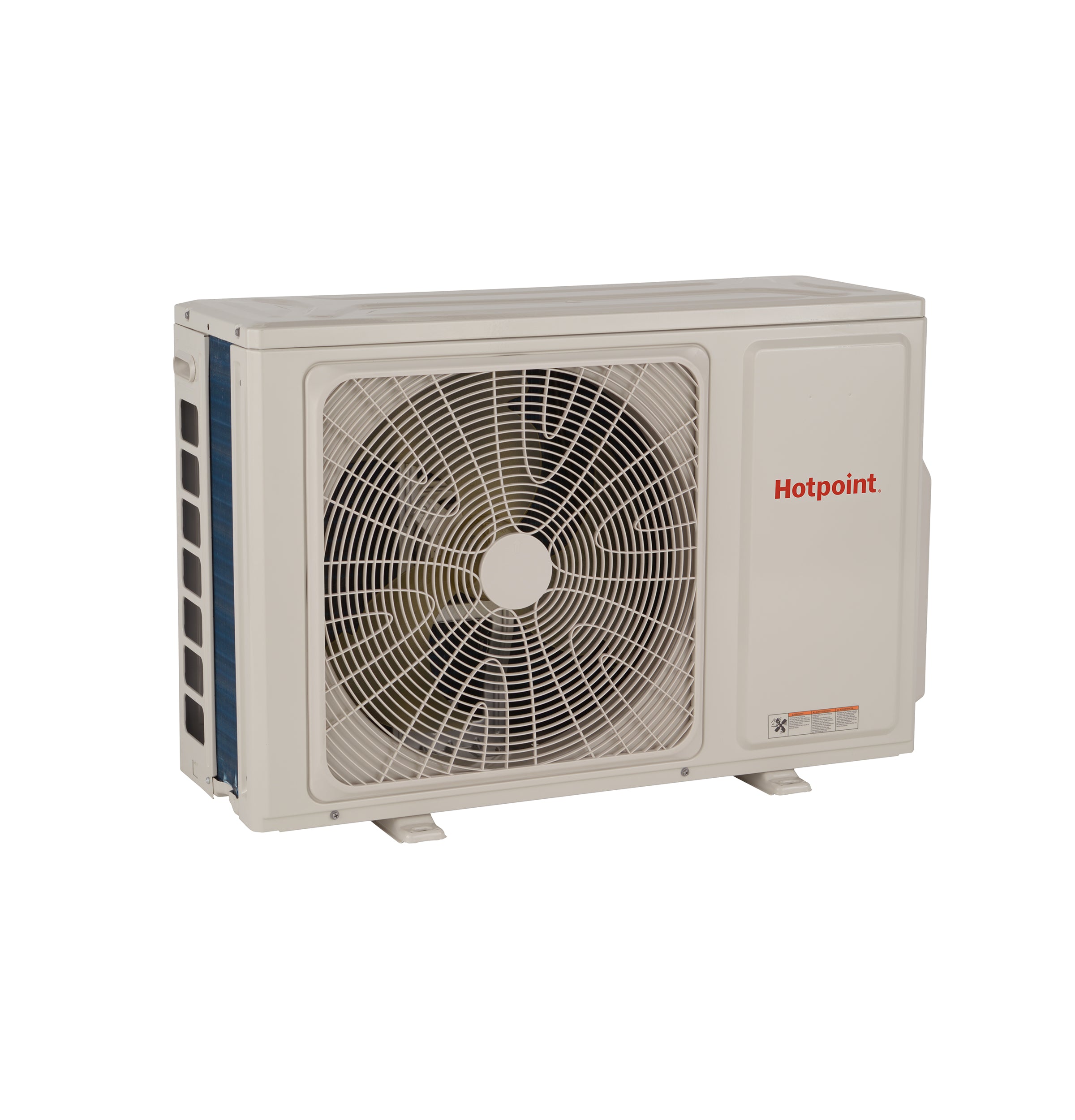

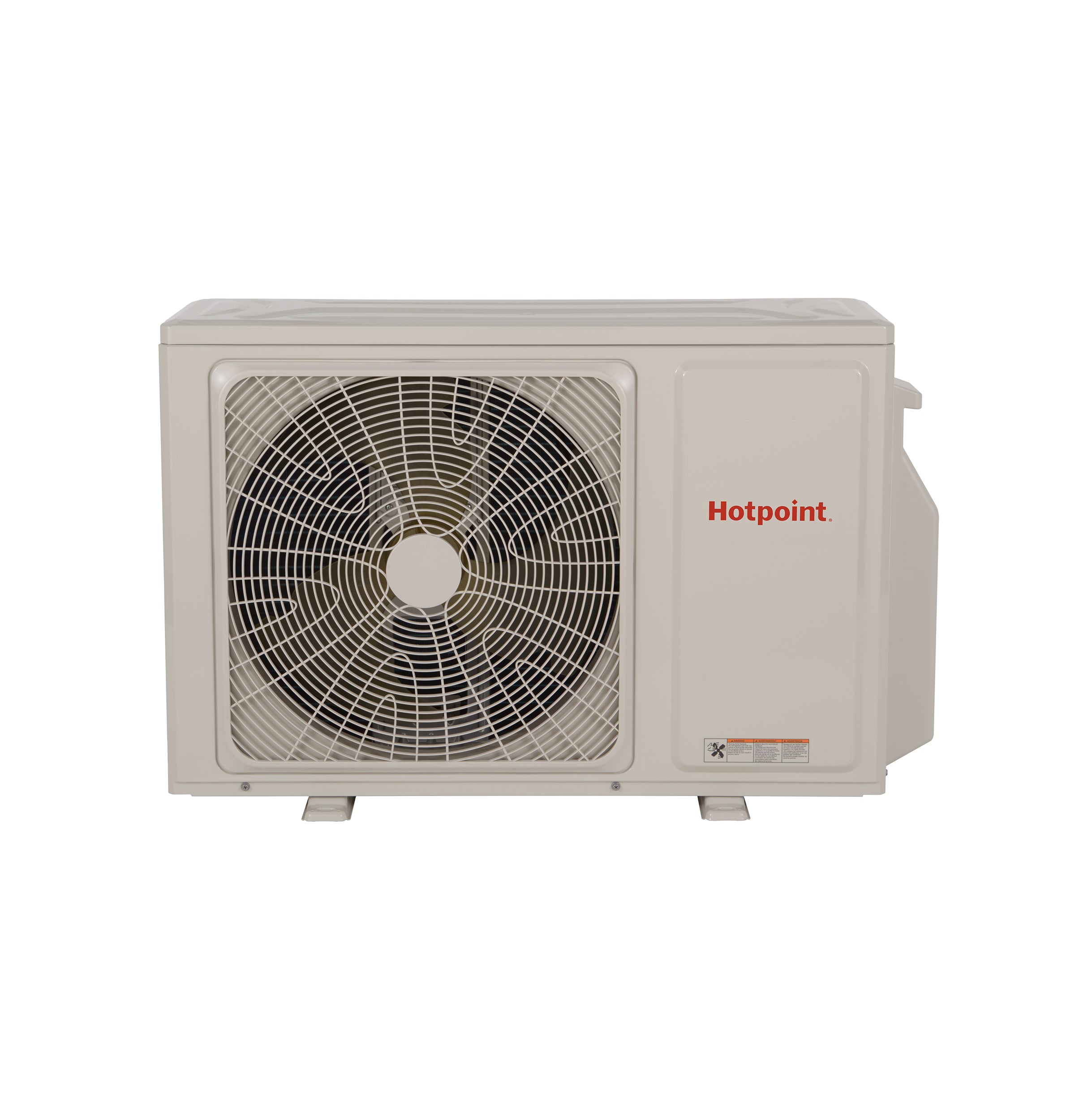

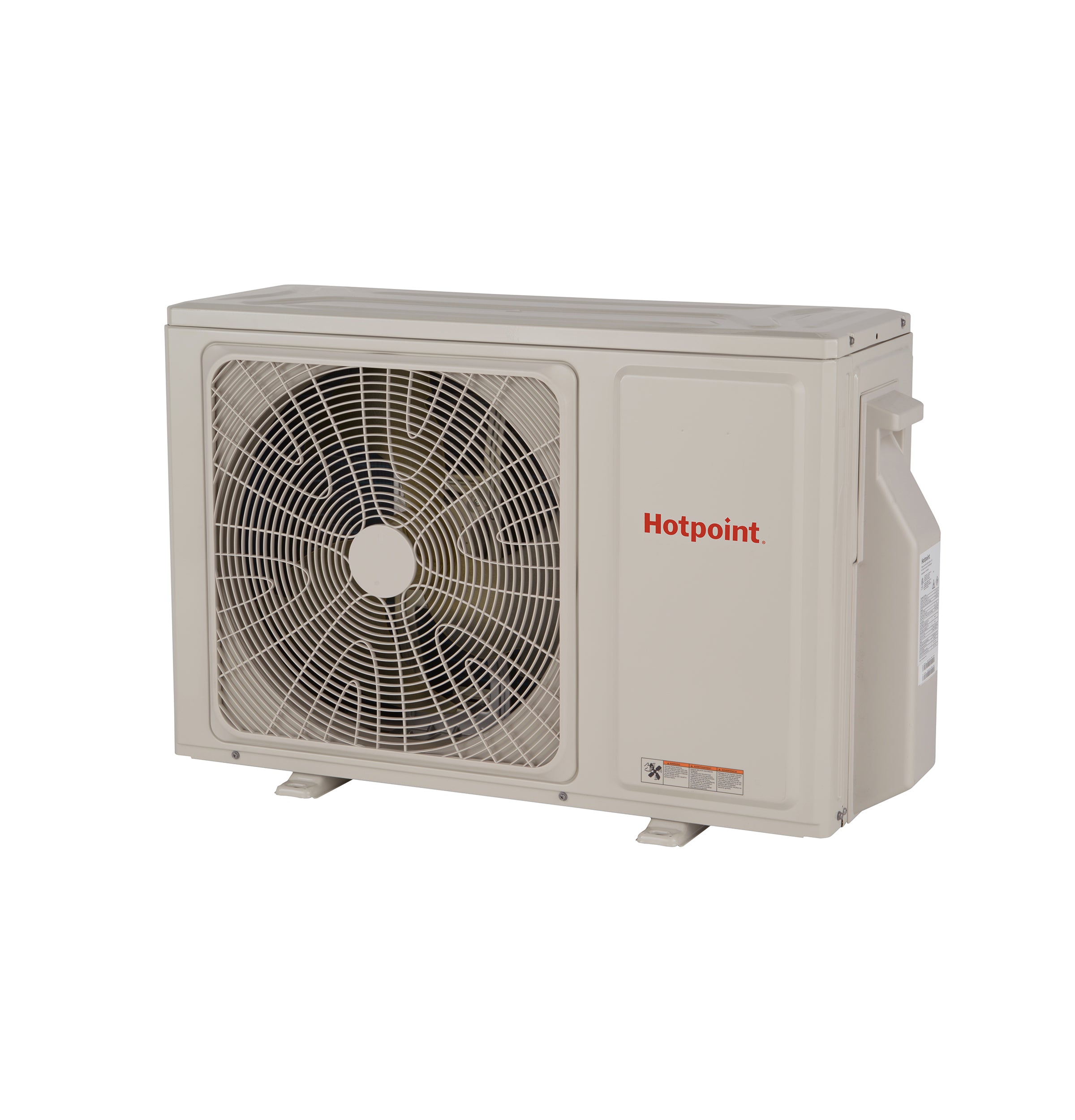

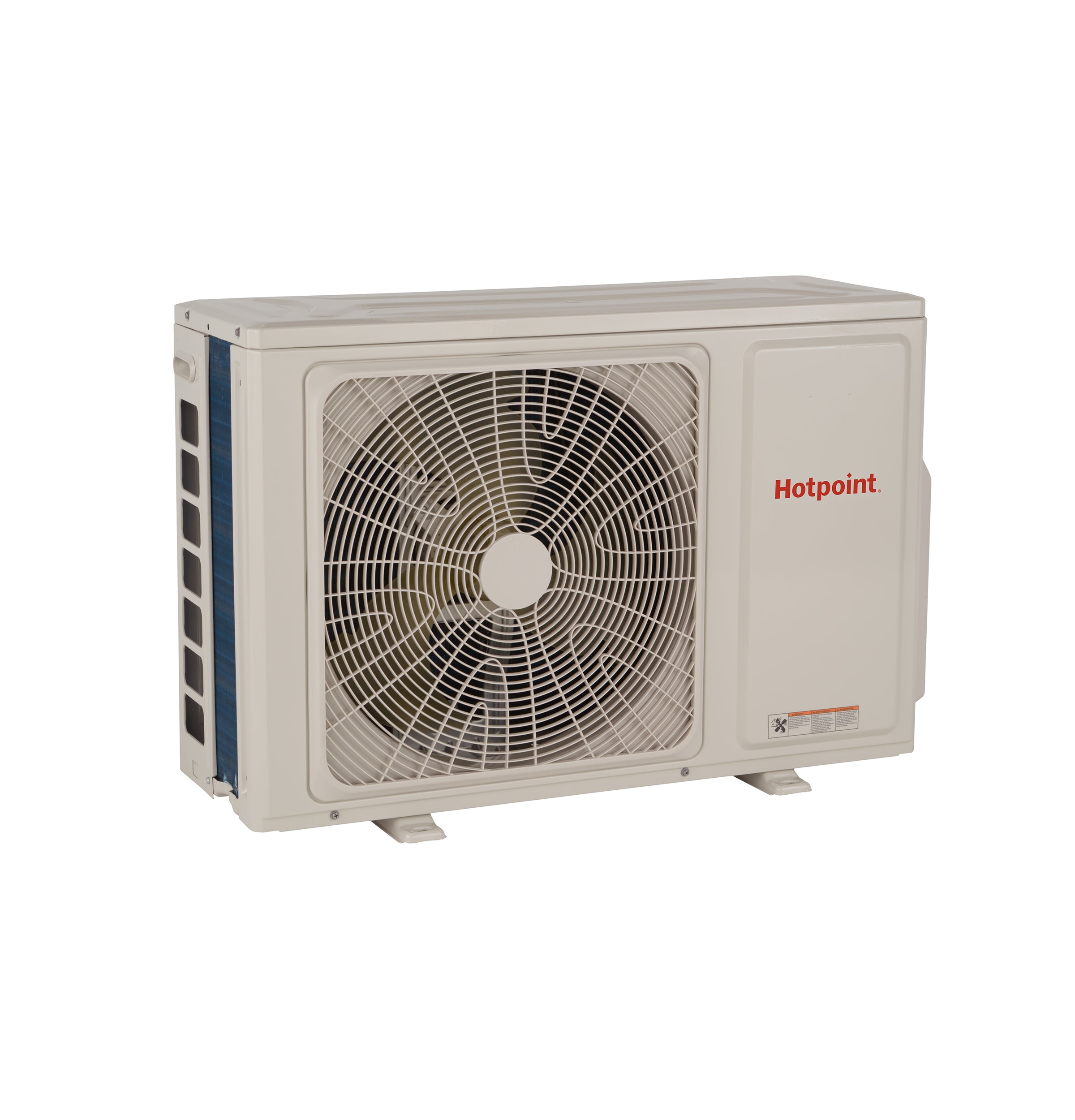

General Electric 1H09HN2DAA Hotpoint 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Product Description

The GENERAL ELECTRIC 1H09HN2DAA is a Hotpoint 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System. This single-zone outdoor unit operates at 208-230V and features a DC inverter compressor for efficient climate control. It provides heating down to -15°F and cooling up to 115°F, ensuring all-season comfort. The system uses R32 refrigerant and includes a protective base pan heater for reliable performance in varied outdoor conditions.

• High Efficiency Ductless Heat Pump (18 SEER2 and 9.5 HSPF2)
• High-Performance Inverter Technology
• All-Season Comfort (heating down to -15°F, cooling up to 115°F)

Product Highlights

Built with a hydrophilic aluminum fin to prevent condensation and includes a protective base pan heater for peak performance.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1H09HN2DAA

Technical Specifications

• Product Type: Single Zone
• Refrigerant Type: R32
• Style: Outdoor
• System: 9K Hotpoint
• Compressor Type: DC Inverter Driven Rotary
• Cooling Temperature Range: 14-115 F (-10-46 C)
• Heating Temperature Range: -15-75 F (-26-24 C)
• Unit Type: Outdoor
• Compatible Indoor Models: HW09HN2DAA
• Maximum Fuse Size: 15 A
• Outdoor Noise Level: 55 dBA
• Series: Hotpoint
• Connections: Flare
• Factory Refrigerant Charge: 25.8 oz
• Liquid Refrigerant Line O.D.: 1/4"
• Suction Refrigerant Line O.D.: 3/8"
• Voltage/Hertz/Phase: 208-230/60/1
• Minimum Circuit Amperage: 12 A
• Cooling Rated Capacity: 9,000 BTU/Hr
