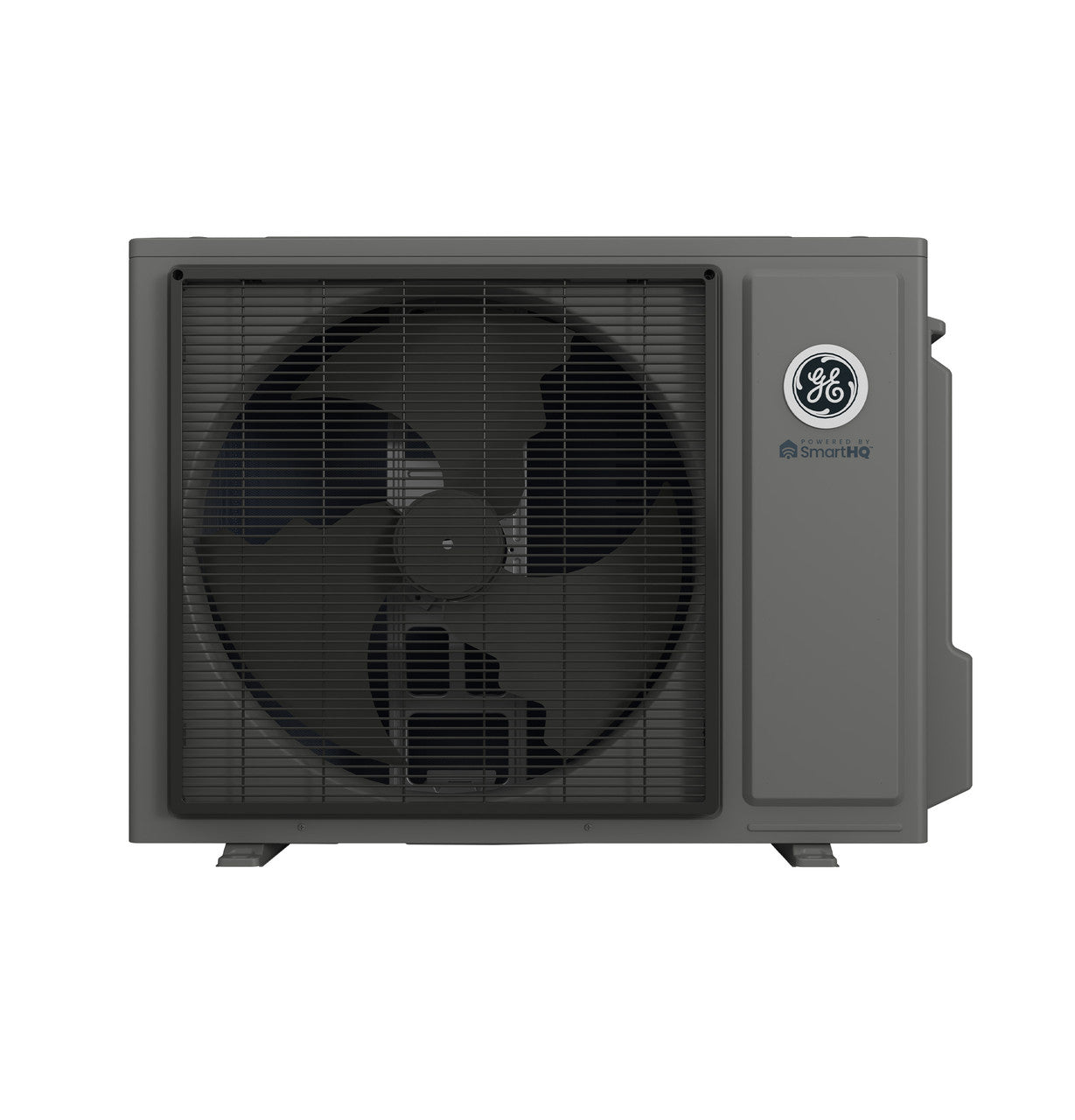

General Electric 1G18ED2BEA Endure Series 18,000 BTU Ductless Mini-Split Outdoor Heat Pump 208-230V

Product Description

The General Electric 1G18ED2BEA is an Endure Series 18,000 BTU Ductless Mini-Split Outdoor Heat Pump, designed for single-zone heating and cooling. This outdoor unit operates on 208-230V/60Hz/1 Phase power, featuring a DC Inverter Driven Rotary compressor and R454B refrigerant. It provides a cooling rated capacity of 17,000 BTU/Hr and a heating mode temperature range of -31-75°F (-35-24°C).

• Equipped with built-in WiFi, powered by SmartHQ, for real-time feedback and optimized performance.
• Compatible with specific indoor models including GS18WP2BEA, US18CB2BEA, US18FB2BEA, and US18MB2BEA.
• Features a base pan heater and uses flare connections for refrigerant lines, with a maximum line length of 83 ft.

Product Highlights

Single-zone outdoor heat pump with SmartHQ WiFi, DC Inverter Driven Rotary compressor, and wide temperature range.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1G18ED2BEA

Technical Specifications

• Color Appearance: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: GS18WP2BEA, US18CB2BEA, US18FB2BEA, US18MB2BEA
• Connections: Flare
• Factory Charge: 58.6 ounces
• Maximum Fuse Size: 30 A
• Maximum Height: 50 ft / 15 m
• Maximum Line Length: 83 ft / 25 m
• Outdoor Noise Level: 60
• Product Type: Single Zone
• Refrigerant Type: R454B
• Rotary Compressor: DC Inverter Driven Rotary
• Series: Endure
• Style: Outdoor
• System: 18K Endure
• Temperature Range - Heating Mode: -31-75°F (-35-24°C)
• Unit Type: Outdoor
• Cooling Rated Capacity: 17,000 BTU/Hr
• Minimum Circuit Amperage: 20 A
• Input Voltage/Frequency/Phase: 208-230V/60Hz/1 Phase
• Liquid Refrigerant Line O.D.: 1/4"
• Suction Refrigerant Line O.D.: 1/2"
