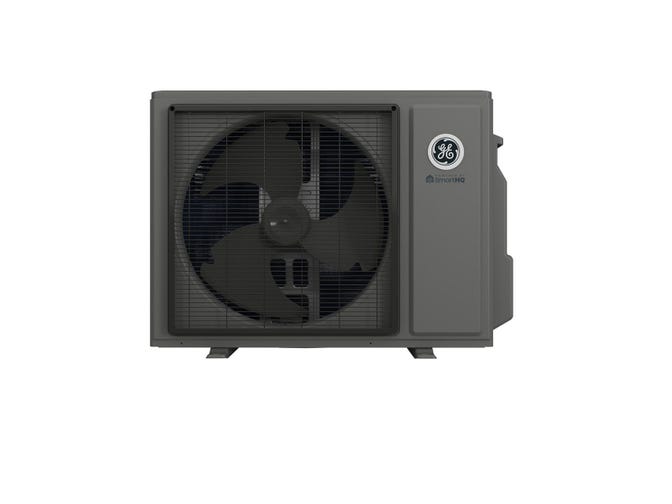

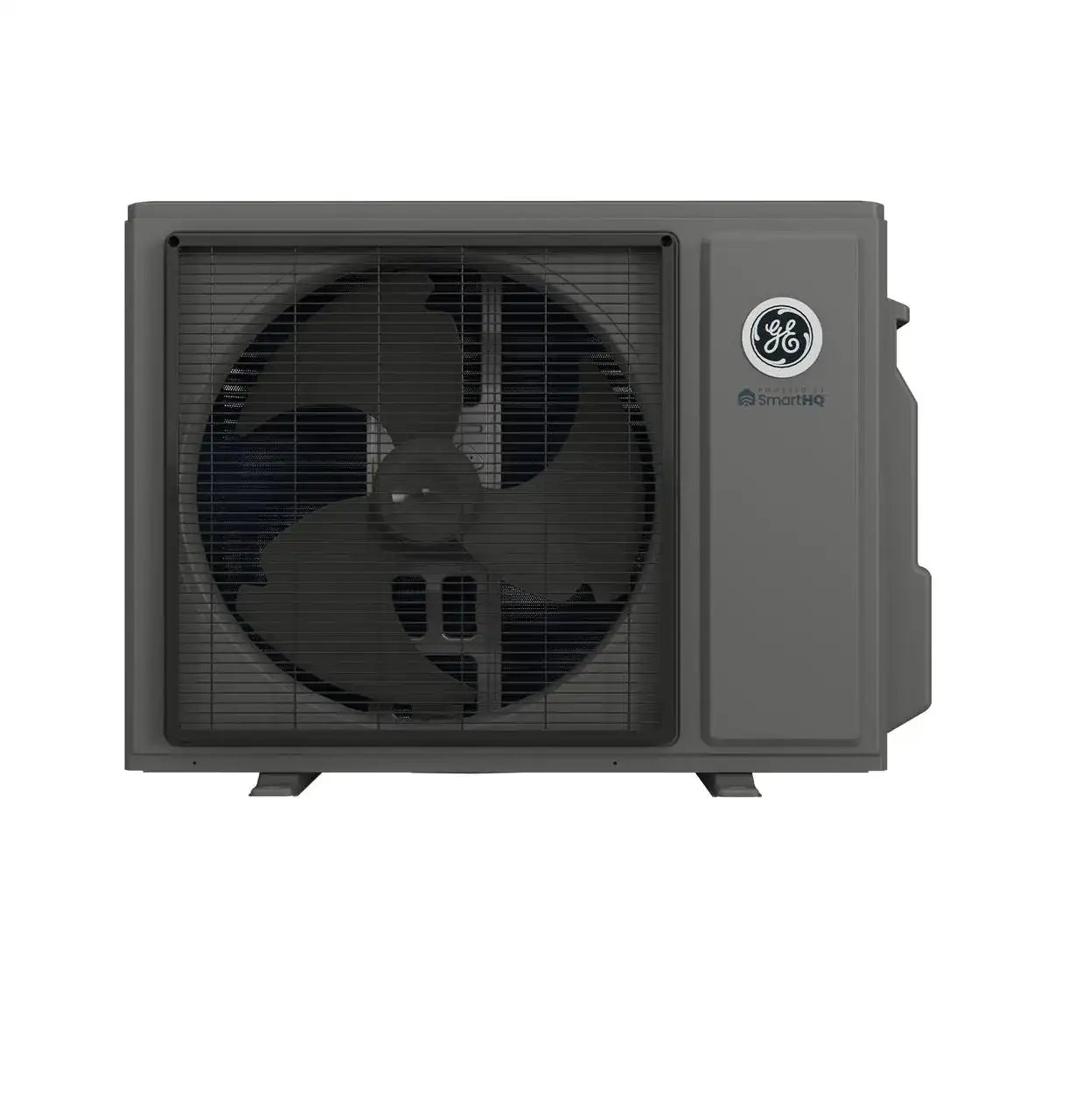

General Electric 1G15AD2BEA Altitude Series 15,000 BTU 208-230V Ductless Mini-Split Outdoor Heat Pump

Product Description

The GENERAL ELECTRIC 1G15AD2BEA Altitude Series 15,000 BTU Ductless Mini-Split Outdoor Heat Pump is a single zone outdoor unit for efficient heating and cooling. It features a DC Inverter Driven Rotary compressor and a base pan heater, operating with R454B refrigerant. This unit offers a wide temperature range for cooling (-40°F to 115°F) and heating (-15°F to 75°F). With a SEER2 rating of 21 and an HSPF2 rating of 9.5, it provides energy-efficient climate control for various applications.

• Base Pan Heater for enhanced cold weather performance.
• DC Inverter Driven Rotary Compressor for efficient operation.
• SEER2 rating of 21 and HSPF2 rating of 9.5 for energy efficiency.

Product Highlights

Energy-efficient 15,000 BTU outdoor heat pump with wide operating temperature range.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1G15AD2BEA

Technical Specifications

• Base Pan Heater: Yes
• Compatible Indoor Models: GS15WB2BEA
• Connections: Flare
• Refrigerant Factory Charge: 50.09 ounces
• HSPF2 Rating: 9.5
• Maximum Fuse Size: 20 A
• Maximum Height: 33 ft (10 m)
• Maximum Line Length: 66 ft (20 m)
• Outdoor Noise Level: 58 dB
• Product Type: Single Zone
• Refrigerant Type: R454B
• Compressor Type: DC Inverter Driven Rotary
• SEER2 Rating: 21
• Series: Altitude
• Unit Style: Outdoor
• System Type: 15K Altitude
• Cooling Temperature Range: -40°F to 115°F (-40°C to 46°C)
• Heating Temperature Range: -15°F to 75°F (-26°C to 24°C)
• Unit Type: Outdoor
• Cooling Rated Capacity: 13,500 BTU/Hr
• Minimum Circuit Amperage: 14 A
• Voltage / Hertz / Phase: 208/230V / 60Hz / 1 Phase
• Liquid Refrigerant Line O.D.: 1/4 inch
• Suction Refrigerant Line O.D.: 3/8 inch
• MPN: 1G15AD2BEA
• Certifications: cETLus Listed, AHRI Certified
• Fan Speeds: 5-Speed
• Item Type: Mini Splits
• Brand: GE Appliances
• Manufacturer: GE Appliances
• Sub Type: Single Zone Heat Pump
