General Electric 1G12ED2BEA Endure Series Ductless Mini-Split Outdoor Heat Pump 208-230V 12,000 BTU

Product Description

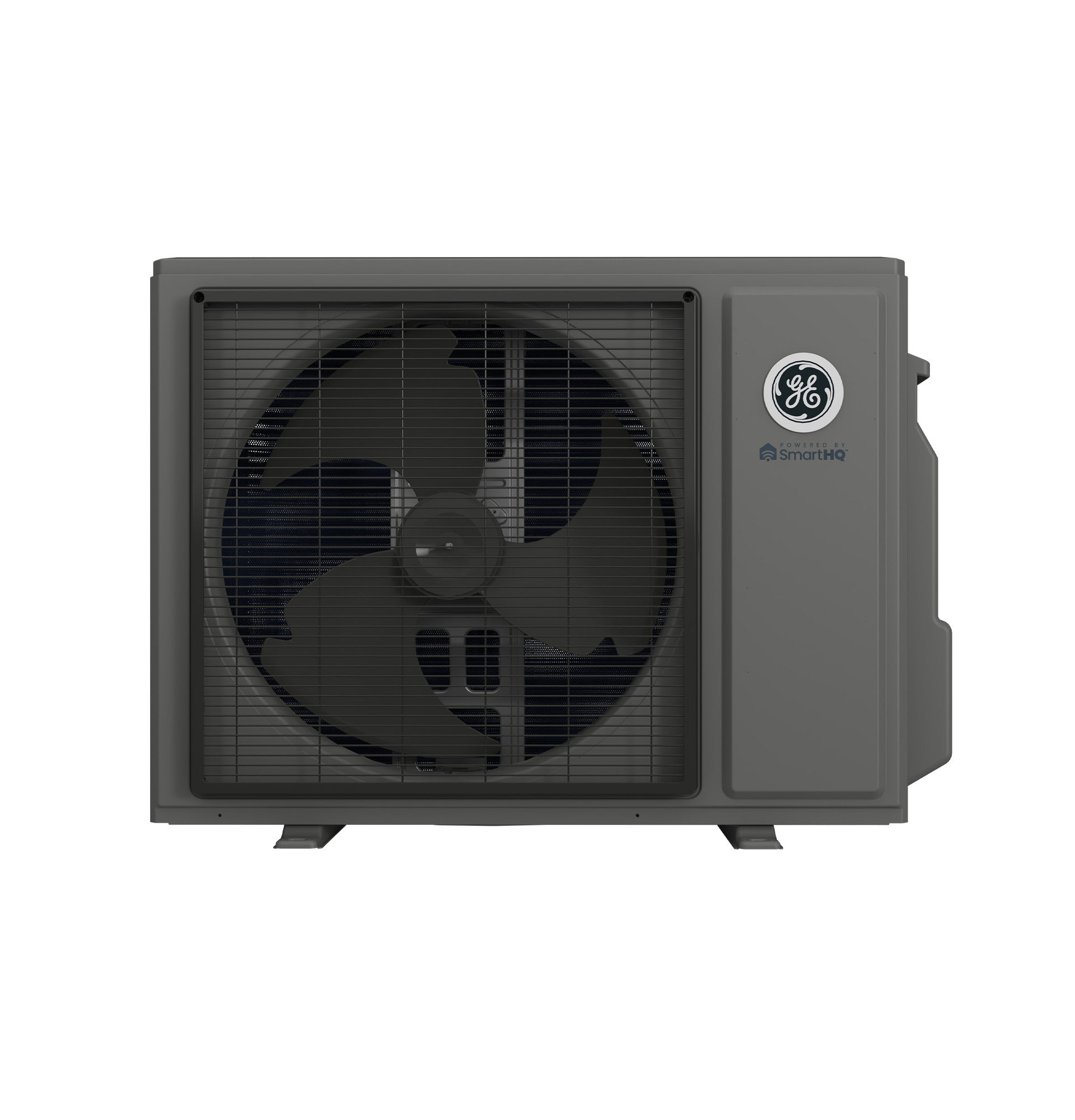

The General Electric 1G12ED2BEA is an Endure Series 208-230V 12,000 BTU ductless mini-split outdoor heat pump. This single-zone unit features a DC Inverter Driven Rotary Compressor and uses R454B Refrigerant. It includes a base pan heater and offers a heating temperature range of -31 to 75°F. With a cooling capacity of 12,000 BTU/Hr, it is equipped with built-in WiFi powered by SmartHQ for optimized performance and real-time feedback. It is ADA compliant.

• ADA Compliant and equipped with built-in WiFi, powered by SmartHQ.
• Features a DC Inverter Driven Rotary Compressor and R454B Refrigerant.
• Provides a heating temperature range of -31 to 75°F and 12,000 BTU/Hr cooling capacity.

Product Highlights

Single-zone outdoor heat pump with base pan heater and smart home integration.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1G12ED2BEA

Technical Specifications

• Color: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: GS12WP2BEA, US12CB2BEA, US12FB2BEA, US12MB2BEA
• Connections: Flare
• Factory Charge (ounces): 50.1
• Maximum Fuse Size: 20 A
• Maximum Height: 33 ft / 10 m
• Maximum Line Length: 66 ft / 20 m
• Noise Level: 55 dB
• System Type: Single Zone
• Refrigerant Type: R454B
• Compressor Type: DC Inverter Driven Rotary
• Series: Endure
• Style: Outdoor
• System: 12K Endure
• Heating Temperature Range: -31-75°F (-35-24°C)
• Unit Type: Outdoor
• Cooling Capacity: 12,000 BTU/Hr
• Minimum Circuit Amperage: 14 A
• Voltage/Frequency/Phase: 208-230V/60Hz/1 Phase
• Liquid Refrigerant Line O.D.: 1/4"
• Suction Refrigerant Line O.D.: 3/8"
