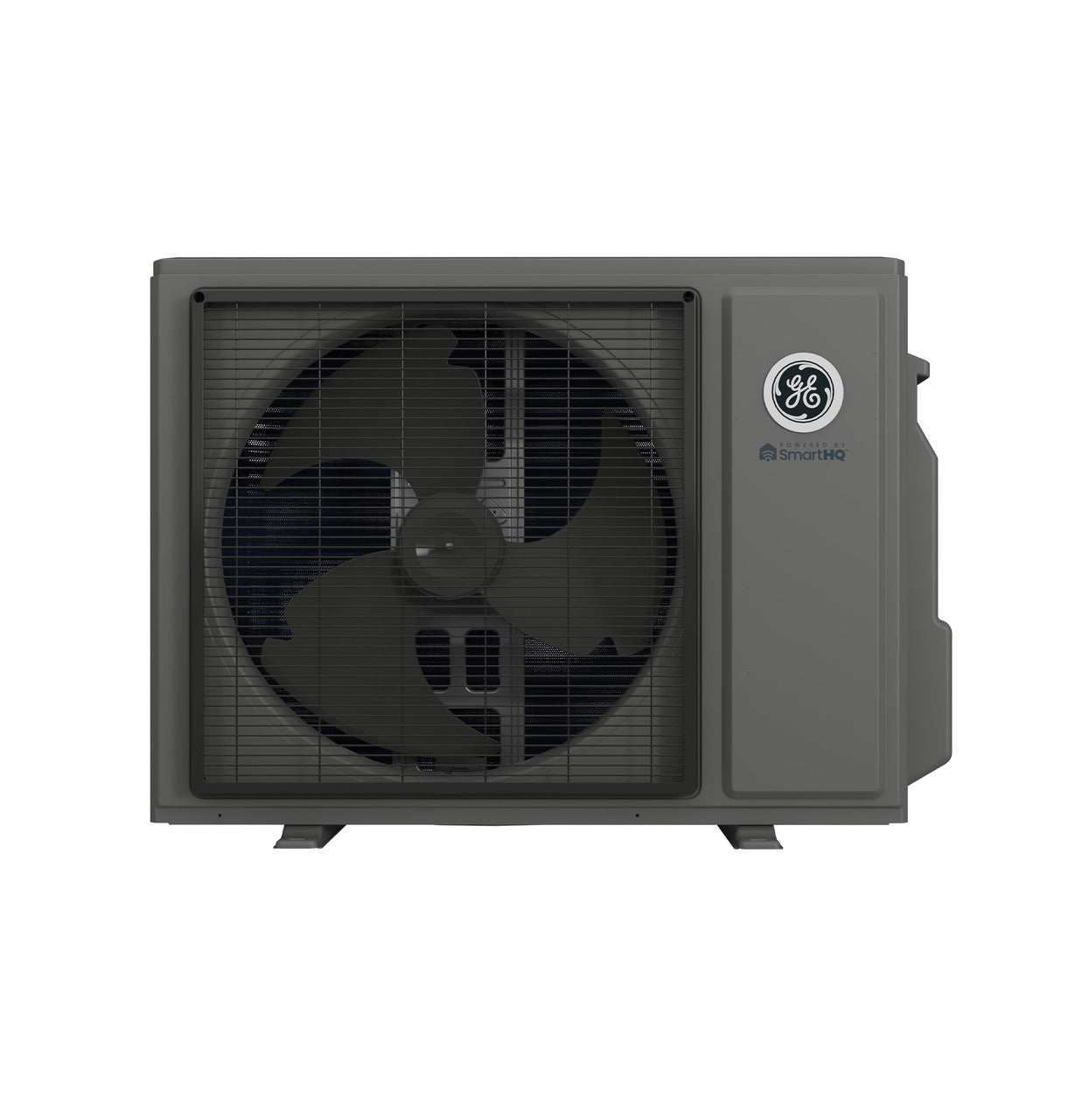

General Electric 1G09ED2BEA Endure Series Ductless Mini-Split Outdoor Heat Pump 208-230V 9,000 BTU

Product Description

The GENERAL ELECTRIC 1G09ED2BEA is an Endure Series 208-230V 9,000 BTU Ductless Mini-Split Outdoor Heat Pump. This single-zone outdoor unit features a DC Inverter Driven Rotary compressor and uses R454B refrigerant. It provides 9,000 BTU/Hr cooling capacity and 10,000 BTU/H heating capacity, operating efficiently in temperatures down to -31°F. Designed for flare connections, it has a maximum fuse size of 20 Amp and a minimum circuit amperage of 13 Amp.

• Built-in Wifi, Powered by SmartHQ™ for real-time feedback and optimized performance.
• Features a DC Inverter Rotary compressor and Basepan Heater for reliable operation.
• Offers low ambient heating capability down to -31°F (-35°C).

Product Highlights

This single-zone outdoor heat pump offers efficient cooling and heating with smart connectivity and a robust DC inverter rotary compressor.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 1G09ED2BEA

Technical Specifications

• Color Appearance: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: GS09WP2BEA, US09FB2BEA, US09CB2BEA, US09MB2BEA
• Refrigerant Connection Method: Flare
• Factory Charge: 46.6 ounces
• Maximum Fuse Size: 20 Amp
• Maximum Height: 33 Ft / 10 m
• Maximum Line Length: 66 Ft / 20 m
• Outdoor Noise Level: 54 dB-A
• Product Type: Single Zone
• Refrigerant Type: R454B
• Compressor Type: DC Inverter Driven Rotary
• Series: Endure
• Style: Outdoor
• System: 9K Endure
• Heating Temperature Range: -31-75°F (-35-24°C)
• Unit Type: Outdoor
• Cooling Capacity: 9,000 BTU/Hr
• Minimum Circuit Amperage: 13 Amp
• Input Voltage/Frequency/Phase: 208-230V/60Hz/1 Phase
• Liquid Refrigerant Line O.D.: 1/4 inch
• Suction Refrigerant Line O.D.: 3/8 inch
• Certifications: cETLus Listed, AHRI Certified
• Heating Capacity: 10,000 BTU/H
• UPC: 084691966616
• Cooling Operating Range: 23~115°F (-5~46°C)
• Operating Voltage Range: 187-253 VAC
• Cooling Capacity Range: 3,200~10,000 Btu/hr
• SEER2 / EER2: 27.0/12.5
• Rated Cooling Power Input: 720 W
• Moisture Removal Rate: 2.3 Pt./hr.
• Heating Capacity Range: 3,600~12,000 Btu/hr
• COP at 5°F: 1.8
• HSPF2 (IV) / HSPF2 (V): 11/8
• Rated Heating Power Input: 792 W
• WiFi Connectivity: Built-in
• Factory-Installed RDS: No
• RDS Compatible: Yes
