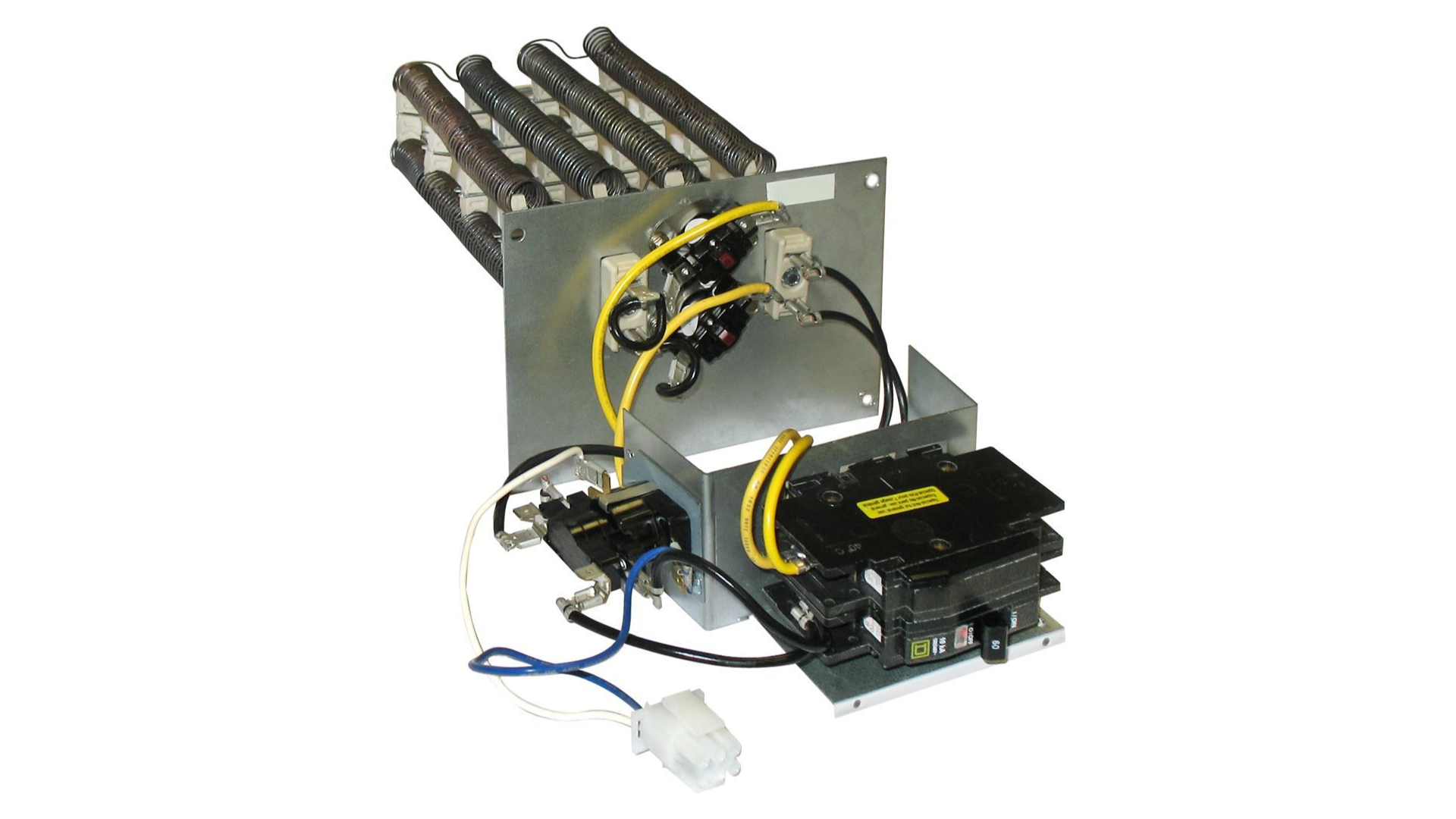

General Electric 16Y46 20 Kw Electric Heat Kit with Breaker

Product Description

The GENERAL ELECTRIC 16Y46 is a 20 kW electric heat kit with an integrated circuit breaker, designed for use in forced-air heating applications within compatible air handler systems. The kit includes the ECBA25-20CB circuit breaker, providing overcurrent protection as part of the assembly. This type of electric heat kit installs inside the air handler cabinet and supplements or replaces existing heating elements. Installation is typically performed by a licensed HVAC technician familiar with electric heating systems and applicable local codes.

This heat kit is designed exclusively for use with NAM P1, T1, and V1 series air handlers. It is suited for residential and light commercial applications where electric resistance heat is the primary or supplemental heat source. The ECBA25-20CB circuit breaker is included and must be used as part of this installation. Do not attempt to use this kit on air handler models outside the NAM P1, T1, and V1 series designations.

Key Features

• 20 kW electric heat output for forced-air heating in compatible air handlers
• Includes ECBA25-20CB circuit breaker for integrated overcurrent protection
• Designed exclusively for NAM P1, T1, and V1 series air handlers
• Drop-in kit format suited for OEM-style replacement or new installation

Compatibility

For use only on NAM P1, T1, and V1 series air handlers, as specified by the manufacturer. The included circuit breaker is the ECBA25-20CB. Do not install this kit on air handler models outside these designated series.

Installation Notes

Installation must be performed by a qualified HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all electrical power to the air handler before beginning any service or installation work. Verify that the air handler model is within the approved NAM P1, T1, or V1 series before installing this kit. Do not bypass or substitute the included ECBA25-20CB circuit breaker.

Technical Specifications

• Heating Capacity: 20 kW
• Included Circuit Breaker: ECBA25-20CB
• Dimensions (L x W x H): 70.5 inches x 11.38 inches x 6.5 inches
• Weight: 6 pounds

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: 16Y46
