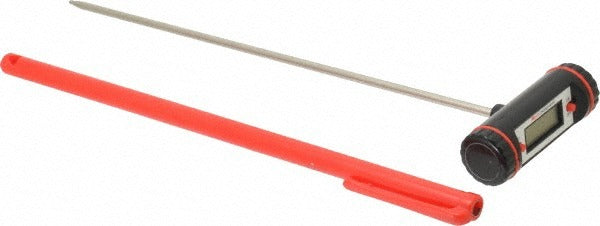

General DT520TH Digital Panel Thermometer 536F Thermistor

Product Description

The GENERAL DT520TH is a digital panel thermometer designed for trade and field technicians who need fast, accurate temperature readings without a bulky instrument. It uses a thermistor sensor input and displays readings on a backlit LCD screen, covering a measurement range from -50 degrees C up to 536 degrees F. Powered by a single LR44 battery included in the package, the unit is self-contained and ready to use out of the box. Accuracy is rated at plus or minus 2 degrees, making it appropriate for diagnostic and monitoring applications across HVAC, refrigeration, and mechanical service work.

This thermometer is suited for panel mounting in residential and light commercial environments where a compact, battery-powered temperature display is needed. HVAC technicians and mechanical service pros commonly use panel thermometers like the DT520TH for duct temperature monitoring, equipment enclosure readings, and process temperature checks. Its thermistor-based sensor input makes it compatible with standard NTC thermistor probes used in most HVAC and refrigeration diagnostic setups.

Key Features

• Thermistor sensor input for fast thermal response
• LCD display for clear readings in variable lighting conditions
• Wide measurement range: -50 degrees C to 536 degrees F
• Accuracy rated at plus or minus 2 degrees
• Battery powered with one LR44 battery included — no external power source required
• Compact panel-mount form factor suitable for equipment enclosures and control panels

Compatibility

Designed as an OEM-style panel thermometer for use with standard thermistor sensor inputs in residential and light commercial HVAC, refrigeration, and mechanical service applications.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified mechanical service professional. Power down the equipment or circuit being monitored before mounting the thermometer in the panel cutout. Ensure the thermistor probe is routed and secured away from moving parts, sharp edges, and heat sources that could affect accuracy or damage the sensor lead. Follow applicable local codes and manufacturer guidelines for panel-mounted instrumentation.
