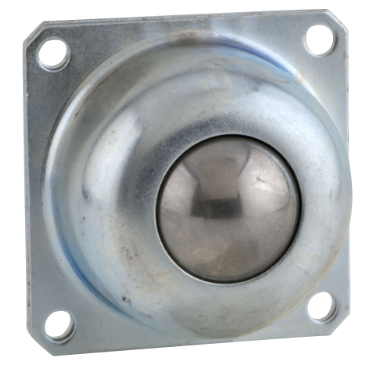

General Bearing 4260-01 4260 Series Ball Transfer

Product Description

This General Bearing 4260-01 is a reliable 4260 Series Ball Transfer designed to facilitate movement in various applications. The ball transfer features a one and a half-inch diameter main ball with a molded nylon seal and rotates on three sixteen-inch hardened support balls within a precision-formed cup. It is intended for ball-up mounting only and includes a four-bolt flange for simple installation and field replacement. The load rating is two hundred fifty pounds.

• Base mounted design
• Four bolt flange for easy installation
• Hardened steel construction for durability

Product Highlights

This ball transfer is well-suited for various applications including atomic research equipment, air cargo, ball tables, and conveyor transfer points.

Product Information

Standard Information

• Brand: General Bearing
• Part #: 102057500

Technical Specifications

• Bolt Hole Spacing: 2 15/32 in
• Height: 1 13/16 in
• Style: Base Mounted
• Bolt Holes: 4-Bolt
• Width: 3 in
• Material: Carbon Steel
• Ball Diameter: 1 1/2 in
• Length: 3 in
• Load Rating: 250 lb
• Weight: 1.125 lb
• EAN or UPC: 662300330609
