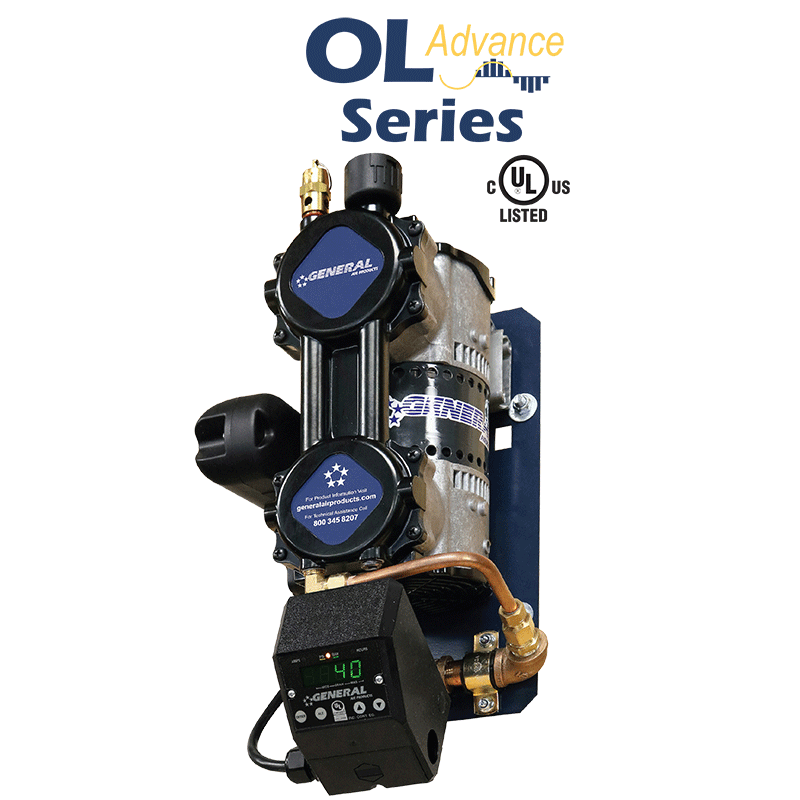

General Air Products OLRV12016AC Oil-Less Riser Mount Advance Series Compressor 1/6 HP

Product Description

The GENERAL AIR PRODUCTS OLRV12016AC is an oil-less riser mount air compressor from the Advance Series, designed for use in dry pipe and pre-action fire sprinkler systems. It features a UL 508 Listed digital pressure switch that displays pressure readings, run hours, amps, and cycles, and allows for easy adjustment of pressure settings. It is designed to fill systems to supervisory pressure within 30 minutes per NFPA 13.

• Oil-Less Riser Mount Air Compressors
• Digital Pressure Switch
• For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems

Product Highlights

This compressor features a UL 508 Listed digital pressure switch and is designed for use in fire sprinkler systems.

Product Information

Standard Information

• Brand: GENERAL AIR PRODUCTS
• Manufacturer Part Number: OLRV12016AC

Technical Specifications

• SKU: OLRV12016AC
• System Capacity @ 40 PSI: 120 gallons
• System Capacity @ 18 PSI: 320 gallons
• Average CFM: 1.46
• Motor HP: 1/6
• Phase: Single
• Available Voltages: 115v, 208-230v
• In-head Safety Relief Valve: 1/4″ 125 psi – Part Number VS3T25125
• Check Valve: 3/8″x1/2″ Check Valve – Part Number VCLSS3812
• Manufacturer: General Air Products
• Brand: General Air Products
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
• Model Number: OLRV12016AC
• System Capacity (gal) @ 40 PSI: 120
• System Capacity (gal) @ 18 PSI: 320
• Height: 15.31 in
• Horsepower: 1/6 hp
• Length: 9.17 in
• Pressure - Maximum: 40 psi
• UL Listed: UL 1450
• Volts: 115/208/230V
• Width: 8.05 in
