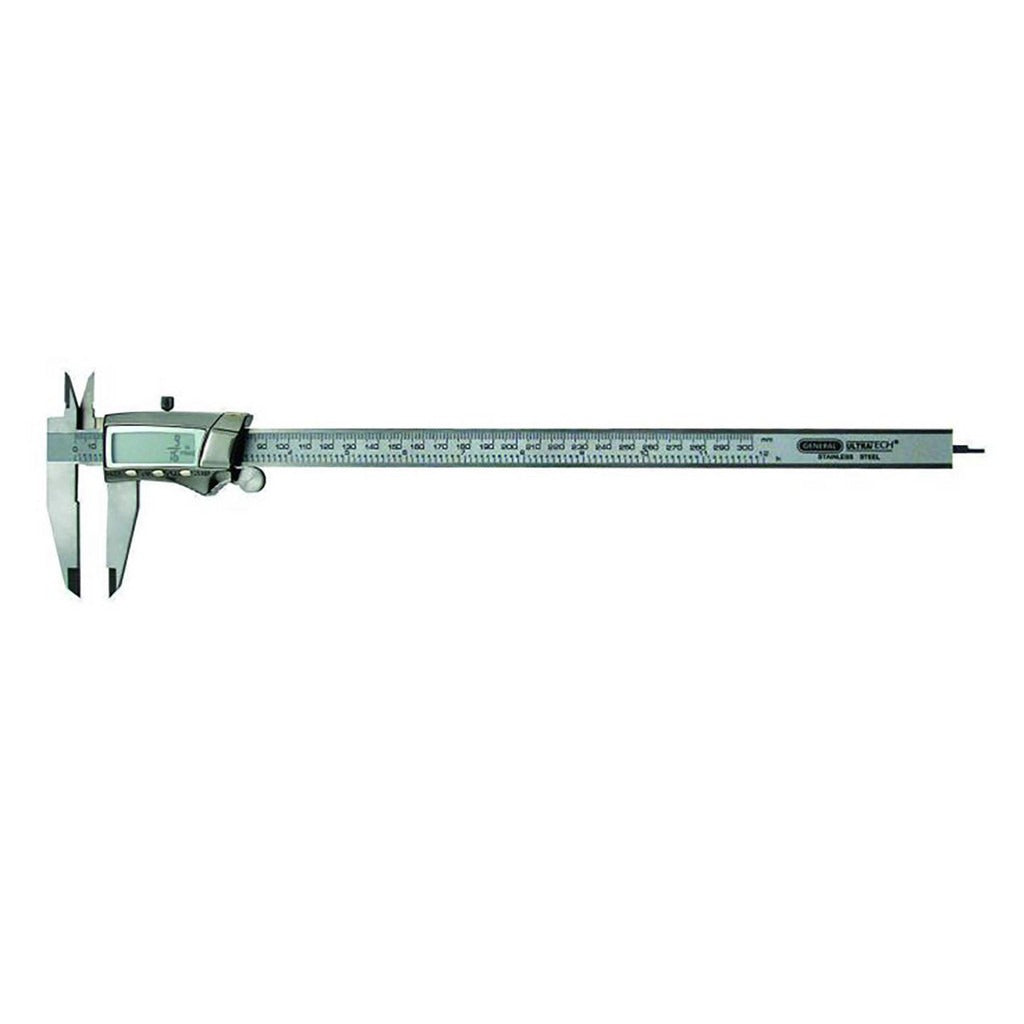

General 14712 Electronic Digital Caliper 12 Inch

Product Description

The GENERAL 14712 is a stainless steel electronic digital caliper designed for precision dimensional measurement in trade and industrial applications. With a maximum measurement range of 12 inches (305 mm), a resolution of 0.016 inches, and an accuracy of 0.001 inches, it delivers reliable readings across four measurement modes: outside diameter, inside diameter, depth, and step. The stainless steel body and knife-edge jaws hold up in shop environments. Jaw adjustment is handled by a thumb wheel for fine, controlled positioning. Power comes from an included SR44 silver oxide battery.

This caliper is suited for HVAC technicians, plumbers, pipefitters, machinists, and maintenance trades who need accurate field or bench measurements of pipe diameters, fittings, component dimensions, and step depths. The inside diameter jaws and depth rod extend its usefulness across a wide range of measurement tasks without switching tools. It ships with a protective case and battery, ready for immediate use on the job or in the shop. The Fraction+ series designation indicates compatibility with fractional readout capability in addition to decimal inch and millimeter modes.

Key Features

• 12-inch (305 mm) maximum measurement range covers most common trade applications
• 0.001-inch accuracy and 0.016-inch resolution for precise readings
• Stainless steel body and knife-edge jaws for durability in shop and field use
• Four measurement modes: outside diameter, inside diameter, depth, and step
• Includes dedicated inside diameter jaws and depth measurement rod
• Thumb wheel jaw adjustment for fine, controlled movement
• SR44 silver oxide battery and protective case included

Compatibility

Designed as a general-purpose electronic caliper suitable for trade, industrial, and maintenance measurement applications requiring up to 12 inches of range.

Installation Notes

No installation is required for this measuring instrument. Insert the included SR44 battery before first use and verify the caliper zeroes correctly at closed position before taking measurements. Keep the measuring faces and jaws clean and free of debris to maintain accuracy. Store in the included case when not in use to protect the measuring surfaces.
