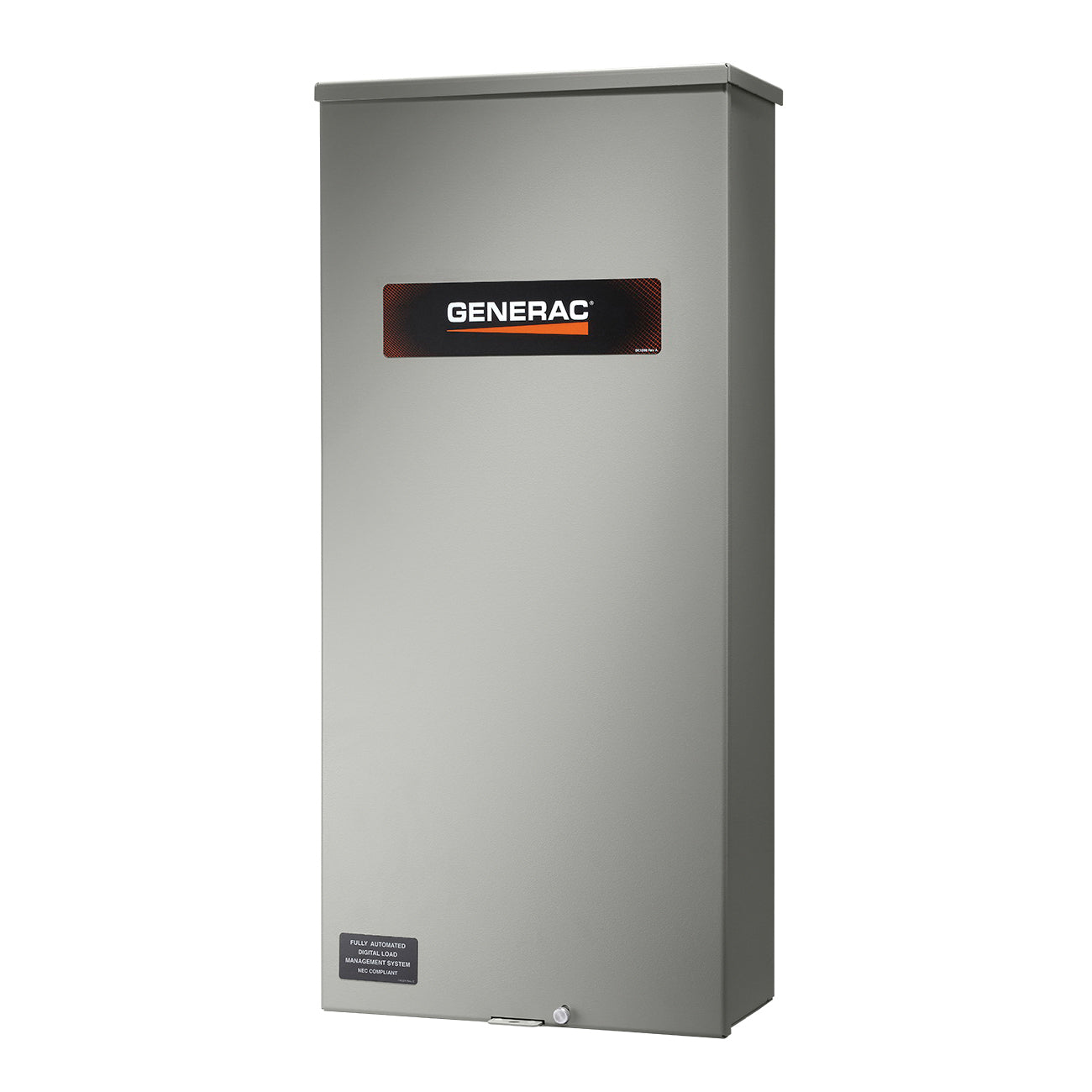

Generac RXSW150A3 Automatic Smart Transfer Switch w/ Power Management (150-Amp) NEMA 3R

Product Description

The Generac RXSW150A3 is an automatic smart transfer switch designed for seamless transfer of power from the utility to the generator. This switch operates at 150 amps and works with both Generac Evolution and Nexus controllers. It ensures reliable load management for homes with multiple HVAC systems, providing automatic operation when utility power fails.

• Rated for up to 36,000 watts.
• Supports up to four individual HVAC loads without additional hardware.
• Durable aluminum enclosure for indoor and outdoor use.

Product Highlights

This switch features open transition technology that prevents electrical feedback, which is essential for safety and compliance in backup power installations.

Product Information

Standard Information

• Brand: Generac
• MPN: RXSW150A3

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 120/240 V
• Power Rating: 36,000 W
• Enclosure Type: NEMA 3R
• Weight: 39 lbs
• Dimensions: 30 in height, 13.5 in width, 6.3 in depth
• Certifications: UL Listed
