Product Description

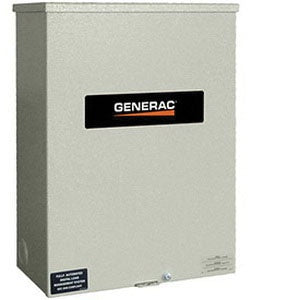

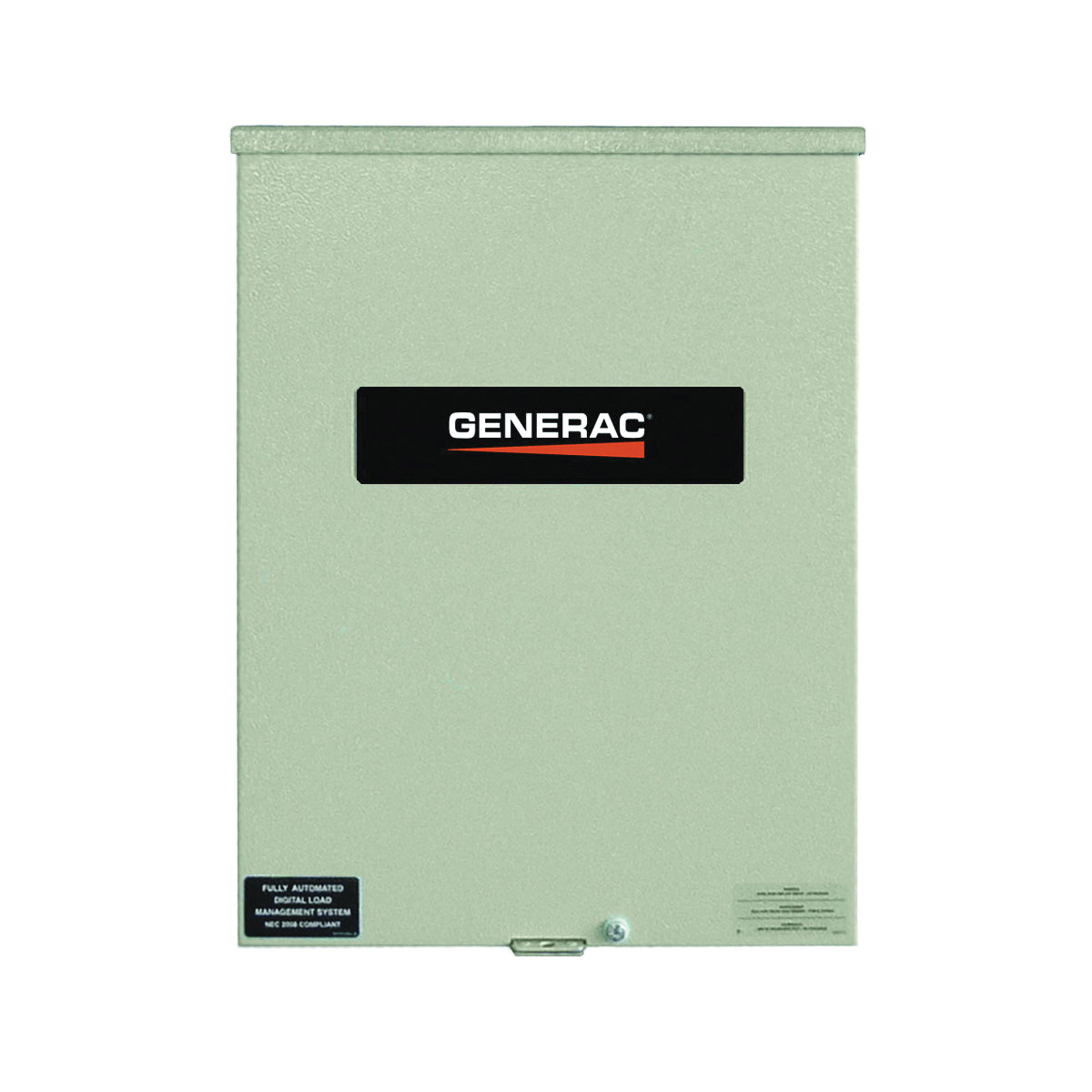

This is the Generac RXSW100A3, a 100-amp automatic smart transfer switch. It allows for the automatic transfer of electrical loads from a utility power source to a generator power source. This transfer switch is compatible with Generac Evolution generators and uses Digital Power Management Technology (DPM) to optimize generator operation. It manages up to four HVAC twenty-four volt electrical loads without additional hardware. The switch monitors selected circuits and automatically supplies power as needed. Additionally, it supports the Smart Management Modules (SMM) for managing more loads effectively.
- Service entrance rated for installation between the main meter and service panel.
- NEMA three R rated, suitable for outdoor or indoor use.
- Aluminum construction with electrostatically applied and baked powder paint for extra durability.
Product Highlights
This transfer switch simplifies the process of maintaining power during outages.
Product Information
Standard Information
-
Application: Automatic Transfer Switch
-
Construction Material: Aluminum
Technical Specifications
-
Amperage Rating: 100 A
-
Voltage Rating: 120/240 V
-
Power Rating: 24000 W
-
Enclosure Rating: NEMA 3R
-
Height: 20 inches
-
Width: 14.6 inches
-
Depth: 7.09 inches
-
Number of Phases: 1
-
Warranty: 5 Years
