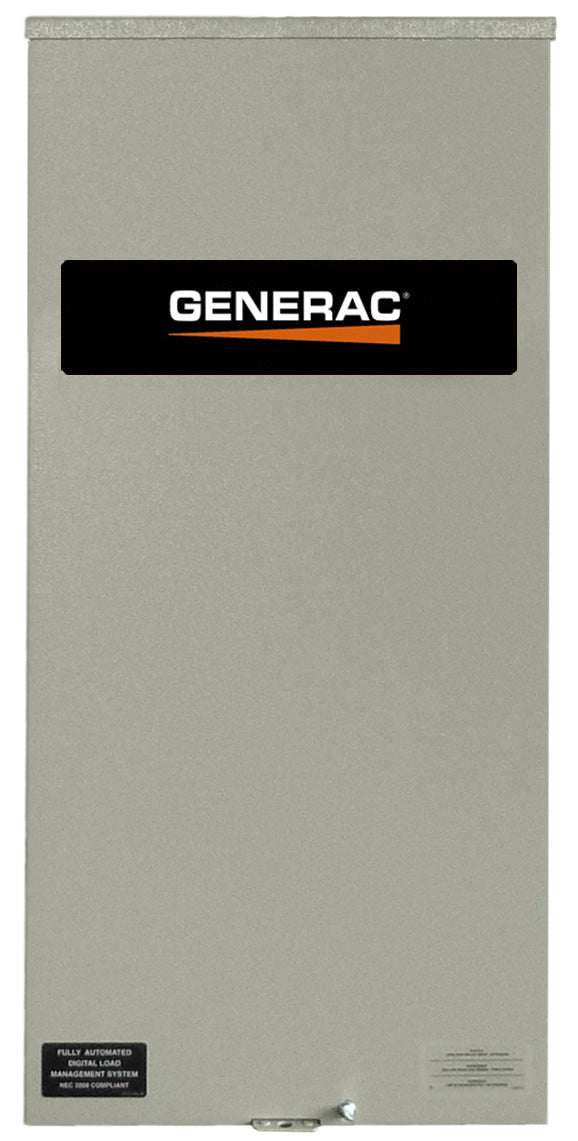

Generac RXSC200A3 Automatic Smart Transfer Switch with Power Management, 120/240 V, 200 A, 48000 W Power Rating, 1 Phase, NEMA 3R

Product Description

The Generac 200-Amp Automatic Smart Transfer Switch, model RXSC200A3, is designed for effective power management with generators. This transfer switch is compatible with Evolution or Nexus generator controllers and supports standard installation. It requires a sub-panel for overload protection and features Digital Power Management Technology (DPM), which optimizes generator operation.

• Manage up to four individual HVAC loads without additional hardware.
• Supports up to eight Smart Management Modules (SMM) sold separately.
• NEMA 3R rated, suitable for indoor and outdoor installation.

Product Highlights

This automatic transfer switch is suitable for homeowners using Generac generators. Its design allows for power cycling to essential appliances, enhancing efficiency and energy use.

Product Information

Standard Information

• Brand: Generac
• MPN: RXSC200A3

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 V
• Power Rating: 48000 W
• Enclosure Type: NEMA 3R
• Height: 20 in
• Width: 14.6 in
• Depth: 7.09 in
• Material: Steel
• Series: RXS
• Phase: 1
• UL Listed: Yes
• Warranty: 5 Years
