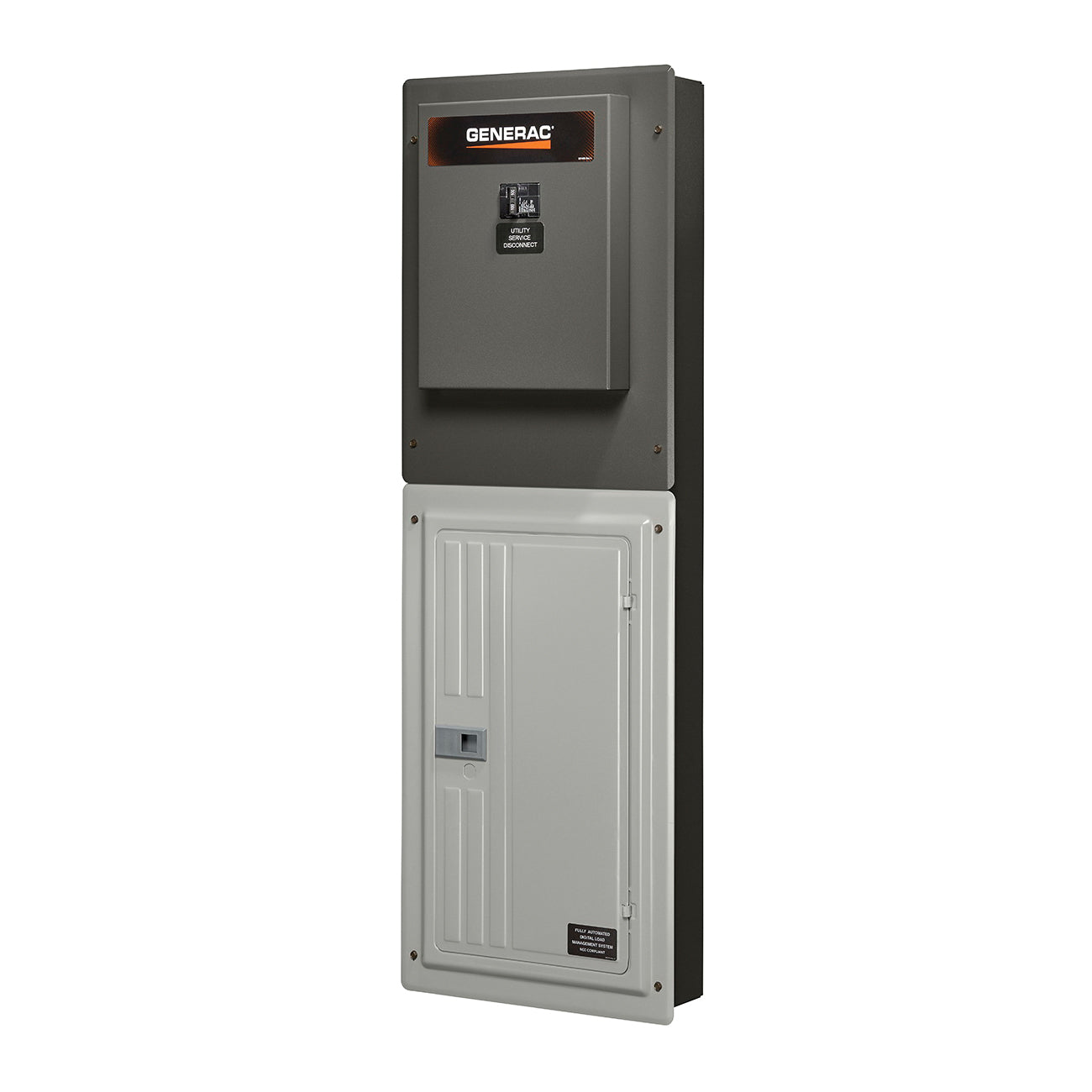

Generac RXG24SHA1 Whole House Transfer Switch and Load Center 100-Amp

Product Description

The Generac RXG24SHA1 is a 100-amp GenReady Automatic Transfer Switch and Load Center designed for seamless integration with standby generators. This product supports single-phase operations and features a main circuit breaker rating of 100 amps.

• Ideal for new construction or panel renovations
• Compatible with Evolution and Nexus generator controllers
• Manage up to four HVAC loads without additional hardware

Product Highlights

The RXG24SHA1 simplifies the installation process and provides flexibility for transferring power between utility and generator sources. Its Digital Power Management Technology enables efficient load management for homes with multiple HVAC systems.

Product Information

Standard Information

• Brand: Generac
• MPN: RXG24SHA1

Technical Specifications

• Voltage: 120/240 V
• Amperage Rating: 100 A
• Frequency: 60 Hz
• Enclosure Type: NEMA 1
• Depth: 14.36 inches
• Width: 4.84 inches
• Height: 45.13 inches
• Material: Steel
• UL Listed: Yes
• Warranty: 5 Years
