Product Description

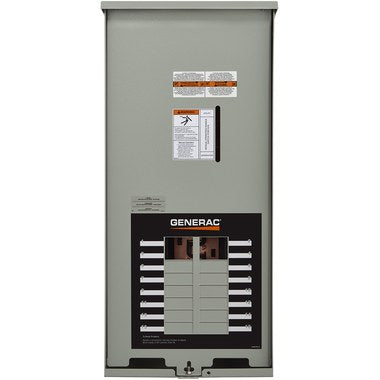

The Generac RXG16EZA3 is a 100-amp outdoor automatic transfer switch designed for use with Generac air-cooled generators. This transfer switch includes a 16-circuit integrated load center for essential circuit backup. It is ideal for large main service areas or when the main electrical panel is situated outdoors.
- Compatible with Generac air-cooled generators rated from 7 to 16 kilowatts
- Expandable to a total of 24 circuits with included 16-circuit breaker panel
- Constructed from durable aluminum with NEMA 3R rating for outdoor use
Product Highlights
Reliable automatic switching between utility and generator power, preventing interruptions during outages.
Product Information
Standard Information
-
Brand: Generac
-
MPN: RXG16EZA3
Technical Specifications
-
Power Rating: 16000 Watts
-
Amperage Rating: 100 Amps
-
Voltage Rating: 120/240 V
-
Enclosure Type: NEMA 3R
-
Dimensions: 30.1 inches (Length) x 13.5 inches (Width) x 6.91 inches (Height)
-
Weight: 39 Pounds
-
Standards/Approvals: UL Listed, cUL Listed
-
Warranty: 5 Years
