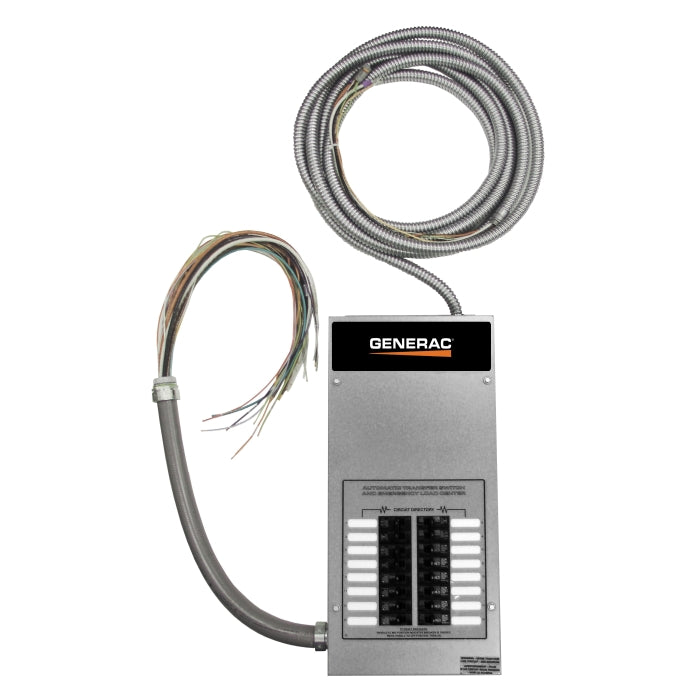

Generac RXG16EZA1 Automatic Pre-Wired Transfer Switch 24000 W 100 A 120/240 V

Product Description

The Generac RXG16EZA1 is an automatic pre-wired transfer switch designed for use with 9 to 16 kW air-cooled generators. This transfer switch includes a built-in load center to manage essential circuits during emergencies. It is particularly beneficial for large service areas where only a part of the load is supported by the generator. Equipped with a 16-circuit load center, it ensures that only the critical circuits remain powered in case of power failure.

• Designed for 9 to 16 kW air-cooled generators
• Includes a 16-circuit load center
• Suitable for large service areas

Product Highlights

This transfer switch is CUL Listed, confirming its suitability for optional standby systems. It aids in seamless transition during power outages, providing necessary power to key circuits.

Product Information

Standard Information

• Brand: Generac
• Manufacturer Part Number: RXG16EZA1

Technical Specifications

• Voltage Rating: 120/240 V
• Power Rating: 24000 W
• Amperage Rating: 100 A
• Number of Phases: 1
• Enclosure Type: NEMA 1
• Finish: Electrostatic Baked Powder Painted
• Material: Steel
• Width: 13 in
• Height: 7 in
