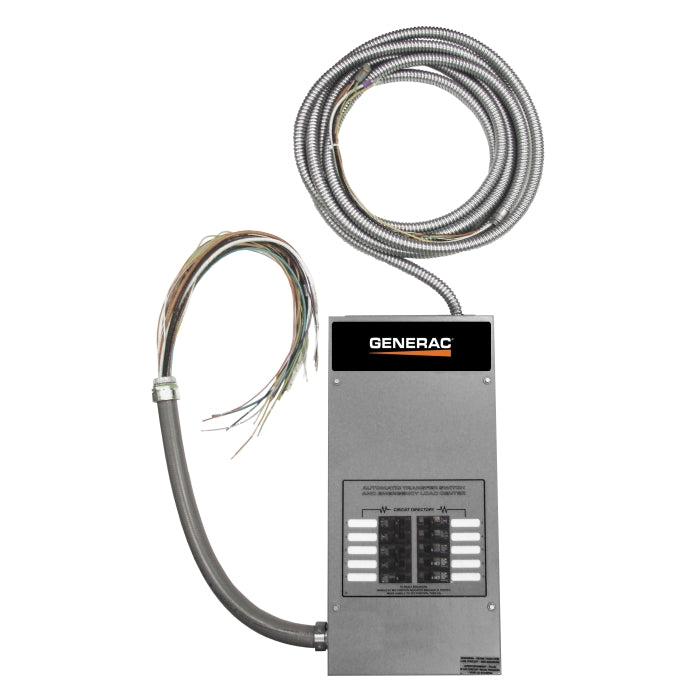

Generac RXG10EZA1 Automatic Pre-Wired Transfer Switch With 10-Circuit Load Center, 120/240 V, 50 A, 12000 W

Product Description

The Generac RXG10EZA1 is an automatic pre-wired transfer switch suitable for use with 9 to 16 kW air-cooled generators. This unit includes an integrated load center that allows for the management of emergency circuits effectively. It is particularly beneficial in situations where a significant portion of the load will be supported by the generator while maintaining functionality of essential circuits during outages.

• Integrated load center for emergency circuits
• Suitable for 9 to 16 kW generators
• CUL Listed for optional standby systems

Product Highlights

This transfer switch operates at 120/240 volts, with a power rating of 12000 watts and a 50 amp capacity. It features a NEMA 1 enclosure, which is designed for indoor use and is constructed of steel, ensuring durability in operation.

Product Information

Standard Information

• Brand: Generac
• Manufacturer Part Number: RXG10EZA1

Technical Specifications

• Voltage Rating: 120/240 V
• Power Rating: 12000 W
• Amperage Rating: 50 A
• Number of Phases: 1
• Enclosure Type: NEMA 1
• Width: 15.4 in
• Height: 3.8 in
• Material: Steel
