Generac Power Systems 9855 HomeLink Manual Transfer Switch 50 Amp 16 Circuits

Product Description

The GENERAC POWER SYSTEMS 9855 HomeLink Upgradeable Manual Transfer Switch is designed for easy installation, expansion, and maintenance. Compatible with portable generators featuring GFCI outlets, it can power hard-wired loads like furnaces and well pumps. It features an electronic rocker button for seamless switching between utility and generator power. It can be upgraded for automatic functionality with home standby generators up to 11 kW.

• Safe: Prevents dangerous back-feeding to avoid injuring utility line workers.
• Versatile: Can be upgraded later for use with a Generac home standby generator (max 11 kW).
• Universal: Compatible with any portable generator with GFCI protected outlets.

Product Highlights

This manual transfer switch is pre-wired for easy installation and features indicator lights for power status. Interchangeable circuit breakers simplify reconfiguration and expansion.

Product Information

Standard Information

• Brand: GENERAC POWER SYSTEMS
• Manufacturer Part Number: 9855
• Country of Origin: Egyesült Államok

Technical Specifications

• Amperage Rating: 50 A
• Breaker Type: GFCI
• Enclosure Type: NEMA 1
• Number of Circuits: 16
• Power Rating: 12000 W
• Type: Manual
• Voltage Rating: 120/240 V
• Application: For portable generator

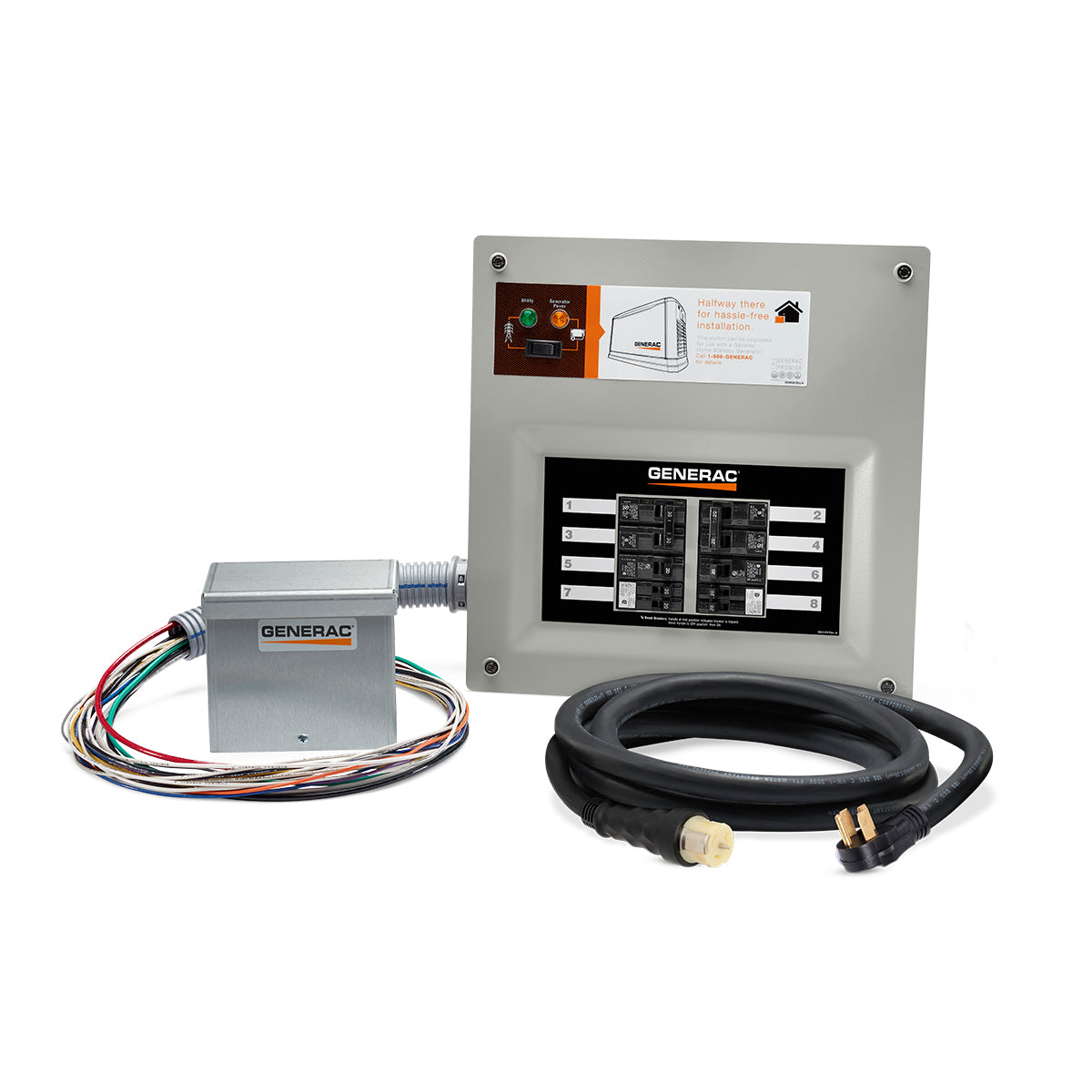

• Includes: (1) 30 A/20 A 2-Pole/(2) 20 A 1-Pole Breaker, (2) 20 A 1-Pole Tandem Breaker, Transfer Switch, 10 ft Cord with CS6365 Female and 14-50 Male Ends, 50 A Aluminum Power Inlet Box, Install Manual, Wiring Harness, Conduit with Fittings and Pre-Wired
• Standards/Approvals: cETL Listed|UL Listed
• Model: G0098550
• Max Amps @240V: 50
• Included Breakers: 1-30 Amp 2-pole, 1-20 Amp 2-pole, 2-20 Amp 1-pole, 2-20 Amp 1-pole tandem
• Compatible with: Portable generators with a 50-Amp 14-50R receptacle
• Power Inlet Box: 50 Amp aluminum (must be hardwired)
• Current Rating: 50 Amps
• Operating Voltage: 240 Volts
• Switch Type: Rocker
• Material: Metal
• Circuit Type: 16-way
• Actuator Type: Push Button
• Contact Material: Stainless Steel
• International Protection Rating: IP00
• Number of Positions: 16
• Voltage: 120/240V
• Frequency: 60hz
• Rated Watts: 12000 Watts
• Rated Amps: 50 Amps
• Enclosure: NEMA 1R
• Transfer Switch Circuits 20A 120V: 4
• Transfer Switch Circuits 20A 240V: 1
• Transfer Switch Circuits 30A 240V: 1
• Circuit Breaker Protection: Each Circuit
• Plugs: CS636 - 50 amp Twist Lock
• Plugs Quantity: 1
• MPN: 9855
• UPC: 0696471071498
• GTIN: 0696471071498
• eBay Product ID (ePID): 10026410116
