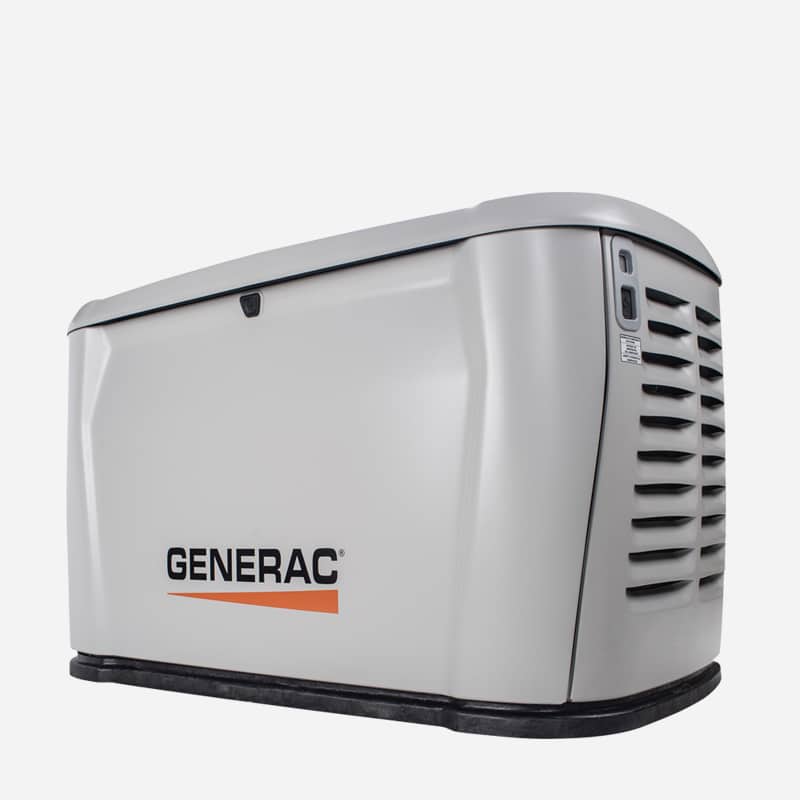

Generac G007261 24kW Air Cool Generator Wifi Factory Install,Lp/Ng,120/240V

Product Description

The Generac G007261 standby generator comes with free MobileLink, operating at 24kW, 240V, 100 amp, and 60 Hz. This generator is designed to automatically restore power during outages, keeping homes comfortable and protected. It runs on either liquid propane or natural gas and is suitable for whole-home backup power. It features advanced monitoring and a durable, sound-attenuated enclosure.

• Electronic fuel & ignition control optimizes fuel use for cost-efficiency and lower emissions.
• Built-in Cellular Connectivity allows performance monitoring and generator control via Mobile Link.
• True Power Electrical Technology provides utility-quality electricity with less than 5% Total Harmonic Distortion (THD).

Product Highlights

This Generac standby generator provides automatic backup power, cleaner electricity, and remote monitoring for reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Generac
• Manufacturer Part Number: G007261
• Country of Origin: USA

Technical Specifications

• Manufacturer: Generac Power Systems
• Amperage Rating: 100 A
• Voltage Rating: 240 V
• Frequency Rating: 60 Hz
• Type: 24 kW, Cellular
• Length__: 46.4 Inch
• Width__: 26.3 Inch
• Height__: 30.7 Inch
• Fuel Type: Liquid Propane or Natural Gas
• Model: G0072610
• Oil Type: Check chart in manual
• Oil Capacity (qt): 2.2
• Battery Included: No
• Battery Type: Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum
• Battery Size: 12V
• Engine Type: G-Force 800
• Number of Cylinders: 2
• Mobile Link: Yes
• Quiet Test: Yes
• Controller Type: Evolution
• Enclosure: Aluminum (Metro Gray)
• Max. Cont. Power (LP): 18000 Watts
• Max. Cont. Power (NG): 17000 Watts
• Max. Cont. Amps - 240 volts (LP): 75
• Max. Cont. Amps - 240 volts (NG): 70.8
• Main Line Circuit Breaker (amp): 80
• NG Consumption - 50% (m3/hr): 4.79
• NG Consumption - 100% (m3/hr): 6.99
• LP Consumption - 50% (l/hr): 6.45
• LP Consumption - 100% (l/hr): 11.44
• Sound Output in 7m - Normal Load: 65 db
• Sound Output in 7m - Quiet Test: 55 db
• Rated maximum continuous power (LP): 24 kW
• Rated maximum continuous power (NG): 22.5 kW
• Rated voltage: 240V
• Phase: 1-phase
• Frequency: 60 Hz
• Power factor: 1.0
• Rotor poles: 2
• Rated maximum continuous load current @ 240V (LP / NG): 100A / 94A
• Main line circuit breaker (generator disconnect): 110A
• Total Harmonic Distortion (THD): < 5%
• Cylinders: 2
• Displacement: 997 cc
• Cylinder block: Aluminum with cast iron sleeve
• Valve train: Overhead valve (OHV)
• Lifters: Hydraulic
• Ignition: Solid-state
• Governor: Electronic
• Compression ratio: 10.1:1
• Starter: 12 VDC
• Operating RPM: 3,600
• Oil capacity (incl. filter): Approx. 2.2 qt (2.1 L)
