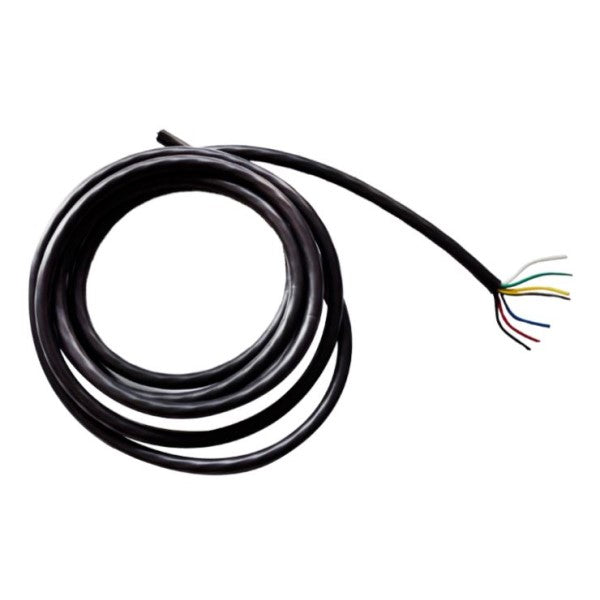

Generac CM-HSBCC-1807-250 7-Conductor Control Cable For Home Standby Generator, TC-ER

Product Description

The Generac CM-HSBCC-1807-250 is a seven-conductor control cable designed for use with home standby generators. This cable is suitable for installation in cable trays and raceways. It can also be supported by a messenger system. This robust cable is rated for a voltage not exceeding six hundred volts with maximum conductor temperatures of ninety degrees Celsius when dry and seventy-five degrees Celsius when wet. It is color coded to correspond with Generac’s home standby generator models ranging from seven kilowatts to one hundred fifty kilowatts.

• Direct burial application
• UL listed for safety
• Flame and sunlight resistant

Product Highlights

This control cable is essential for connecting a home standby generator to its control panel, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: Generac
• MPN: CM-HSBCC-1807-250

Technical Specifications

• Application: Direct Burial
• Color Code: 1 Yellow, 1 Black/Yellow, 1 Black, 1 Green, 1 Blue, 1 Red, 1 White
• Conductor Material: Bare Annealed Copper
• Conductors: TFFN PVC/Nylon
• Diameter: .360 in
• Insulation Thickness: 15/5 mil
• Jacket Material: PVC
• Jacket Thickness: 45 mil
• Legend: E106615 18 AWG TYPE TC-ER (UL) 90C 600V SUN RES DIR BUR
• Number of Conductors: 7
• Number of Strands: 16
• Size: 18 AWG
• Specifications: Flame and Sunlight Resistant
• Temperature Rating (Dry): 90 deg C
• Temperature Rating (Wet): 75 DEG C
• Voltage: 600 V
• Quantity: 1 ft.
