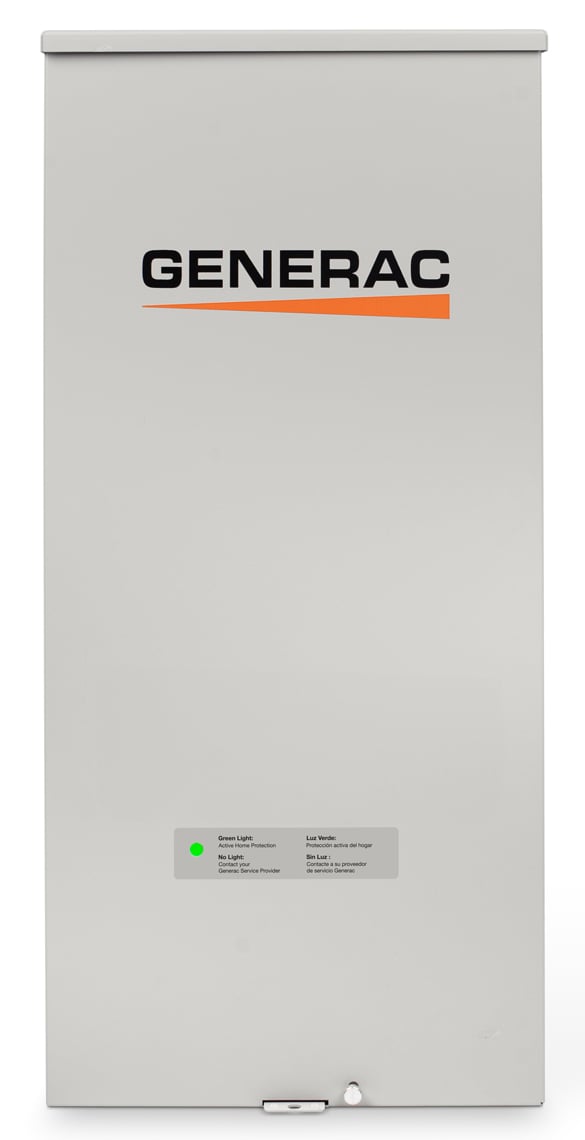

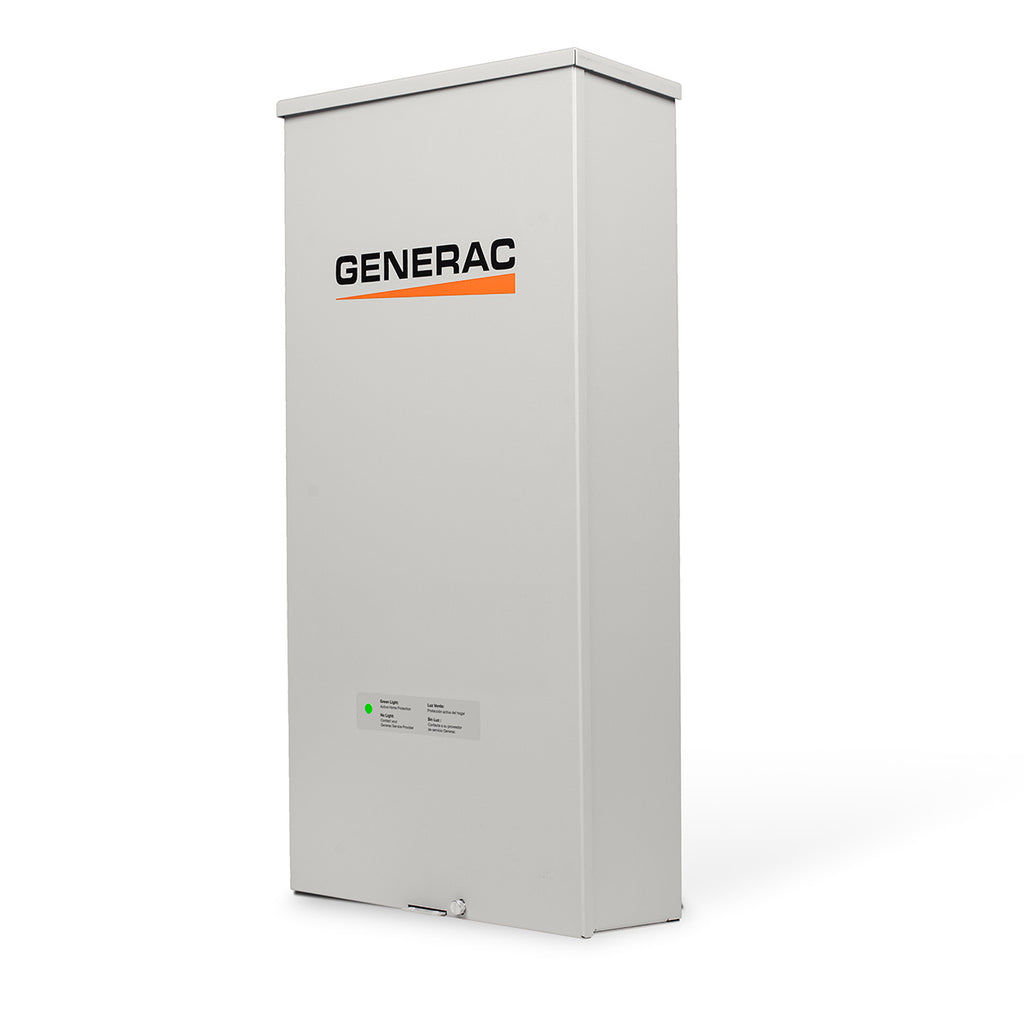

Generac 9954 Integrated Surge Protection (SPD), 150A Service Entrance Rated, Automatic Transfer Switch

Product Description

The GENERAC 9954 series automatic transfer switch is designed for use with single phase generators that utilize an Evolution™ or Power Zone™ 200 controller. It features a factory-installed whole-home surge protection device (SPD) protecting both your home and generator from damaging power surges. The hardened transfer switch control combats harmful utility power disturbances. NEMA 3R enclosure allows for indoor or outdoor installation.

• Features whole home integrated surge protection.
• Hardened transfer switch control combats harmful utility power disturbances.
• NEMA 3R outdoor rated enclosure protects internal components.

Product Highlights

Automatic transfer switch with integrated surge protection for home standby generators. Designed for reliability and protection against power disturbances.

Product Information

Standard Information

• Brand: GENERAC
• Manufacturer Part Number: 9954
• Country of Origin: USA

Technical Specifications

• Rated Amperage: 200
• Transfer Method: Automatic
• Service Entrance Rated: Yes
• Pre-Wired: Yes
• Load Shedding: Yes
• Whole House: Yes
• Product Length (in.): 13.5
• Product Width (in.): 6.5
• Product Height (in.): 30
• Voltage: 120, 240V
• Electrical Phases: 1
• Max Generator Input: 150A
• Max Utility Input: 150A
• Enclosure Material: NEMA 3R
• Certifications: ETL
• EPA Compliant: Yes
• Approved for Commercial Use: Yes
• Made in America: Yes
