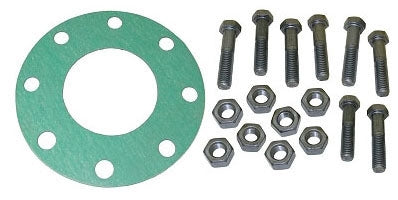

Gene Rich & Co. 1399F40 4, 1/16 Thick, 150 Lb, Non-Asbestos, Full Face, Flange Gasket Kit

Product Description

The Gene Rich & Co. 1399F40 is a full face flange gasket kit designed for use with a nominal pipe size of four inches. This gasket kit features a thickness of one-sixteenth inch and is suitable for applications requiring a pressure class of 150 pounds.

• Includes eight bolt holes for secure installation
• Made from non-asbestos material for safety
• Meets ASTM and ANSI standards

Product Highlights

This gasket kit is ideal for industrial applications where durability and compliance with standards are essential. It includes all necessary components for effective sealing in various piping systems.

Product Information

Standard Information

• Manufacturer: Gene Rich & Co.
• UPC: 61915401055

Technical Specifications

• Type: Full Face
• Nominal Pipe Size: 4 Inch
• Thickness: 1/16 Inch
• Number of Bolt Holes: 8
• Material: Non-Asbestos
• Pressure Class: 150 Pound
• Applicable Standards: ASTM F152/F36A, ANSI B16.21, D1170-P1141A, F104-F002120 M6
• Includes: (8) 5/8 Inch x 3 Inch Bolts
