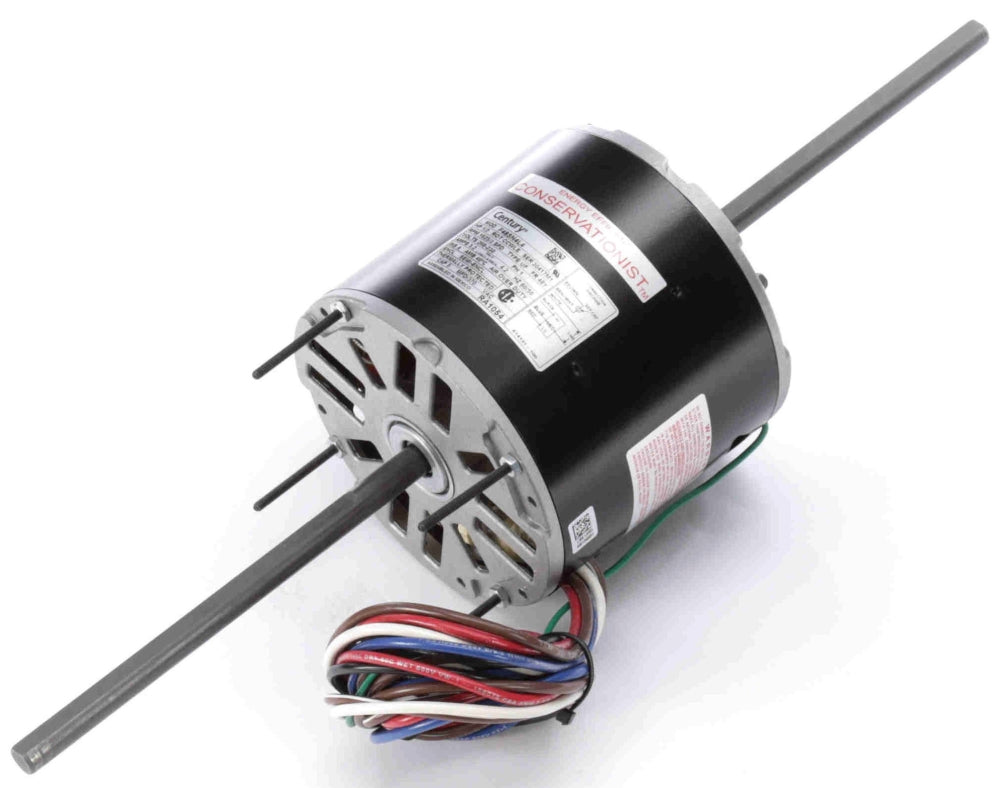

Gene Rich 1054 ASM RA1054 230V 1/2HP 1625-3 Motor Double Shaft Blower Motor

Product Description

The Gene Rich ASM RA1054 is a double shaft blower motor with a power rating of one half horsepower. This motor operates on a voltage rating of two hundred eight to two hundred thirty volts AC and is suitable for room air conditioners, fan coils, and blower applications.

• Features three speeds with a speed rating of one thousand six hundred twenty-five RPM.
• Built with a semi-enclosed air-over design.
• Meets UL and CSA approval for quality assurance.

Product Highlights

This motor is automatic thermally protected and designed for continuous duty. It offers energy-efficient operation and includes essential mounting accessories.

Product Information

Standard Information

• Brand: Gene Rich
• MPN: 1054

Technical Specifications

• Enclosure Type: Semi Enclosed, Air-Over
• Power Rating: 1/2 HP
• Voltage Rating: 208 to 230 Volt AC
• Motor FLA: 3.2 Amp
• Service Factor: 1
• Frame Size: 48Y
• Weight: 17 Pound
• Starting Method: Induction Run
